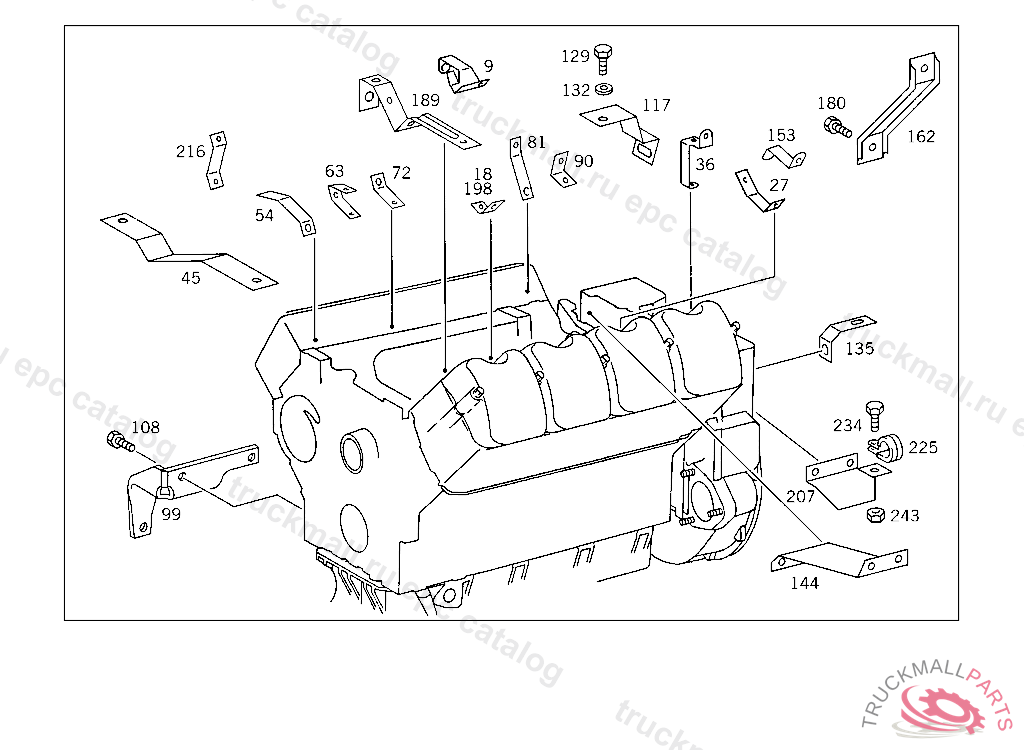

Поз.
Артикул
Описание
9
BRACKET COMPRESSED AIR LINE,FRONT,119803
18
ANGLE LINE MOUNTING
27
BRACKET
36
BRACKET
45
BRACKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3875015020
54
BRACKET
63
BRACKET
72
BRACKET , Replaced By: A3005010620
81
BRACKET FILLER NECK,4 400466
81
BRACKET , Replaced By: A3525010120
90
BRACKET CABLE HARNESS MOUNTING, TO BE ADAPTED DURING ASSEMBLY
90
BRACKET , Replaced By: A6205240340
90
BRACKET FUEL LINES TO TRANSMISSION
99
BRACKET PIPE BEND TO CYLINDER CRANKCASE
108
SCREW REAR SPRING BRACKET TO FRAME M 14X35
117
BRACKET HIGH PRESSURE LINE TO EXHAUST BRAKE BRACKET,006895
129
SCREW END PIECE TO EXHAUST PIPE M 10X25
132
WASHER RADIATOR TO RUBBER MOUNTING
135
BRACKET OIL LINE MOUNTING
135
BRACKET , Replaced By: A3764291040
135
BRACKET , Replaced By: A3464296040
144
BRACKET ENGINE LINKAGE SUPPORT,006894
144
BRACKET ,255752468985
153
BRACKET HEATING PIPE
153
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 152425, Replaced By: A6205061740
162
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 710657, Replaced By: A6454200686
162
BRACKET COMPRESSED AIR LINE,REAR
180
SCREW , Replaced By: N304017006016
180
SCREW PUMP TO BRACKET
189
BRACKET DE-AERATION PIPE TO ENGINE
189
BRACKET COMPRESSED AIR LINE TO INTAKE MANIFOLD, LEFT FRONT,160965
198
ANGLE LINE MOUNTING
207
BRACKET LINE MOUNTING
216
BRACKET TWO-WAY VALVE
225
CLAMP BATTERY CABLE TO CROSS MEMBER
234
SCREW BRACKET ON LOAD SENSOR
243
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
243
NUT , Replaced By: N913023006001
999
BRACKET FUEL LINE TO CHARGING AIR PIPE,733620
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET OIL LINE ON ENGINE SIDE
999
BRACKET , Replaced By: A6454310740
999
BRACKET INTAKE MANIFOLD,LEFT FRONT
999
BRACKET INTAKE MANIFOLD,LEFT REAR
999
BRACKET OIL LINES
999
BRACKET , Replaced By: A3524290740
999
BRACKET BRACKET TO LONGITUDINAL INTAKE PIPE,064377
999
BRACKET COMPRESSED AIR LINE,REAR
999
BRACKET FUEL LINE TO BELL HOUSING
999
BRACKET BRACKET TO INTAKE PIPE
999
WASHER TRANSMISSION TO INTERMEDIATE RING
999
WASHER , Replaced By: N000125010532
999
SCREW , Replaced By: N304017016011
999
SCREWM 16X25
999
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
