Поз.
Артикул
Описание

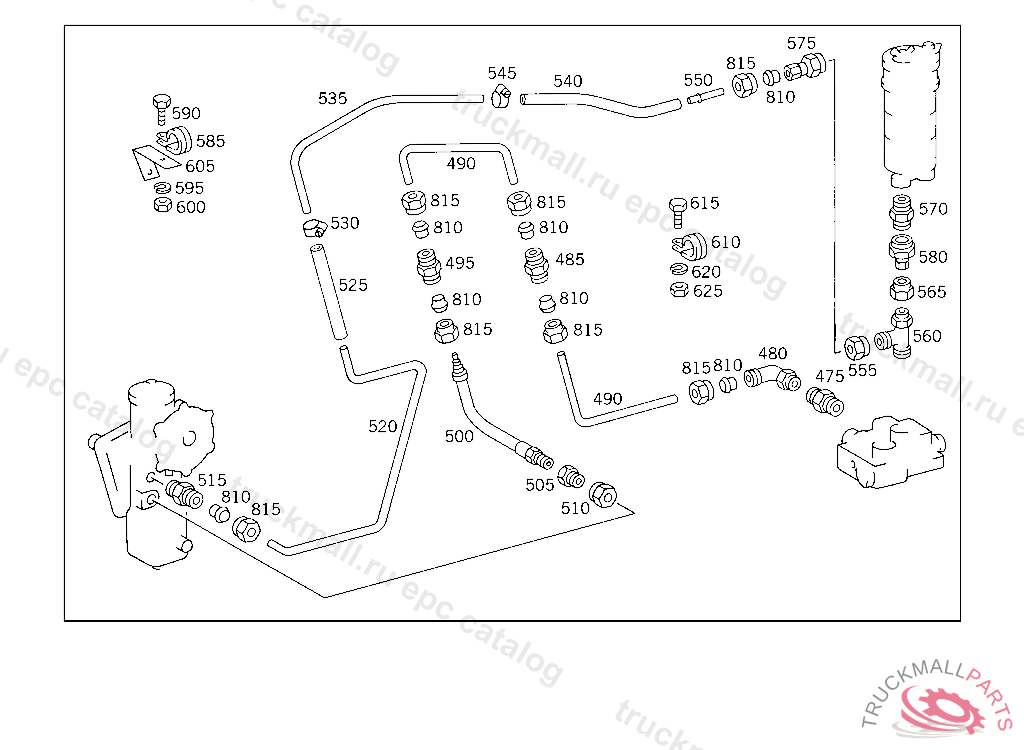

475
SCREW CONNECTION , Replaced By: A6999970072, +001N003861015004, +001N915017015100
475
FITTING FROM POWER STEERING PUMP TO CUT-IN VALVE
475
FITTING DELIVERY LINE TO OIL PUMP,CIRCUITS I & II
480
FITTING OIL LINE CONNECTION
480
FITTING , Replaced By: N003952015100
485
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
490
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
490
LINE , Replaced By: A0005516256
490
LINE , Replaced By: A0005516256
490
LINE , Replaced By: A0005516256
495
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
500
HOSE STEERING-TO-POWER-CYLINDER DELIVERY LINE
505
SCREW CONNECTION FROM HOSE TO STEERING BOX
510
UNION NUT LINE CONNECTION
515
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
520
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
520
LINE , Replaced By: A0005516256
525
HOSE RETURN LINE TO OIL TANK, ORDER BY THE METER
530
CLAMP PRESSURE REGULATOR
535
LINE
535
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
540
HOSE RETURN LINE TO OIL TANK, ORDER BY THE METER
545
CLAMP PRESSURE REGULATOR
550
LINE , Replaced By: A3434293608
550
LINE FROM PRESSURE REGULATOR TO SLIDE, LENGTH AVAILABLE 3000 MM
555
UNION NUT LINE CONNECTION, Replaced By: N000000006243
555
NUT LINE CONNECTION
560
FITTING BETWEEN THE LINES
565
UNION NUT
570
SCREW-IN FITTING
575
SCREW CONNECTION FROM PRESSURE LIMIT VALVE TO FLOW INDICATOR,CIRCUIT I
580
SCREW CONNECTION TOP LEFT
585
CLAMP OIL DIPSTICK GUIDE TUBE TO BRACKET
585
CLAMP LINE MOUNTING
590
SCREW LICENSE PLATE TO BRACKET
590
SCREW , Replaced By: N304017006020
595
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
600
NUT BALL PIVOT TO LEVER
605
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
605
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6205244040
610
CLAMP LINE MOUNTING
615
SCREW PUMP TO BRACKET M 6X20
620
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
625
NUT BALL PIVOT TO LEVER
810
GLAND LINE CONNECTION
815
UNION NUT LINE CONNECTION
