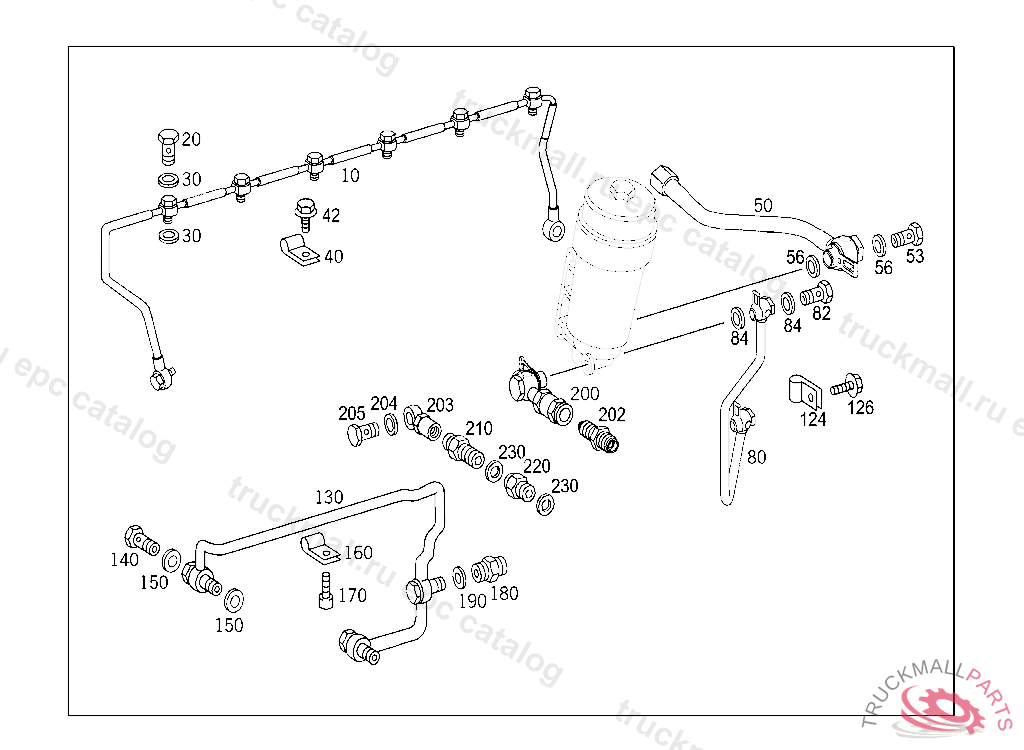

Поз.
Артикул
Описание
20
BANJO BOLT FUEL LEAK LINE
30
SEALING RING. SCREW
40
CLAMP ELECTRIC CABLE TO OIL PAN
40
CLAMP , Replaced By: N916016010211
42
HEXAGON HEAD BOLT
124
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
124
CLAMP SENSOR CABLE TO FRONT AXLE
126
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
126
HEXAGON HEAD BOLT
130
LINE FROM CONTROL UNIT TO PUMP
130
LINE FROM VALVE TO FUEL PUMP
140
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
150
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
160
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
170
SCREW , UP TO REAR AXLE 11016,FROM REAR AXLE SEE SPARE PARTS LIST 816
202
CHECK VALVE
203
FITTING COMPRESSED-AIR CONNECTION TO PNEUMATIC VALVE
204
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
205
HOLLOW SCREW AT SOLENOID VALVE
210
CHECK VALVE
220
FITTING ,*0591097
230
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
999
BRACKET BRACKET TO HOOD, UNIT PUMPS
999
BRACKET BRACKET TO HOOD, UNIT PUMPS
999
CLAMP
999
CLAMPING PIECE FUEL LINE FIXTURE
999
SCREW CLAMP ON BRACKET
999
CLAMP LINE MOUNTING
