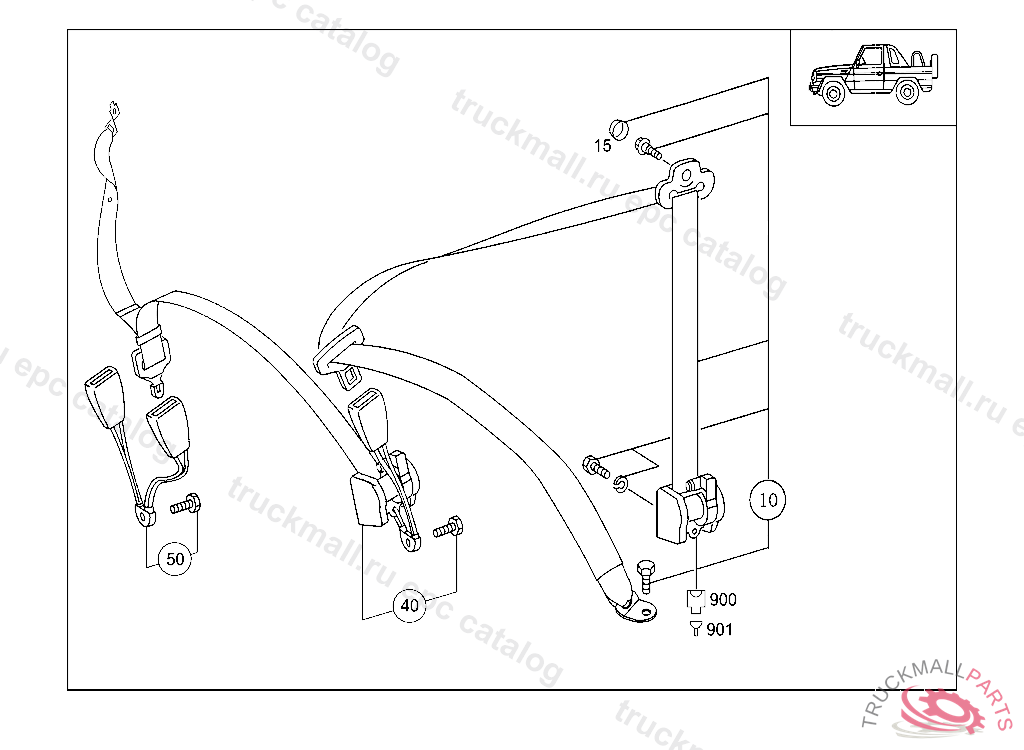

G 400 CDI - 463.332 FROM CHASSIS 144226 - 92 REAR SEAT BENCH

40

SEAT BELT REAR SEAT BENCH,CENTRAL

50

CATCH REAR SEAT BENCH,CENTRAL, X 15531020040331

50

SEAT BELT BUCKLE

50

SEAT BELT BUCKLE LEFT REAR

900

PLUG FRONT EMERGENCY TENSIONING RETRACTOR, FROM IDENT-NO. A 009128 ALSO INSTALLED IN: 007674,007709-007711,008155,008277,008291,008477-008478,008814-008815,009019,009026,009033,009040, 009093-009096,009113-009117. X 700000

901

REP.SET CONTACT0.5 MM2 ELO, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
