Поз.
Артикул
Описание

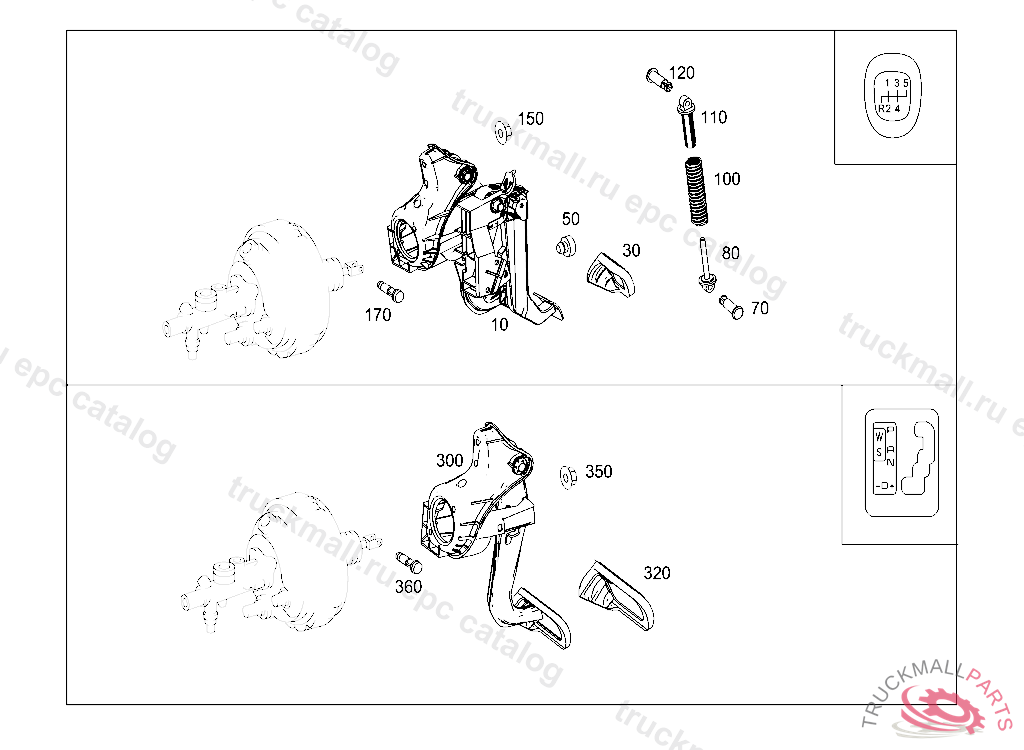

10
PEDAL
10
PEDAL , F 01529620070531
10
PEDAL SYSTEM , F 01529620070531, Replaced By: A2042908701
10
PEDAL ASSEMBLY , Replaced By: A2042908301
30
PEDAL COVER CLUTCH PEDAL
30
PAD CLUTCH PEDAL
30
PAD BRAKE PEDAL
30
PAD BRAKE PEDAL
50
STOP CLUTCH PEDAL
50
STOP BUFFER CLUTCH PEDAL
70
PIN SPRING RETAINER
80
ROD
100
PUSH SPRING
110
SPRING RETAINER OVER-CENTER ACTING SPRING
120
PIN SPRING RETAINER
150
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
170
PIN BRAKE UNIT TO PEDAL ASSEMBLY
300
PEDAL ASSEMBLY , A 01762920070430 L 00000120070430 V 00000120070430 F 01529620070531 L 10000020081016
300
PEDAL ASSEMBLY , IMPORTANT: ALSO ORDER BRAKE PEDAL COVER
320
PAD BRAKE PEDAL
320
PAD BRAKE PEDAL
350
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
360
PIN BRAKE UNIT TO PEDAL ASSEMBLY
