Mercedes N910105010002 - Болт м10х35

G 131-9 715.575 GETRIEBETEILE

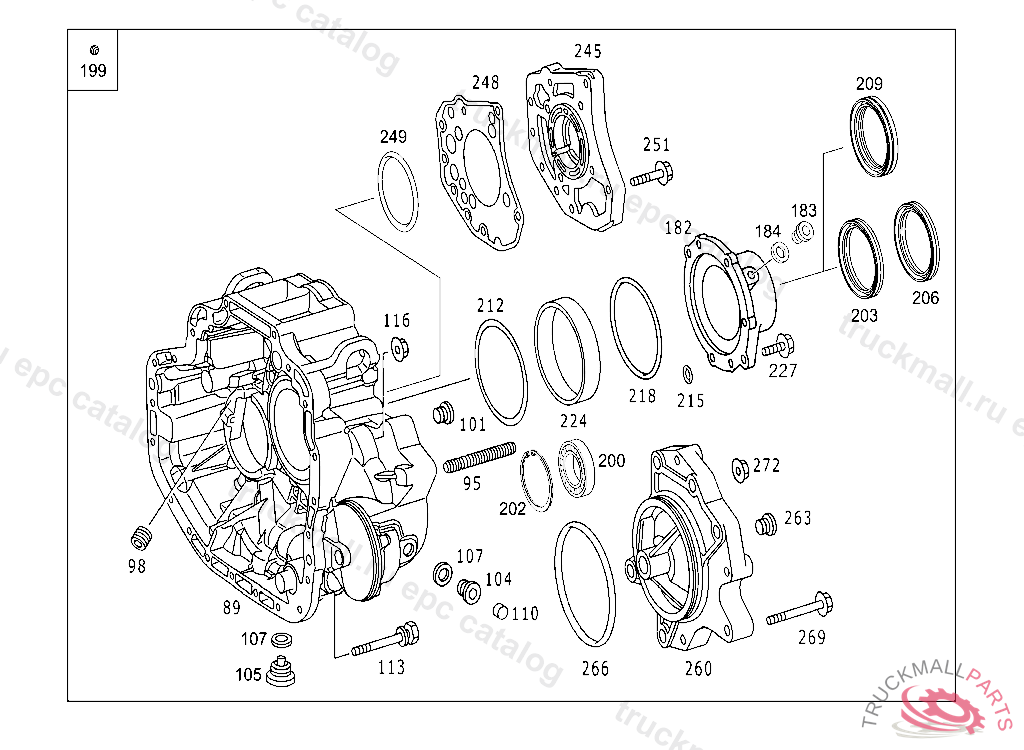

26 TRANSMISSION,NINE-SPEED - 100 TRANSMISSION CASE AND COVER IL. 3

Поз.
Артикул
Описание
98
A3899970719
THREADED PIN TRANSMISSION CASE
105
A2109970032
SCREW PLUG OIL DRAIN
107
N007603024105
SEAL RING OIL FILLING AND OIL DRAIN
113
A9459900201
SCREW TRANSMISSION CASE REAR PART TO TRANSMISSION CASE M 12X62,490748
113
A3899901001
SCREW TRANSMISSION CASE M 12X1.5X50
113
A3899900701
SCREW TRANSMISSION CASE REAR PART TO TRANSMISSION CASE M12X62, TO 389 261 46 03,389 261 47 03,490748
113
A9459900801
BOLT AND WASHER ASSY.. SCREW TRANSMISSION CASE TO TRANSMISSION CASE
113
A9459900001
SCREW TRANSMISSION CASE TO TRANSMISSION CASE M 12X48
209
A0239978847
SEAL RING TRANSMISSION CASE REAR COVER 15.5MM
245
A9452611033
COVER CASE COVER
251
N910105010002
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
251
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
