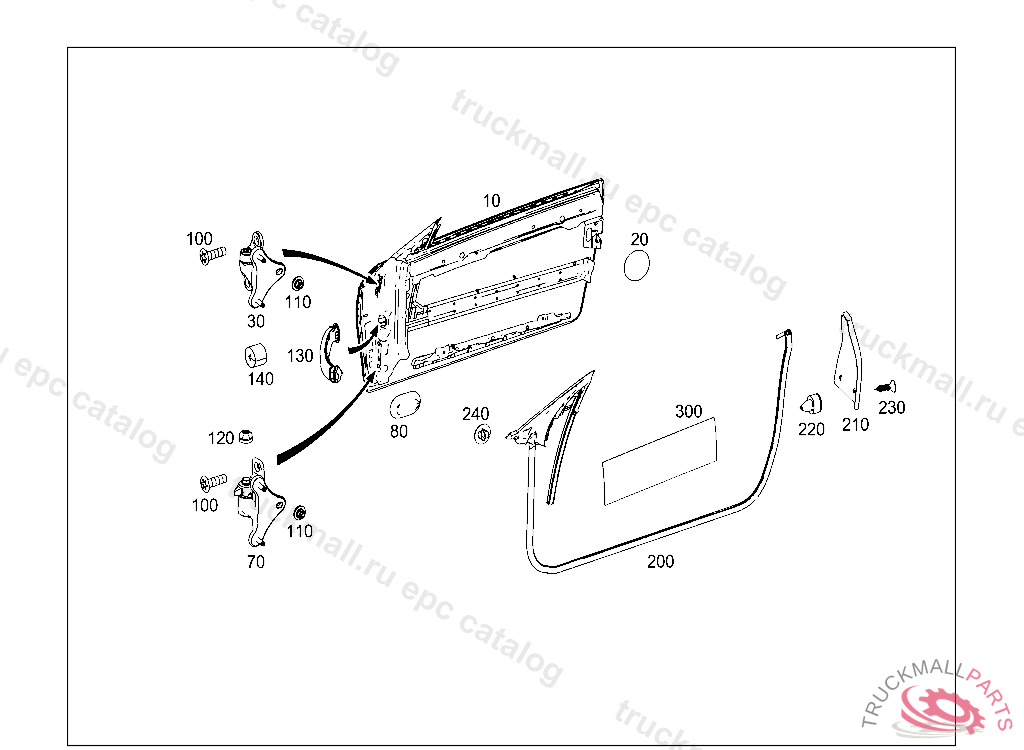

Поз.
Артикул
Описание
10
DRIVER'S DOOR RIGHT
10
DRIVER'S DOOR LEFT
20
ADHESIVE TAPE PIPING
30
HINGE TOP RIGHT
30
HINGE TOP LEFT
70
HINGE BOTTOM RIGHT
70
HINGE BOTTOM LEFT
80
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
100
BOLT HINGE ON A-PILLAR 8X27
100
BOLT HINGE TO LEFT DOOR M8X35
110
MULTIPLE NUT FOR HINGE TO B-PILLAR AT LEFT M8
120
CAP TO RIGHT DOOR HINGE SCREW
130
GUIDE RAIL PIPING DOOR LEFT, A 28698120090318 L 02880720090331 V 00118320090331 F 33263820090304 L 10000020090901
130
GUIDE RAIL PIPING DOORS RIGHT, F 51608220100331
140
INTERMEDIATE LAYER CABLE RETAINER IN RIGHT DOOR
200
SEAL LEFT DOOR SEAL
200
SEAL RIGHT DOOR SEAL
210
ORNAMENTAL COVER FOR DOOR RIGHT
210
ORNAMENTAL COVER FOR DOOR LEFT
220
TREENAIL
230
BOLT ORNAMENTAL COVER TO DOOR 3.5X13
240
SNAP FASTENER ON RIGHT A-PILLAR
300
INSULATION AT LEFT PANELING 500X100MM, TO BE ADAPTED DURING ASSEMBLY
