Mercedes A0085451326 - Корпус разъема

E 320 CDI 210.026 FROM MODELLJAHR CODE 800

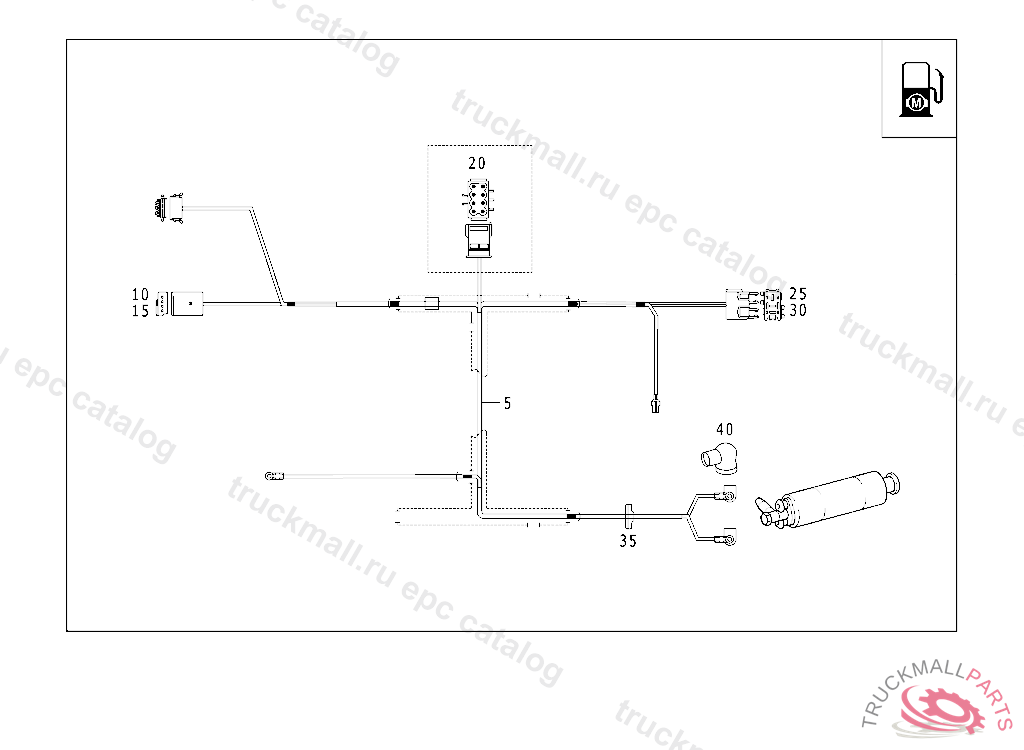

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 535 FUEL PUMP CABLE

Поз.
Артикул
Описание
10
A0085455526
CONTACT BUSHINGR 27, 0.75 MM2
10
A0005404605
REP.SET CONTACT0.75 MM2 MQS, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
15
A0085455226
CONTACT SPRING FUSE BOX, Replaced By: A0005406905
15
A0005406905
REP.SET CONTACT0.5-1.0 MM2
20
A0335452028
PLUG PIN DOOR SEPARATION POINT 1,0-2,5 MM2
25
A0085451326
PLUG HOUSING
30
A0045455326
FLAT PIN BUSHING
30
A0045455226
CONTACT SPRING1-2.5 MM2
35
A1119971481
GROMMET ENGINE COMPARTMENT LAMP
40
A1239971681
GROMMET
