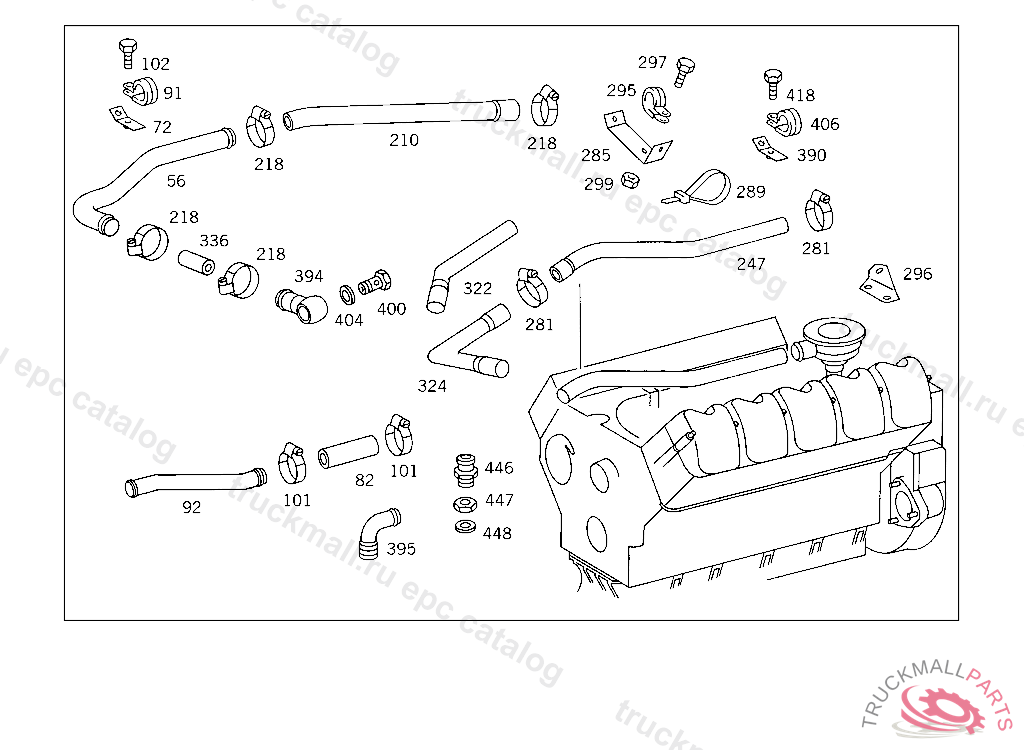

Поз.
Артикул
Описание
56
PIPE (INTERMEDIATE PIPE)
72
BRACKET MOLDED HOSE TO INTAKE MANIFOLD
82
HOSE INTAKE PIPE TO BREATHER PIPE,OM 352
91
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
92
PIPE
101
CLAMP25-40X13 MM
101
LOOM TIE , Replaced By: N000000000668
101
CLAMP , Replaced By: A0069970490
102
SCREW , Replaced By: N304017006018
102
SCREW COVER PLATE TO COVER PLATE M 6 X 12
210
HOSE MOLDED HOSE
218
CLAMP25-40X13 MM
218
LOOM TIE , Replaced By: N000000000668
218
CLAMP , Replaced By: A0069970490
247
HOSE
247
HOSE , Replaced By: A4030181782
247
HOSE MOLDED HOSE
247
HOSE MOLDED HOSE,064694
247
HOSE MOLDED HOSE
247
HOSE MOLDED HOSE,064694
247
HOSE MOLDED HOSE,064694
247
HOSE MOLDED HOSE
247
HOSE MOLDED HOSE
247
HOSE MOLDED HOSE
247
HOSE MOLDED HOSE
247
HOSE MOLDED HOSE
247
HOSE MOLDED HOSE,064694
247
HOSE MOLDED HOSE,064695
247
HOSE (MOLDED HOSE)
281
CLAMP25-40X13 MM
281
LOOM TIE , Replaced By: N000000000668
281
CLAMP , Replaced By: A0069970490
285
BRACKET CYLINDER CRANKCASE BREATHING
289
LOOM TIE TO MOUNT PLASTIC PIPING
295
CLAMP
295
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
296
BRACKET FUEL FILTER MOUNTED,645919
297
SCREW , Replaced By: N304017008016
297
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
299
NUT , Replaced By: N304032008006
299
NUT
322
HOSE MOLDED HOSE,064694
322
HOSE MOLDED HOSE,064694
324
HOSE MOLDED HOSE,064695
324
HOSE MOLDED HOSE
324
HOSE , Replaced By: A4030181782
336
HOSE INTERMEDIATE PIPE TO OIL SEPARATOR
336
HOSE
336
HOSE INTAKE PIPE TO BREATHER PIPE,OM 352
336
HOSE HOSE TO AIR INTAKE PIPE & TO AIR COMPRESSOR & ENGINE BREATHER,RESP., ORDER BY THE METER
336
HOSE ELBOW TO TRANSVERSE INTAKE PIPE
390
BRACKET MOLDED HOSE TO INTAKE MANIFOLD
390
BRACKET CYLINDER CRANKCASE BREATHING
394
FITTING
395
PIPE BEND AT AIR COMPRESSOR
400
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
404
SEAL RING LINE TO OIL PUMP
404
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
406
CLAMP
406
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
418
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
418
SCREW COVER PLATE TO COVER PLATE M 6 X 12
418
SCREW , Replaced By: N304017006018
418
SCREW , Replaced By: N304017008016
446
FITTING AT AIR COMPRESSOR
446
FITTING AIR COMPRESSOR,CONNECTION: "10"
447
NUT 3/2-WAY VALVE TO CAB,4 685151
447
NUT , Replaced By: N080705026003
448
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
448
SEAL RING AT AIR COMPRESSOR
999
CLAMP , Replaced By: N916016025201
999
CLAMP , Replaced By: N916016032201
999
CLAMP , Replaced By: N916016032200
999
LOOM TIE
999
LOOM TIE , Replaced By: N916017025000
999
LOOM TIE , Replaced By: A0019974390
999
BRACKET
999
PIPE BEND ENGINE BREATHING
999
PIPE ENGINE BREATHING
999
HOSE , Replaced By: A3909970682
999
HOSE340 MM
999
HOSE , Replaced By: A4010180732
999
HOSE , Replaced By: A3520181882
999
HOSE
999
HOSE , Replaced By: A4030181782
999
CONNECTOR , Replaced By: A4030180509
999
CONNECTOR , Replaced By: A4030180509
999
BRACKET MOLDED HOSE TO INTAKE MANIFOLD,064694
999
BRACKET MOLDED HOSE TO INTAKE MANIFOLD,064694
999
BRACKET , Replaced By: A4030184340, +001A0019974290
999
BREATHER PIPE , Replaced By: A4030180612
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A4255280482
999
HOSE , Replaced By: A3520182182
999
PIPE (INTERMEDIATE PIPE)
999
PIPE (INTERMEDIATE PIPE)
999
PIPE (INTERMEDIATE PIPE)
999
HOSE , Replaced By: A4020180382
999
BRACKET BREATHER LINES
999
LINE
999
HOSE BREATHER LINE TO OIL SEPARATOR
999
PIPE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 005390, Replaced By: A4240100155
999
BREATHER PIPE
999
PIPE , Replaced By: A4070181145
999
BRACKET INTERMEDIATE PIPE TO OIL SEPARATOR
999
BRACKET , Replaced By: A3525462243
999
BREATHER PIPE
999
INTAKE PIPE
999
INTAKE PIPE
999
HOSE , Replaced By: A4210180282
999
HOSE MOLDED HOSE
999
BREATHER PIPE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 442.950-480148, Replaced By: A4420180212
999
PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4240100555
999
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4240180382
999
HOSE HOSE TO OIL FILLER PIPE AND TO PIPE SOCKET ON OIL PAN 135 MM, ORDER BY THE METER
999
BREATHER PIPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4270180412
999
BREATHER PIPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4270180512
999
BREATHER PIPE , Replaced By: A4290180112
999
HOSE 18-MM-DIA. LINE
999
SCREW FITTING , Replaced By: A4039971172
999
CLAMP PUMP TO BRACKET
