Поз.
Артикул
Описание

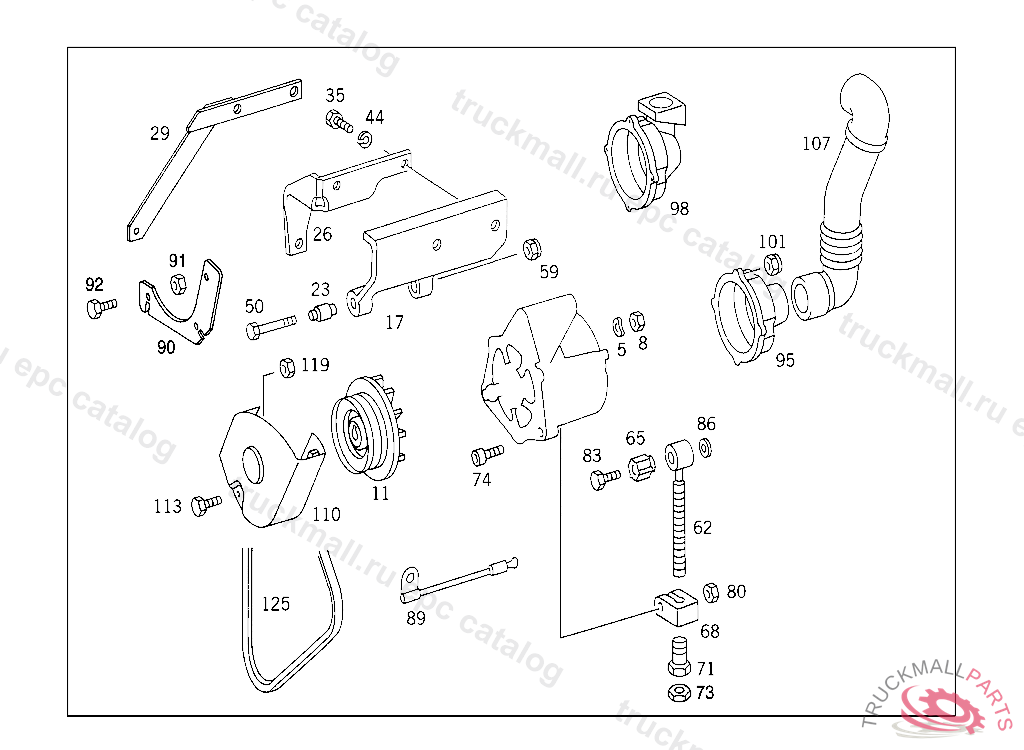

11
FAN WITH PULLEY
17
SUPPORT ALTERNATOR
23
BUSHING
29
BRACKET COOLING WATER PIPE TO RADIATOR,5 901844
35
SCREW REAR SPRING BRACKET TO FRAME M 14X35
44
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
50
SCREW ALTERNATOR MOUNTING
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
62
CLAMPING BOLT FOR V-BELT TENSIONING
65
BUSHING
68
CLAMPING PIECE TIGHTENER PULLEY
68
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
71
NUT TIGHTENER PULLEY TO LEVER
74
SCREW BEARING BRACKET TO CONSOLE
80
NUT BRACKET TO FRAME
86
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
89
GROUND CABLE , Replaced By: A4031500732
89
GROUND CABLE GENERATOR TO GENERATOR SUPPORT,529890
98
TUBE
101
NUT RELAY TO BRACKET M5
125
V-BELT12.5X1550
999
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
WASHER CLAMPING BOLT TO OIL PAN
