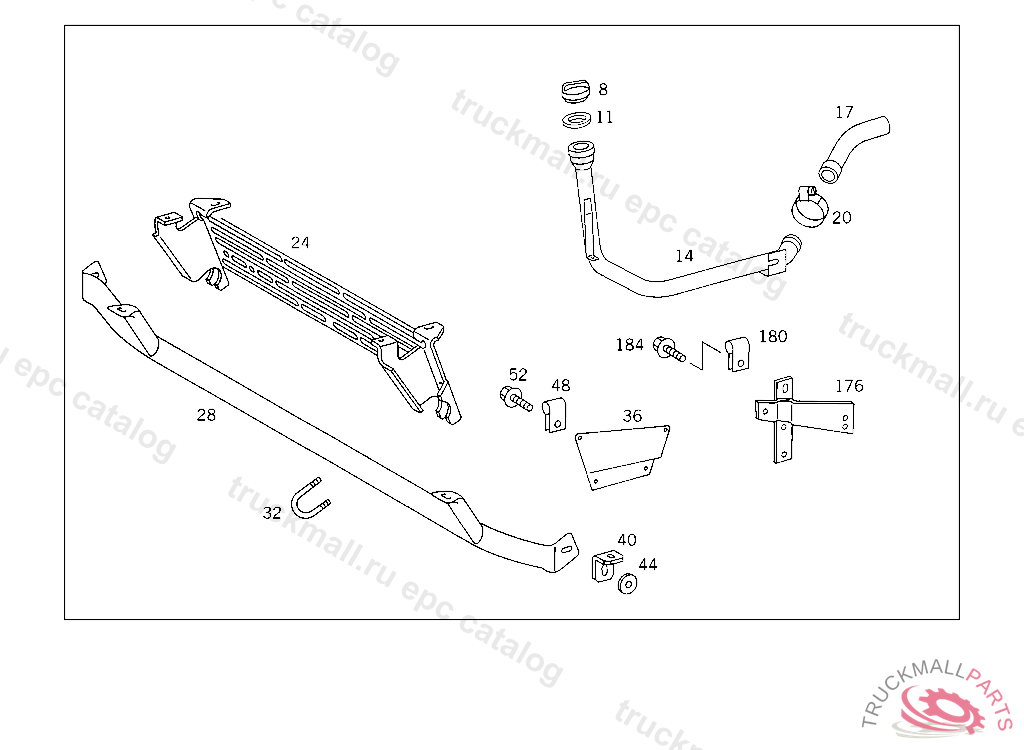

Поз.
Артикул
Описание
8
CAP OIL REFILLING
11
GASKET
11
GASKET , Replaced By: A1020180380
14
PIPE ELBOW (OIL FILLER PIPE)
14
PIPE ELBOW (OIL FILLER PIPE)
14
PIPE ELBOW (OIL FILLER PIPE)
14
PIPE ELBOW , Replaced By: A6555201006
14
PIPE ELBOW (OIL FILLER PIPE)
14
PIPE ELBOW (OIL FILLER PIPE)
14
PIPE ELBOW (OIL FILLER PIPE)
17
HOSE , Replaced By: A6205280182
17
HOSE FROM OIL FILLER NECK TO OIL PAN
17
HOSE CONNECTION OF OIL FILLER PIPES
20
CLAMP , Replaced By: N000000000678
20
CLAMP , Replaced By: N000000000671
20
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
20
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
20
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
24
COVERING RADIATOR UNDERSHIELD
28
PROTECTIVE TUBE RADIATOR
32
CLAMP COVER PLATE
36
BRACKET , NOT USED
40
BRACKET COVERING
44
WASHER BRACKET TO SIDE MEMBER,5 703114
48
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
52
SCREW DE-AERATION LINE TO RADIATOR
52
SCREW , Replaced By: A6739900032
176
BRACKET OI DIPSTICK GUIDE TUBE
180
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
184
SCREW GUIDE TUBE BRACKET TO RADIATOR
999
BRACKET OI DIPSTICK GUIDE TUBE
999
SUSPENSION EYE BRACKET TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
