Поз.
Артикул
Описание

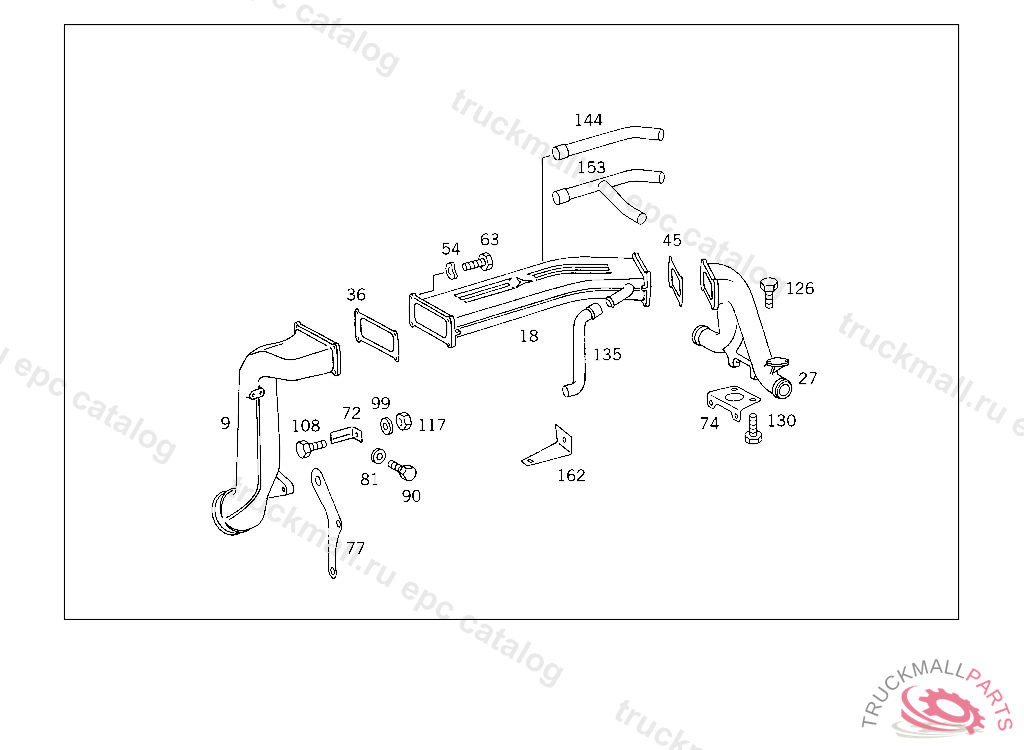

9
INTAKE PIPE FRONT
9
INTAKE PIPE
18
INTAKE PIPE CENTRAL
27
INTAKE PIPE EXHAUST GAS TURBOCHARGER
36
GASKET FROM AIR INTAKE PIPE TO TURBOCHARGER
36
GASKET , Replaced By: A4420981880
45
GASKET FROM AIR INTAKE PIPE TO OIL BATH AIR CLEANER
45
GASKET , Replaced By: A4420981980
54
SPRING WASHER , Replaced By: N000137008212
54
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
63
HEXAGON HEAD BOLT. SCREW OIL SEPARATOR TO TRANSMISSION CASE
72
BRACKET AIR INTAKE PIPE
74
BRACKET OIL TANK
74
BRACKET AIR INTAKE PIPE
77
BRACKET AIR INTAKE PIPE
81
WASHER EXHAUST MUFFLER TO STRAP
81
WASHER , Replaced By: N000125008443
90
SCREW BRACKET TO EXHAUST PIPE BRACKET
90
SCREW BRACKET TO FRAME SIDE MEMBER
90
SCREW BRACKET TO CROSS CONNECTION STRUT
99
WASHER RADIATOR TO RUBBER MOUNTING
108
SCREW STRUT TO CROSS MEMBER M 10X25
117
NUT
126
SCREW BRACKET TO CONSOLE
130
SCREW BRACKET TO FRAME SIDE MEMBER
135
BREATHER PIPE ENGINE BREATHING
135
BREATHER PIPE CYLINDER CRANKCASE BREATHING
144
HOSE (MOLDED HOSE)
153
HOSE
162
BRACKET ON CHARGING AIR CONNECTING PIPE TWOHOLE FLANGE,589508
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
HOLLOW SCREW FEED AND RETURN
999
SCREW SUPPORT TO FENDER
999
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
999
SEAL RING INJECTION PUMP
999
SCREW , Replaced By: N304017008018
999
SCREW PLUG , Replaced By: A0009973532
999
SCREW PLUG , Replaced By: N000908026008
999
SPRING WASHER , Replaced By: N000137008212
999
WASHER , Replaced By: N000125008443
999
BRACKET LINE MOUNTING
999
HOSE (MOLDED HOSE)
999
HOSE AIR COMPRESSOR CONNECTION
999
HOSE AIR-COMPRESSOR INTAKE PIPE CONNECTION
999
HOSE (MOLDED HOSE)
999
HOSE (MOLDED HOSE)
999
INTAKE PIPE FROM AIR INTAKE PIPE TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
999
AIR INTAKE PIPE , Replaced By: A4420981401
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A4220780041
999
BRACKET MANUAL FEED PUMP
999
BREATHER PIPE ENGINE BREATHING
999
BREATHER PIPE ENGINE BREATHING
999
HOSE AIR-COMPRESSOR INTAKE PIPE CONNECTION
999
HOSE AIR COMPRESSOR
999
INTAKE PIPE
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 614576, Replaced By: A4420980239
999
AIR INTAKE PIPE , SEE SA 18540/72
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 716010, Replaced By: A4420784741
999
BRACKET FUEL FILTER MOUNTED,645919
999
BREATHER PIPE ENGINE BREATHING
999
BRACKET BREATHER PIPE,702492
999
HOSE AIR COMPRESSOR CONNECTION
999
SCREW PLUG OIL COOLER,5 360280
999
BANJO UNION FUEL LINES AND BREATHING
