Поз.
Артикул
Описание

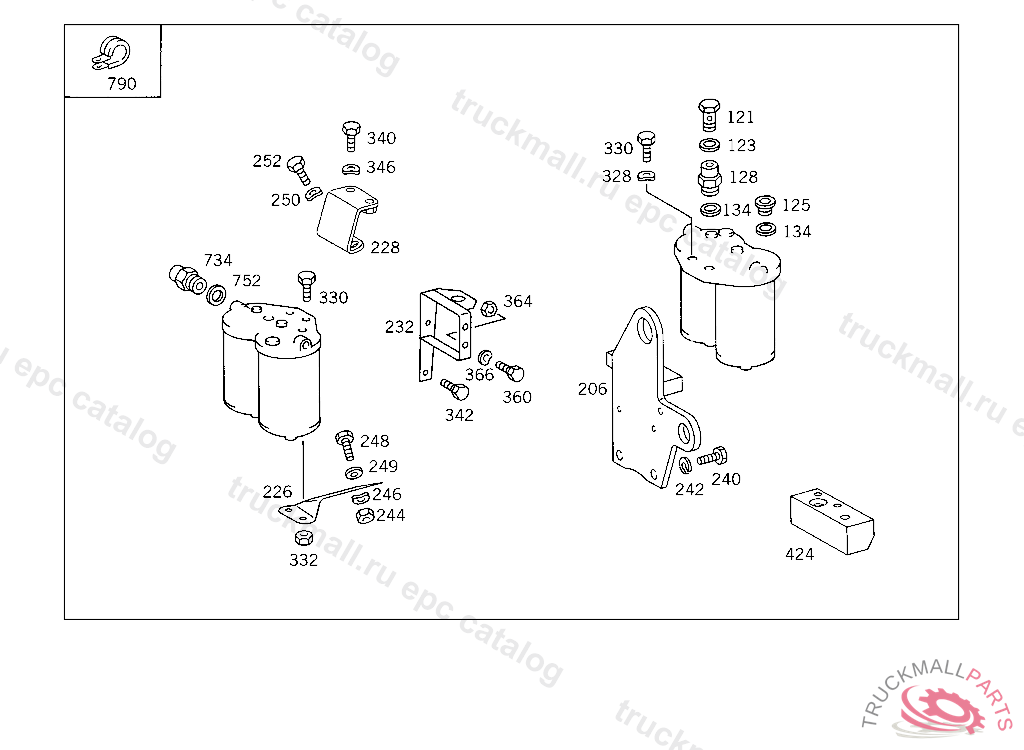

121
HOLLOW SCREW FUEL LINE TO FEED PUMP
123
SEAL RING INJECTION PUMP
125
SCREW PLUG , Replaced By: N000908014009
125
SCREW PLUGTO 000 553 03 05,000 553 18 05,
128
VALVE , Replaced By: A0000920610
128
VALVE FUEL FILTER
134
SEAL RING INJECTION PUMP
134
SEAL RINGTO 000 553 03 05,000 553 18 05,
206
SUPPORT
226
SUPPORT FUEL FILTER
226
BRACKET FUEL FILTER
228
BRACKET , Replaced By: A4220901241
228
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4420901641, +001A4420785641
228
BRACKET FUEL FILTER
228
BRACKET FUEL FILTER
228
BRACKET , Replaced By: A4230900341
228
BRACKET FUEL FILTER,645920
232
BRACKET PRE-CLEANER
240
SCREW BRACKET WITH FUEL FILTER TO ENGINE
242
LOCK WASHERROCKINGER TYP 59 G140,59 G150
244
NUT BATTERY CABLE
246
SPRING WASHER STEERING COLUMN BRACKET TO CAB
248
SCREW FROM COUPLING PIECE TO DISTRIBUTOR AT CROSS MEMBER, NOT USED
248
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
248
SCREW PIPE ELBOW TO BRACKET M 10X50
248
SCREW BRACKET TO FRAME SIDE MEMBER
248
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
248
SCREW , Replaced By: N304014010005
248
SCREW , Replaced By: N304017010030
248
SCREW , Replaced By: N304017010053
249
WASHER RADIATOR TO RUBBER MOUNTING
250
SPRING WASHER CAB FLOOR
252
SCREW , Replaced By: N308676012012
252
SCREW , Replaced By: N000961012051
252
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
252
SCREW BEARING BRACKET TO FRAME
252
HEXAGON HEAD BOLT , Replaced By: A0029902704
328
SPRING WASHER CAB FLOOR
330
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME
330
SCREW LEFT AND RIGHT CONSOLES TO CAB
332
NUT ANGLE TO FRAME
340
SCREW BRACKET TO FRAME
340
SCREW , Replaced By: N000961012184
340
SCREW , Replaced By: N308676012018
340
HEXAGON HEAD BOLT , Replaced By: A0029902704
340
HEXAGON HEAD BOLT BRACKET TO CROSS MEMBER
340
SCREW STRUT TO FRAME M 12X62
340
SCREW RADIATOR PROTECTIVE GRILLE TO ANGLE
340
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
342
SCREW SUPPORT TO FENDER
342
SCREW , Replaced By: N304017008018
346
SPRING WASHER CAB FLOOR
360
HEXAGON HEAD BOLT BRACKET TO BRACKET
360
SCREW , Replaced By: N304017010002
364
NUT BATTERY CABLE
366
SPRING WASHER STEERING COLUMN BRACKET TO CAB
424
MOUNTING LEDGE FUEL FILTER WITH BRACKET TO BRACKET
734
FITTING HAND PUMP TO FUEL FILTER
734
FITTING FUEL FILTER
752
SEAL RINGTO 000 553 03 05,000 553 18 05,
752
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
752
SEAL RING , Replaced By: N007603010110
752
SEAL RING PNEUMATIC VALVE
752
SEAL RING INJECTION PUMP
790
CLAMP , Replaced By: N916016010211
790
CLAMP , Replaced By: N000000001045
790
CLAMP LINE MOUNTING SA 088202/01
790
CLAMP CABLE HARNESS MOUNTING
999
CLAMPING BRACKET FILTER HOUSING TO PUMP
999
SEPARATOR (WATER SEPARATOR)
999
NUT
999
BANJO UNION FUEL LINES AND BREATHING
999
STUD
999
CLAMPING PIECE FUEL FILTER TO BRACKET,012710
999
FITTING RETURN
999
LOOM TIE LINE MOUNTING
999
FITTING FUEL LINE TO HAND PUMP
999
HOLLOW SCREW FUEL LINES TO SOLENOID VALVE
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
INTERMEDIATE PIECE AT INJECTION PUMP
999
LINE FROM FUEL DISTRIBUTOR TO FEED PUMP
999
LINE FROM INJECTION PUMP OVERFLOW VALVE TO T-FITTING
999
LINE FROM FUEL FILTER TO INJECTION PUMP
999
LINE FROM FUEL FEED PUMP TO DISTRIBUTOR,062710
999
BRACKET , Replaced By: A4220901241
999
FILTER , Replaced By: A4420900452
999
PLATE LINE MOUNTING,920657
999
LINE
999
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
999
LINE FROM INJECTION PUMP OVERFLOW VALVE TO RETURN CONNECTION, NOT USED
999
LINE FROM FEED PUMP TO FILTER, NOT USED
999
LINE , Replaced By: A4470700432
999
LINE FROM FUEL FILTER TO INJECTION PUMP, NOT USED
999
LINE , Replaced By: A4470700332
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
LOCK WASHER BRACKET TO SUPPORTING ARM
999
NUT , Replaced By: N304032008006
999
WASHER , Replaced By: N007349008007
999
WASHER
999
SEAL RING SCREW PLUG
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
NUT
999
COMBINATION BOLT LEFT & RIGHT CHARGE AIR PIPES TO CYLINDER HEAD M 8X93
999
NUT. UNION NUT RETURN
999
FITTING WATER SEPARATOR
999
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
