Поз.
Артикул
Описание

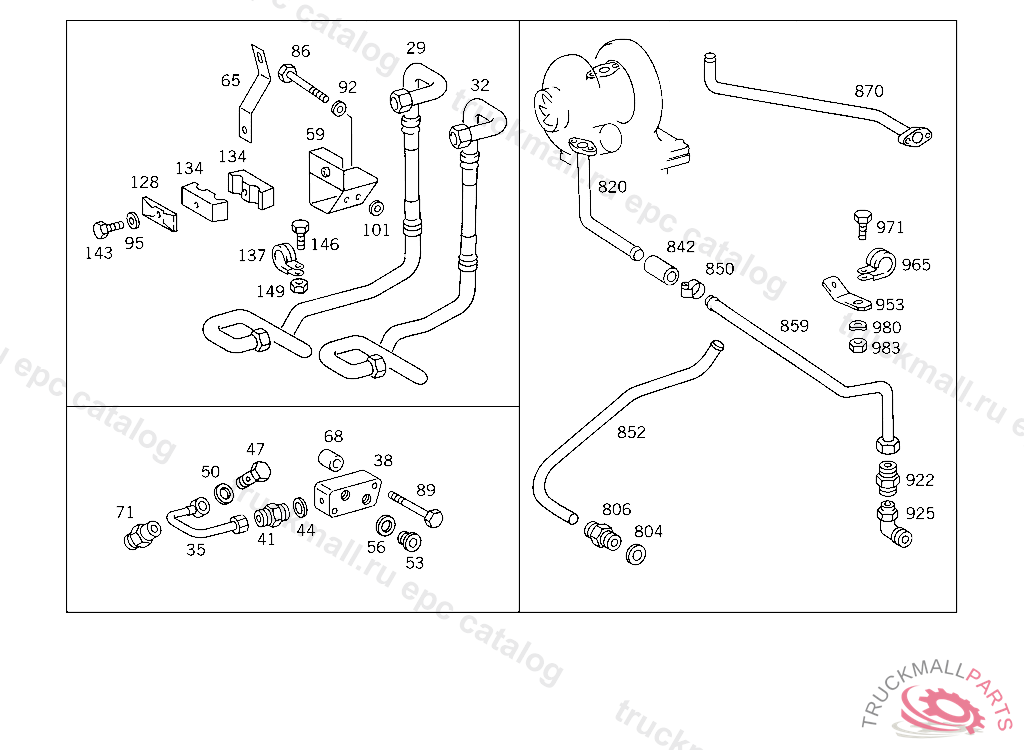

29
OIL LINE FROM OIL COOLER TO OIL FILTER
32
OIL LINE FROM OIL FILTER TO OIL COOLER
35
OIL LINE OIL DELIVERY LINE
38
CONNECTOR OIL PRESSURE GAUGE CONNECTION, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
41
SCREW FITTING LUBRICATING LINE
44
SEAL RING PNEUMATIC VALVE
47
HOLLOW SCREW LINE CONNECTION
47
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
50
SEAL RING PNEUMATIC VALVE
53
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
53
SCREW PLUG HOUSING,BOTTOM, Replaced By: N000908018011
56
SEAL RING VALVE TO VALVE,K 025179
59
BRACKET FIXTURE OF HOSE LINES ONE BELOW THE OTHER,839507
65
BRACKET OIL LINES
68
SPACER TUBE CONNECTOR TO BRACKET
71
SCREW PLUG AT CYLINDER CRANKCASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
86
SCREW P.T.O. TO TRANSMISSION
89
SCREW CYLINDER TO BRACKET, UP TO IDENT NO. - ,FROM IDENT NO. SEE SA 44120 762132 N 000000 P 000000
92
WASHER EXHAUST MUFFLER TO STRAP
95
WASHER , Replaced By: N007349010003
101
WASHER , Replaced By: N007349010007
101
WASHER STRUT TO CROSS MEMBER
128
PLATE OIL LINE TO SUCTION PIPE
134
CLAMP OIL LINE TO SUCTION PIPE,839507
137
CLAMP HOSE TO COOLING WATER PIPE
143
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
146
SCREW BRACKET TO CROSS CONNECTION STRUT
146
SCREW , Replaced By: N304017008034
149
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
804
SEAL RING SPEEDOMETER DRIVE
806
FITTING BEARING HOUSING
820
OIL LINE OIL RETURN LINE TO OIL PAN
820
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
820
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
820
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
842
HOSE , Replaced By: A0005514156
842
HOSE FUEL COMPENSATING, ORDER BY THE METER
842
HOSE FROM RETURN LINE CONNECTION TO CYLINDER CRANKCASE, ORDER BY THE METER FROM ENGINE 230908 YEAR OF MANUFACTURE 1992 UP TO ENGINE 432713 YEAR OF MANUFACTURE 1996
850
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
850
LOOM TIE , Replaced By: N000000000668
850
CLAMP , Replaced By: N000000000667
850
CLAMP , Replaced By: A0069970490
850
CLAMP25-40X13 MM
850
CLAMP PRESSURE REGULATOR
852
OIL LINE
859
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
859
OIL LINE OIL RETURN LINE TO OIL PAN
859
OIL LINE ,669131, Replaced By: A4421803022, +001A4290180140, +001A4421803122, +001N000933008048, +001N007349008000
870
OIL LINE OIL RETURN LINE TO OIL PAN
922
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
922
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
925
FITTING SUCTION LINE TO OIL PUMP
953
BRACKET OIL LINE TO OIL COOLER
953
BRACKET BREATHER PIPE,702492
965
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
971
SCREW BRACKET TO SIDE MEMBER
971
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
971
SCREW STOP TO BATTERY CASE
971
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
971
SCREW , Replaced By: N304017008016
980
LOCK WASHER
980
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
983
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
983
NUT
999
SCREW PLUG OIL COOLER,5 360280
999
ANGLE LINE MOUNTING
999
FLANGE
999
CLAMPING PIECE EXHAUST MANIFOLD TO CYLINDER HEAD
999
OIL LINE FROM OIL COOLER TO OIL FILTER
999
CONNECTOR BRACKET TO CYLINDER CRANKCASE
999
BRACKET
999
SCREW PLUG
999
FLANGE TO PLUG OIL RETURN BORE
999
EXPANSION PLUG TO PLUG AIR COMPRESSOR OPENING
999
OIL BAFFLE OIL RETURN TO TIMING CASE,RIGHT
999
OIL LINE TURBOCHARGER OIL RETURN
999
OIL LINE TURBOCHARGER OIL RETURN
999
OIL LINE RIGHT OIL FEED LINE TO TURBOCHARGER
999
OIL LINE FROM OIL COOLER TO CONNECTING HOSE
999
OIL LINE FROM CONNECTING HOSE TO OIL COOLER
999
OIL LINE FROM CONNECTING HOSE TO OIL FILTER
999
OIL LINE FROM OIL FILTER TO CONNECTING HOSE
999
SHIM BRACKET TO CYLINDER CRANKCASE
999
PIPE ELBOW TURBOCHARGER OIL RETURN
999
BRACKET ,983928
999
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
999
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
999
SEAL RING TURBOCHARGER OIL RETURN
999
FITTING OIL RETURN TO TIMING CASE,RIGHT
999
COVER TURBOCHARGER OIL RETURN
999
FLANGE OIL RETURN LINE TO EXHAUST GAS TURBOCHARGER
999
OIL LINE TURBOCHARGER OIL RETURN
999
PROTECTIVE PLATE LEFT OIL RETURN LINE
999
PIPE ELBOW TURBOCHARGER OIL RETURN
999
PIPE ELBOW TURBOCHARGER OIL RETURN
999
PIPE ELBOW
999
PIPE ELBOW EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
999
SPACER TUBE BREATHER LINE TO SIDE MEMBER
999
CAP TO PLUG AIR COMPRESSOR OPENING,128243
999
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, RIGHT
999
OIL LINE OIL DELIVERY LINE TO TURBOCHARGER
999
OIL LINE EXHAUST GAS TURBOCHARGER OIL RETURN, LEFT, NOT USED
999
OIL LINE LEFT OIL RETURN LINE
999
FLANGE
999
SCREW PLUG , Replaced By: A1159970032
999
SCREW PLUG INTAKE MANIFOLD
999
SCREW ENGINE REAR SUPPORT TO TRANSMISSION
999
SEAL RING OIL FILLING AND OIL DRAIN
