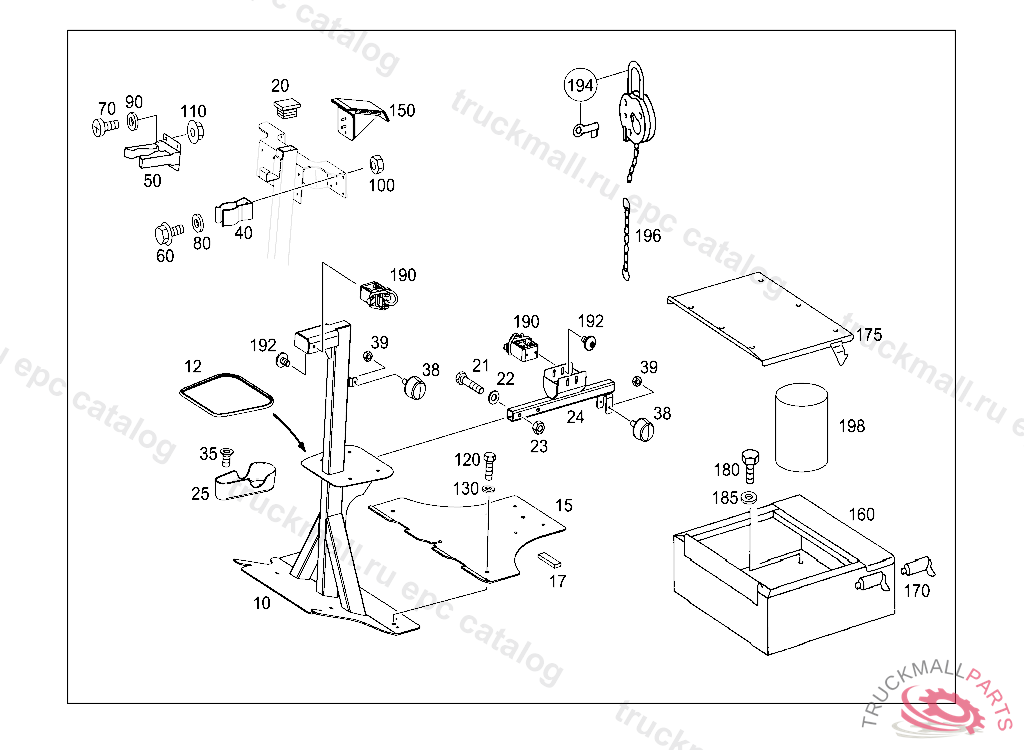

G 280 CDI - 461.344 FROM CHASSIS 144791 - 81 EQUIPMENT - INTERIOR APPOINTMENTS
Поз.
Артикул
Описание
10
BRACKET WEAPONS CARRIER
12
EDGE GUARD BOTTOM LEFT, 20131125
25
BRACKET TOP AND BOTTOM
35
SCREW
38
BUFFER STOP TO ACCELERATOR PEDAL
39
NUT SPRING-LOADED PUSH ROD
120
SCREW PROPELLER SHAFT TO FLANGE M 8X25
130
WASHER PUMP TO CONSOLE
160
TOOL BOX CO-DRIVER'S SEAT, NO LONGER AVAILABLE
170
LATCH TOOL BOX
175
COVER TOOL BOX
180
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
185
WASHER PUMP TO CONSOLE
190
CLOSING FLAP ATTACHMENT
192
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M6X10, Replaced By: A0019844329
