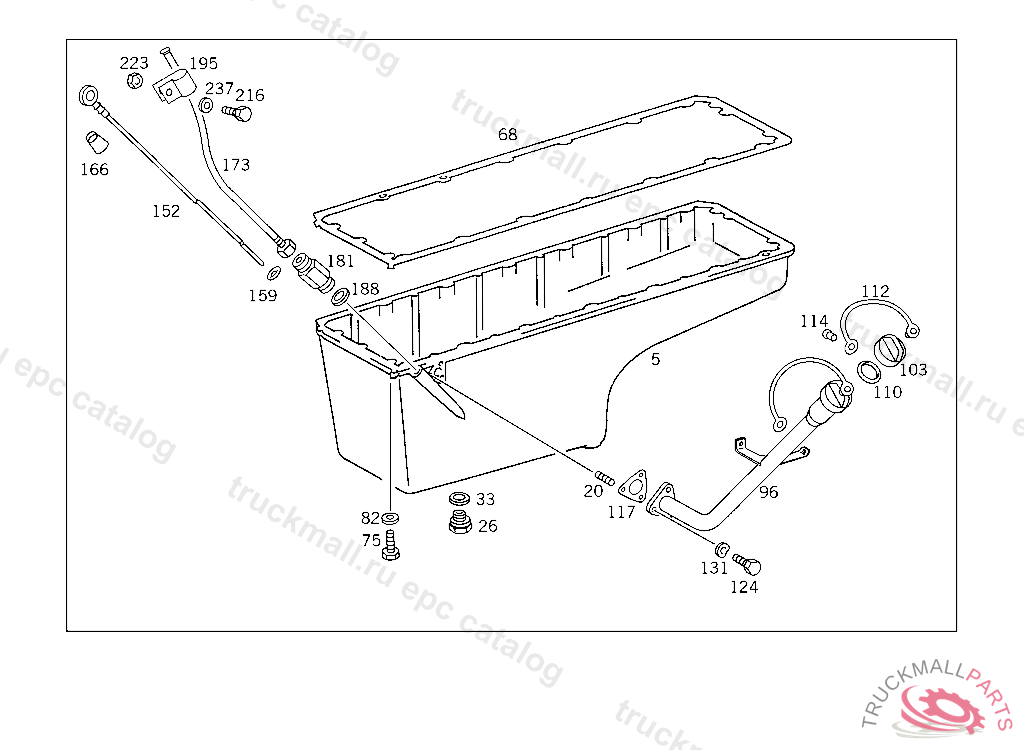

Поз.
Артикул
Описание
5
OIL PAN
20
THREADED INSERT
26
SCREW PLUG
33
SEAL RING OIL DRAIN 26X34 MM
68
GASKET OIL PAN TO CYLINDER CRANKCASE
68
GASKET , Replaced By: A4490140022
75
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE M8X130
75
SCREW CLAMP ON BRACKET
82
WASHER TRAILER PLUG SOCKET TO BRACKET
96
OIL FILLER NECK
103
COVER OIL FILLER NECK,D 200054
110
GASKET , Replaced By: A1020180080
110
GASKET COVER TO FITTING
112
BRACKET (OIL FILLER PIPE),D 200054
114
RIVET ,800701
114
RIVET , Replaced By: N910003004154
117
GASKET , Replaced By: A4420180080
117
GASKET OIL FILLER NECK
124
SCREW BRACKET TO INTAKE MANIFOLD
131
SPRING WASHER STEERING SHAFT BEARING TO CAB
152
OIL DIPSTICK
159
SEAL RING
166
CAP
173
GUIDE TUBE OIL DIPSTICK
181
FITTING , Replaced By: N915013008002
188
SEAL RING FROM FUEL TANK TO FUEL TANK
195
CLAMP
216
SCREW LOCK SPRING TO CROSS MEMBER
223
NUT , Replaced By: N304032006004
237
WASHER BRACKET TO INJECTION PUMP
999
OIL FILLER NECK , NOT USED
999
LOOM TIE
