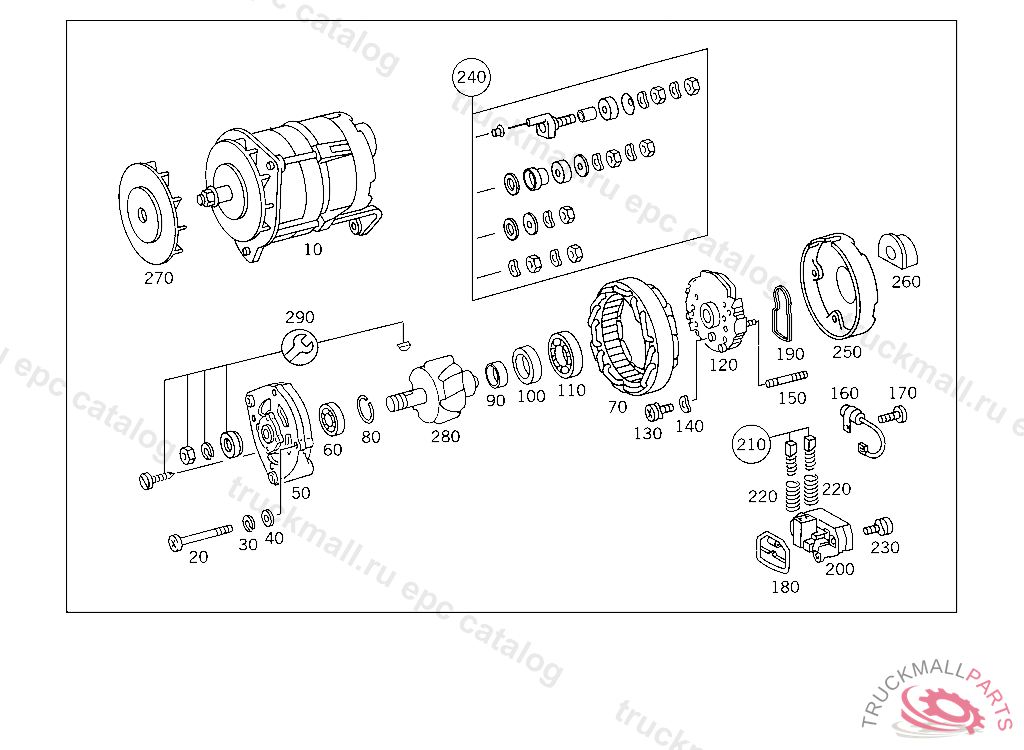

Поз.
Артикул
Описание
10
ALTERNATOR28V/140A
10
ALTERNATOR , Replaced By: A0081547802
10
ALTERNATOR , Replaced By: A0111545002
10
ALTERNATOR , Replaced By: A0091540802
20
SCREW , Replaced By: A0009907721
20
SCREW
30
LOCK WASHER
40
WASHERTO 008 154 78 02
50
BEARING
60
BALL BEARING
70
COIL
80
SNAP RING
90
SPACER RING
100
SEAL RING
110
CYLINDR. ROLLER BEARING
120
RECTIFIERTO 009 154 08 02,008 154 78 02
120
RECTIFIERTO 007 154 28 02
130
SCREW
130
SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT
130
SCREW T-FITTING TO BRACKET M4X25
140
SPRING WASHER ALTERNATOR CONNECTION D+
150
STUD
160
CONDENSER
170
SCREW APPARATUS PLATE TO CAB,K 062140
180
GASKET
190
GASKET
200
REGULATOR AND CUT-OUT
200
REGULATOR AND CUT-OUT , Replaced By: A0021549606
210
CARBON BRUSH SETTO 008 154 78 02
210
CARBON BRUSH SETTO 007 154 28 02,009 154 08 02
220
SPRING
230
SCREW REGULATOR MOUNTING TO 009 154 07 02
230
COMBINATION BOLT
230
SCREW , Replaced By: N007985004130
240
REPAIR KIT TERMINAL
250
COVER
260
BOOTTO 008 154 78 02
270
FAN
270
FANTO 011 154 50 02
280
ROTOR
290
REPAIR KIT ROTOR TO 007 154 28 02
290
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT BATTERY CABLE
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT , Replaced By: N304032008006
999
SCREW SUPPORT TO CYLINDER CRANKCASE M 20X25
999
SCREW , Replaced By: N304017008027
999
SCREW EXHAUST MANIFOLD TO CYLINDER HEAD
999
SCREW , Replaced By: N000933008134
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
WASHER , Replaced By: N000125008443
999
ALTERNATOR
999
STIFFENING ALTERNATOR
999
MOUNTING PLATE ALTERNATOR
999
BUSHING
