Поз.
Артикул
Описание

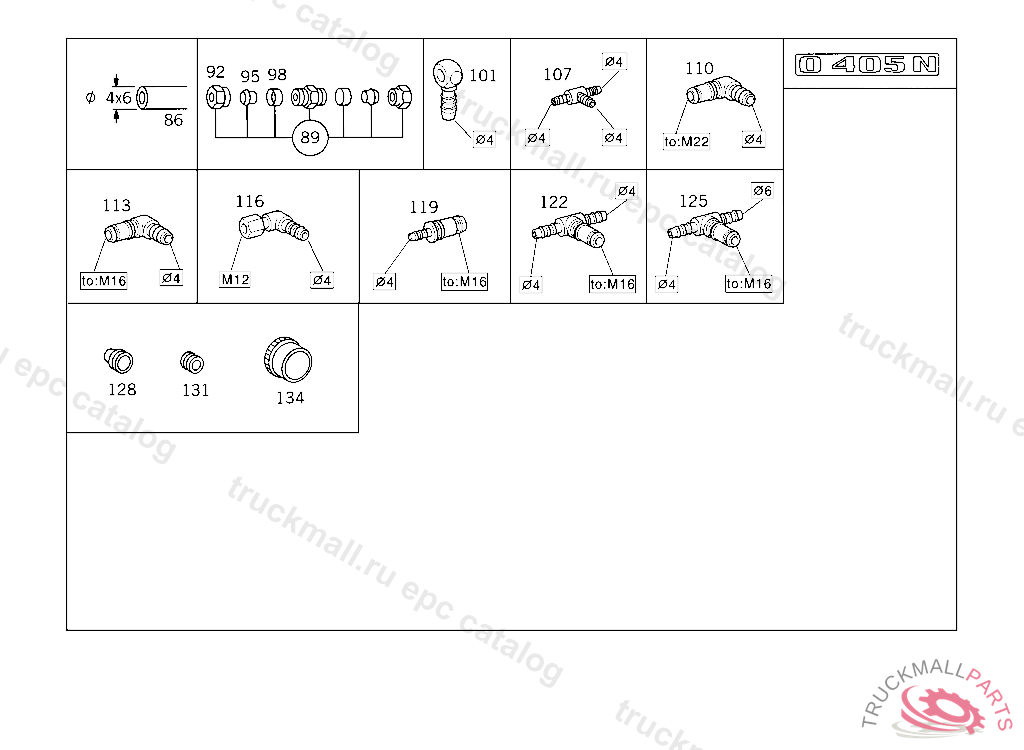

86
PLASTIC PIPE RISING PIPE 4X6 MM
86
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
89
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
92
UNION NUT
95
GLAND , Replaced By: A0019901667
98
SLEEVE LEAK LINE
101
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
101
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
101
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
101
BANJO UNION , Replaced By: N000000000364
107
DISTRIBUTOR HOSE WIDTH, 6 MM
110
ELBOW FITTING HOSE WIDTH, 4 MM,TO M 22
113
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
113
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
116
ELBOW FITTING
119
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
119
CONNECTOR , Replaced By: A0029905378
122
T-FITTING , Replaced By: A0059903170
122
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM / 4MM, VOSS 230
125
T-FITTING HOSE WIDTH, 6/4 MM ,TO M 16
125
T-FITTING , Replaced By: A0059903270
128
GROMMET
134
PLUG
134
PLUG REAR PANEL
134
PLUG TO PLUG THE FREE BORES IN INSTRUMENT PANEL
999
FITTING BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
