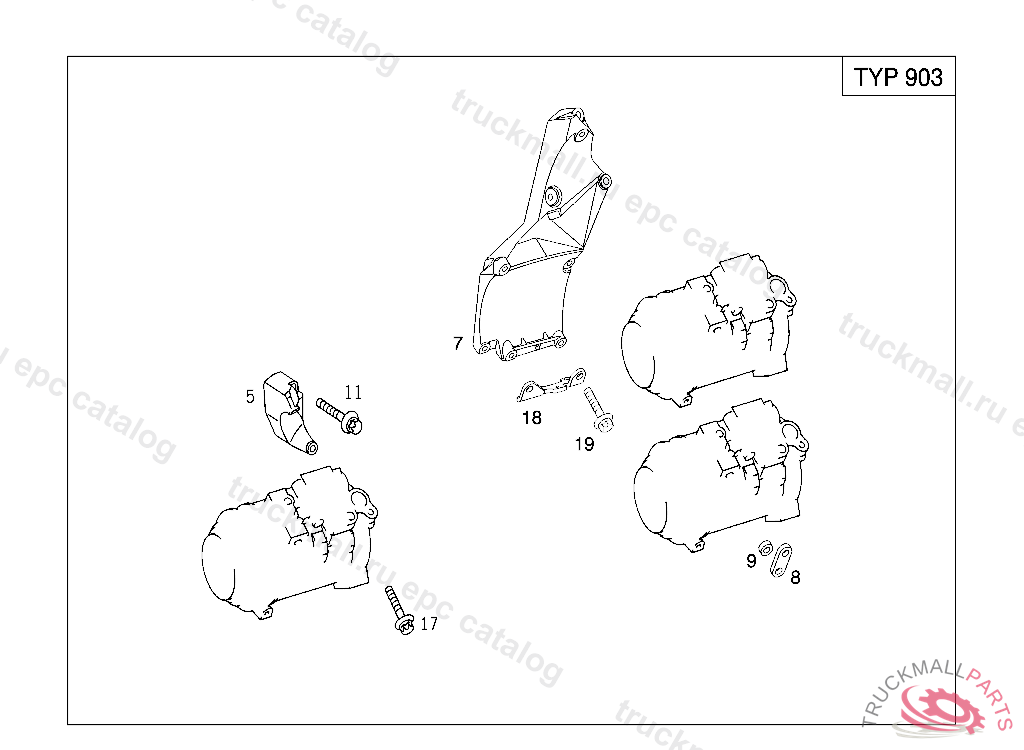

OM 612 DE LA - 612.981 MOTOR IDENT-NR. 6129XX 5 - 13 POWER STEERG.PUMP,REFRIG.COMPRESSOR
Поз.
Артикул
Описание
5
SUPPORT REFRIGERANT COMPRESSOR, 163 A 299267 163 X 755659 203 A 237174 203 F 177685 203 R 028782 210 B 438527 210 X 065665 463 X 127404 902 - 904 337627 SEE CHASSIS PARTS KIT FOR "FROM VIN" NO.
7
SUPPORT
8
BRACKET
9
SPACER RING , Replaced By: A1089900440
11
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
17
HEXALOBULAR BOLT UNDERRUN PROTECTION TO CROSS MEMBER M8X90
18
BRACKET
19
SCREW BRACKET TO SIDE MEMBER M8X20
