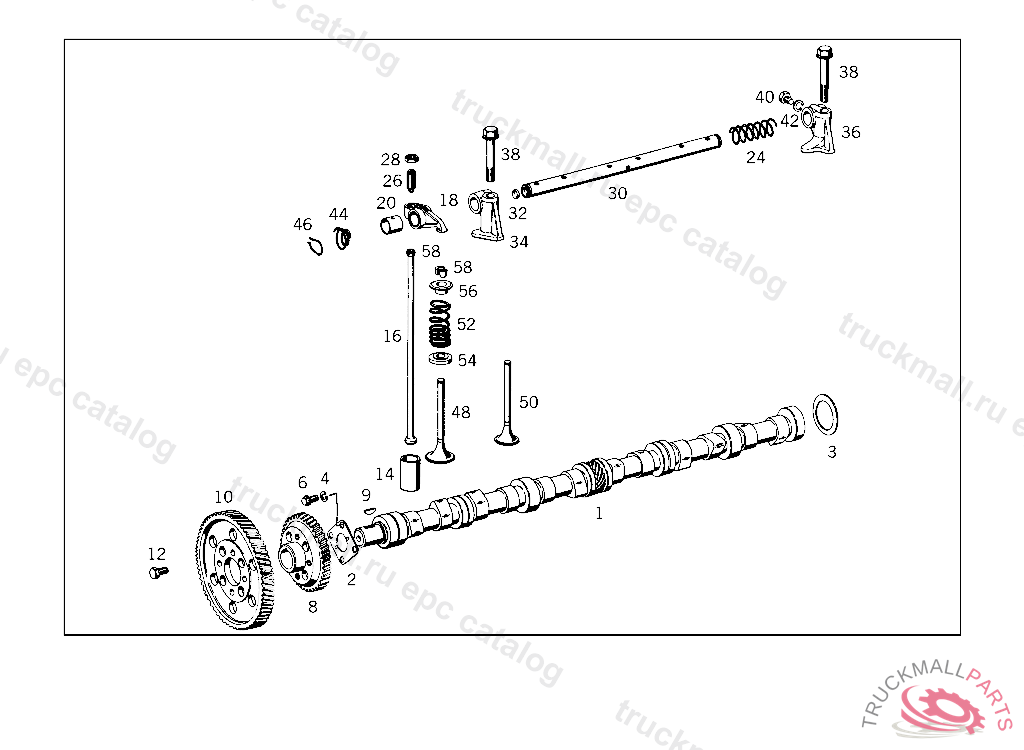

Поз.
Артикул
Описание
1
CAMSHAFT
2
THRUST WASHER
2
THRUST WASHER
3
SPACER WASHER
4
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
6
SCREW COVER PLATE TO COVER PLATE
6
SCREW , Replaced By: A3529900704
6
SCREW COVER PLATE TO COVER PLATE
8
DRIVE GEAR , Replaced By: A3270770214
8
DRIVE GEAR ,006861, Replaced By: A3600770014, +001A3600520001
8
DRIVE GEAR , 006862
9
WOODRUFF KEY CRANKSHAFT
10
CAMSHAFT GEAR ,000759, Replaced By: A3600520001, +001A3600770014
10
CAMSHAFT GEAR
12
SCREW BRACKET TO CONSOLE
12
SCREW SUPPORT TO MOUNTING PLATE,D 180260
14
VALVE TAPPET
16
PUSH ROD
18
ROCKER ARM
18
ROCKER ARM , Replaced By: A3270500633
20
BUSHING
24
SPRING
26
SET SCREW ROCKER ARM
28
NUT , Replaced By: A4229900051
28
NUT
30
ROCKER ARM SPINDLE
32
EXPANSION PLUG BELL HOUSING
34
ROCKER ARM BRACKETNO.1,NO.3,NO.4,NO.6
36
ROCKER ARM BRACKETNO.2,NO.5
38
SCREW
40
SCREW
42
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
44
SPRING SHORT,ROCKER ARM SPACING
46
SPRING
48
INTAKE VALVE
48
INTAKE VALVE , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 103937, Replaced By: A3600530001
48
INTAKE VALVE , Replaced By: A3600500326
50
EXHAUST VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3600500227
50
EXHAUST VALVE
52
VALVE SPRING
54
SPACER RING
56
SPRING RETAINER
58
VALVE COLLET
999
ROCKER ARM , Replaced By: A3600500733
999
CAMSHAFT ,002875, Replaced By: A3270513201, +001A3270520062
999
CAMSHAFT ,002875, Replaced By: A3270513201, +001A3270520062
999
SCREW , Replaced By: A3129900004
