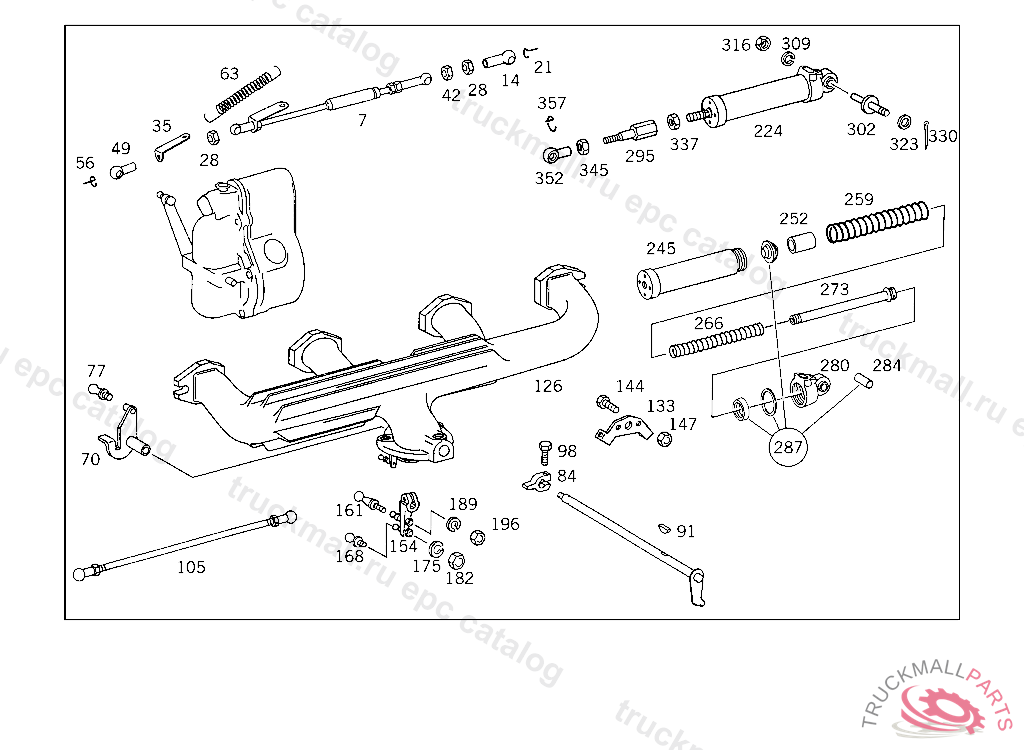

Поз.
Артикул
Описание
7
ROD
14
BALL SOCKET PULL ROD TO LEVER
21
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
28
NUT
35
BRACKET
42
NUT
49
BALL SOCKET AT CONTROL LEVER
56
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
63
SPRING
63
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
70
LEVER EXHAUST BRAKE
77
BALL PIVOT LEVER
77
BALL PIVOT , Replaced By: A3129910120
84
FOLLOWER LEVER ,082680
91
WOODRUFF KEY CONTROL LEVER TO BRACKET
98
SCREW OVERLOAD PROTECTOR TO BRACKET
105
ROD , 032,033,040,041,132,133,140,141 UP TO ENGINE 031699
126
EXHAUST MANIFOLD
133
BRACKET THROTTLE VALVE STOP
144
SCREW LINES TO ENGINE
147
NUT THROTTLE VALVE STOP
154
LEVER THROTTLE VALVE, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 805185
154
LEVER , Replaced By: A3441407125
161
BALL PIVOT ,805185
168
BALL PIVOT , Replaced By: N071803013102
175
LOCK WASHER RAIL TO BATTERY SUPPORT
182
NUT LEVER TO SHIFTING SHAFT
189
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
196
NUT
224
CYLINDER EXHAUST BRAKE KNORR
224
CYLINDER
224
CYLINDER EXHAUST BRAKE SCHRADER
245
BRAKE MASTER CYLINDER
252
SPRING RETAINERTO 345 430 73 26
259
SPRINGTO 345 430 73 26
266
SPRINGTO 345 430 73 26
273
PISTONTO 345 430 73 26
280
CYLINDER COVERTO 345 430 73 26
284
BUSHINGTO 345 430 00 26
284
BUSHINGTO 001 260 03 63
287
REPAIR KITTO 345 430 73 26
287
REPAIR KITTO 345 430 00 26
287
REPAIR KIT , Replaced By: A0004306226
287
REPAIR KIT , Replaced By: A0004305526
295
INTERMEDIATE PIECE. ROD
302
PIN COMPRESSED AIR CYLINDER
309
LOCK WASHER RAIL TO BATTERY SUPPORT
316
NUT ,B 884219
323
WASHER TRAILER PLUG SOCKET TO BRACKET
330
COTTER PIN PULL ROD TO SHIFTING SHAFT
337
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
345
NUT ,B 884219
352
BALL SOCKET POWER CYLINDER
357
SECURING CLIP DUMPER PUMP, UP TO IDENT NO. 4 473926 FROM IDENT NO. MICROFICHE MODEL 714.0
999
BALL PIVOT ,805186
999
LEVER
999
SPRING RELEASE SPRING
999
BALL PIVOT , Replaced By: N071803010206
999
SPACER TUBE
999
LEVER , 912 FROM ENGINE 031700 932 FROM ENGINE 001668 ON LK 1113 WITH CAB 814 FROM CHASSIS 12326709 344.963,991 ENGINE ONLY APPLICABLE TO MECHANICALLY OPERATED EXHAUST BRAKE
999
BALL PIVOT
