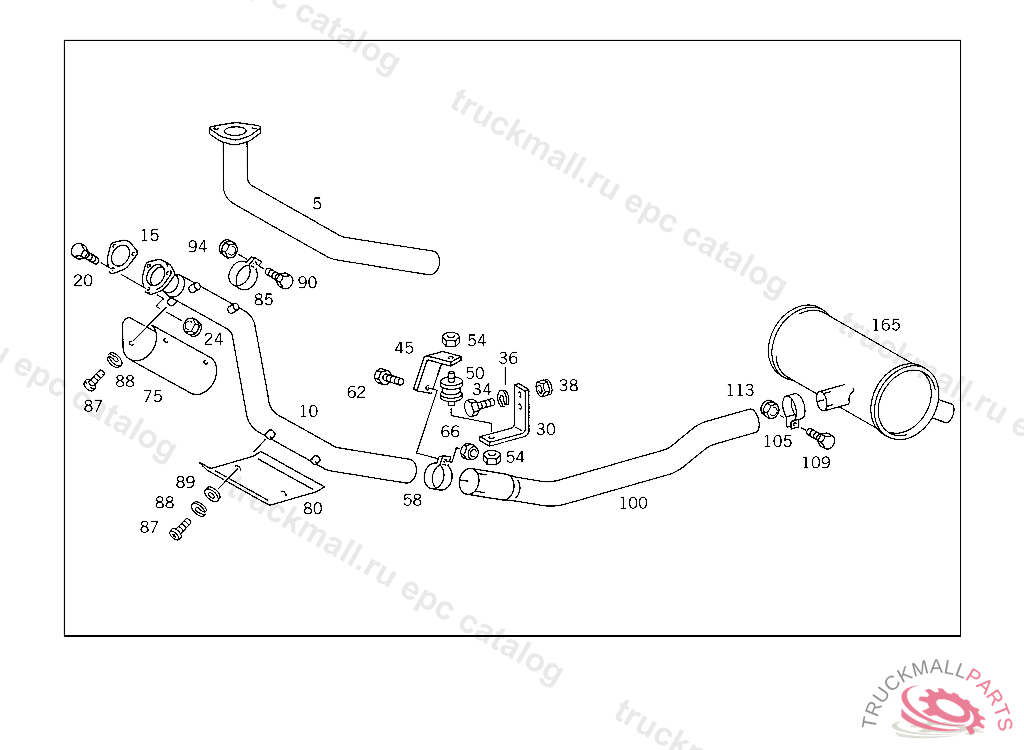

Поз.
Артикул
Описание
10
EXHAUST PIPE FRONT,FRONT PART,4 962876
15
FLANGE GASKET EXHAUST PIPE TO EXHAUST MANIFOLD
15
FLANGE GASKET , Replaced By: A6004920080
20
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
24
NUT CONNECTOR TO EXHAUST MANIFOLD
30
BRACKET EXHAUST PIPE TO CROSS MEMBER,5 433230
30
BRACKET STEP, TO BE ADAPTED DURING ASSEMBLY
34
SCREW END PIECE TO EXHAUST PIPE M 10X25
36
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
38
NUT BRACKET TO SUPPORT AND TO END PIECE
45
BRACKET EXHAUST PIPE,5 433230
45
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 433229, Replaced By: A3464920319, +001A3464911741
50
RUBBER MOUNTING
54
NUT STRAP TO BRACKET
54
NUT , Replaced By: N910113010000
58
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
62
SCREW REAR EXHAUST PIPE TO MUFFLER
66
NUT STRAP TO BRACKET
66
NUT , Replaced By: N910113010000
75
PROTECTIVE PLATE FRONT EXHAUST PIPE
75
PROTECTIVE PLATE FRONT EXHAUST PIPE
75
PROTECTIVE PLATE FRONT EXHAUST PIPE,4 841972
80
PROTECTIVE PLATE FRONT EXHAUST PIPE,4 962876
85
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
85
CLAMP , Replaced By: N071555100501
87
SCREW PROTECTIVE PLATE TO EXHAUST PIPE M 8X16,TO 346 495 04 30
87
SCREW PROTECTIVE PLATE TO EXHAUST PIPE M 8X16,TO 346 495 04 30
88
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
88
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
89
WASHER EXHAUST MUFFLER TO STRAP
89
WASHER , Replaced By: N000125008443
90
SCREW BRACKET TO SIDE MEMBER
90
SCREW , Replaced By: N304017010002
94
NUT STRAP TO BRACKET
94
NUT , Replaced By: N910113010000
100
FRONT EXHAUST PIPE FRONT,REAR PART
105
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
109
SCREW BRACKET TO SIDE MEMBER
109
SCREW , Replaced By: N304017010002
113
NUT STRAP TO BRACKET
113
NUT , Replaced By: N910113010000
165
EXHAUST MUFFLER ,4 858539
999
CLAMP , Replaced By: A3874900041
999
PROTECTIVE PLATE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3464900330
999
EXHAUST PIPE ,4 841972, Replaced By: A3464900419, +002A3464920430
999
EXHAUST PIPE ,4 8419734 962875, Replaced By: A3464900519, +001A3464920630
999
SCREW BRACKET TO SIDE MEMBER M 12X40
