Поз.
Артикул
Описание

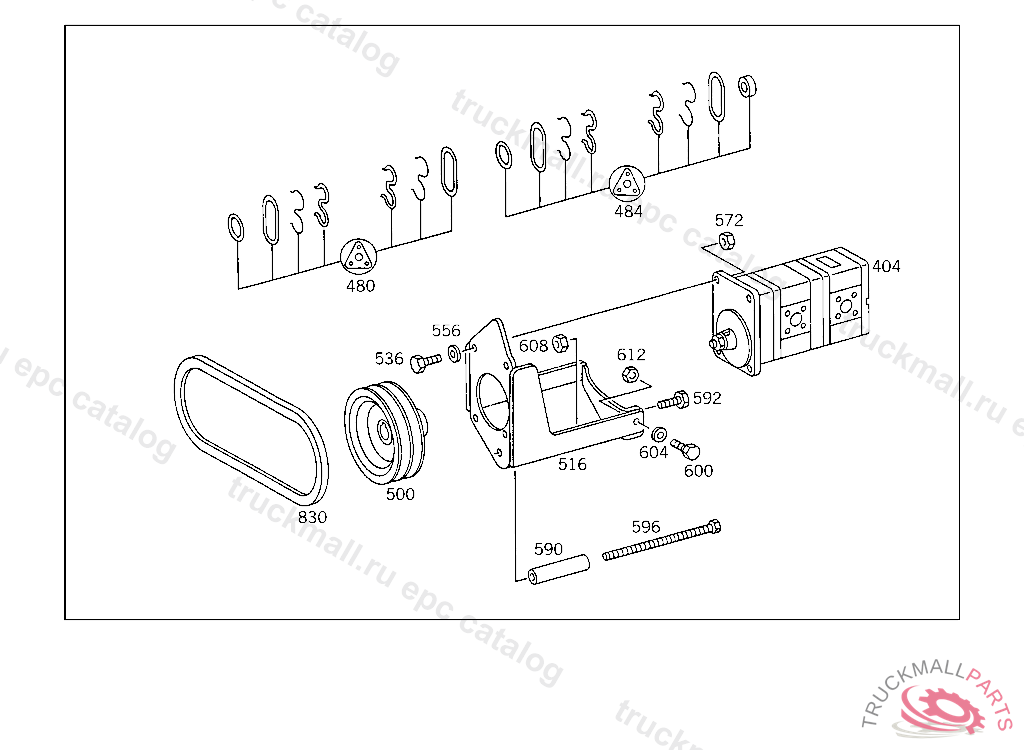

404
HYDRAULIC PUMPBOSCH
480
REPAIR KIT GASKET KIT
484
REPAIR KIT (GASKET KIT),HYDRAULIC PUMP
500
PULLEY HYDRAULIC PUMP
516
BRACKET (CONSOLE),HYDRAULIC PUMP
536
SCREW , Replaced By: N304017008018
536
SCREW SUPPORT TO FENDER
556
WASHER EXHAUST MUFFLER TO STRAP
556
WASHER , Replaced By: N000125008443
572
NUT SHIFTING TUBE TO TRANSMISSION
590
SPACER TUBE CONSOLE TO ENGINE CROSS MEMBER
592
SCREW SHACKLE TO TORSION BAR,5 904661
596
SCREW BEARING BRACKET TO AIR-SPRING-BELLOWS SUPPORT M 12X110
600
SCREW BRACKET TO EXHAUST PIPE BRACKET
600
SCREW , Replaced By: N304017008024
604
WASHER , Replaced By: A1403521376
604
WASHER DUMPING PLATFORM MOUNTING
608
NUT PLATFORM MOUNTING
612
NUT
830
V-BELT SET2 PIECES 12.5X1025
830
V-BELT REFRIGERANT COMPRESSOR 12.5X1125 MM, 309.370-391 FROM CHASSIS 010600, 309.400-426 FROM CHASSIS 076956, 310.300-326 FROM CHASSIS 012889, 310.400-426 FROM CHASSIS 00 0001
830
V-BELT SET2 PIECES 13X1025
830
V-BELT
830
V-BELT SET2 PIECES
830
V-BELT
830
V-BELT TOOTHED,SET2 PIECES 12.5X1075
830
V-BELT
830
V-BELT
999
POINTER , Replaced By: A3520321515
999
THRUST RING
999
PULLEY , Replaced By: A3520352312
999
PULLEY , Replaced By: A3662051308
999
BEARING RING DRIVE, NOT USED
999
NUT ALTERNATOR
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 810351, Replaced By: A3661550127
999
BUSHING
999
SCREENING PLATE , Replaced By: A3522030192
999
ENGINE SUPPORT , Replaced By: A3622200016
999
ENGINE SUPPORT FRONT
999
BEARING BRACKET , Replaced By: A3522300139
999
FLANGE PROPELLER SHAFT TO DRIVE,518930
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 775696, Replaced By: A3622300040
999
BRACKET
999
PULLEY , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 4 629840, Replaced By: A3522361510
999
WASHER , Replaced By: A3149900940
999
WASHER , Replaced By: N000433010510
999
WASHER VIBRATION ABSORBER TO BRACKET
999
NARROW V-BELT , Replaced By: A0039970592
999
CYLINDER HEAD , Replaced By: A0001303619, +001N070614010021
999
BALL BEARING PULLEY
999
CLAMP , Replaced By: N916016011202
999
COMPRESSOR , Replaced By: A0031312501
999
BALL BEARING , Replaced By: A0039818025
999
NUT , Replaced By: A0029908051
999
V-BELT , Replaced By: A0049970192
999
V-BELT , Replaced By: A0039970192
999
V-BELT , Replaced By: A0099976892
999
V-BELT12.5X1725
999
V-BELT , Replaced By: A0049976992
999
V-BELT , Replaced By: A0099976992
999
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
999
OIL FILLER NECK , Replaced By: A3520106164
999
VIBRATION ABSORBER VIBRATION ABSORBER
999
CRANKSHAFT , 044067, Replaced By: A3520305601, +001A3140350214
999
VIBRATION ABSORBER , Replaced By: A3520303403
