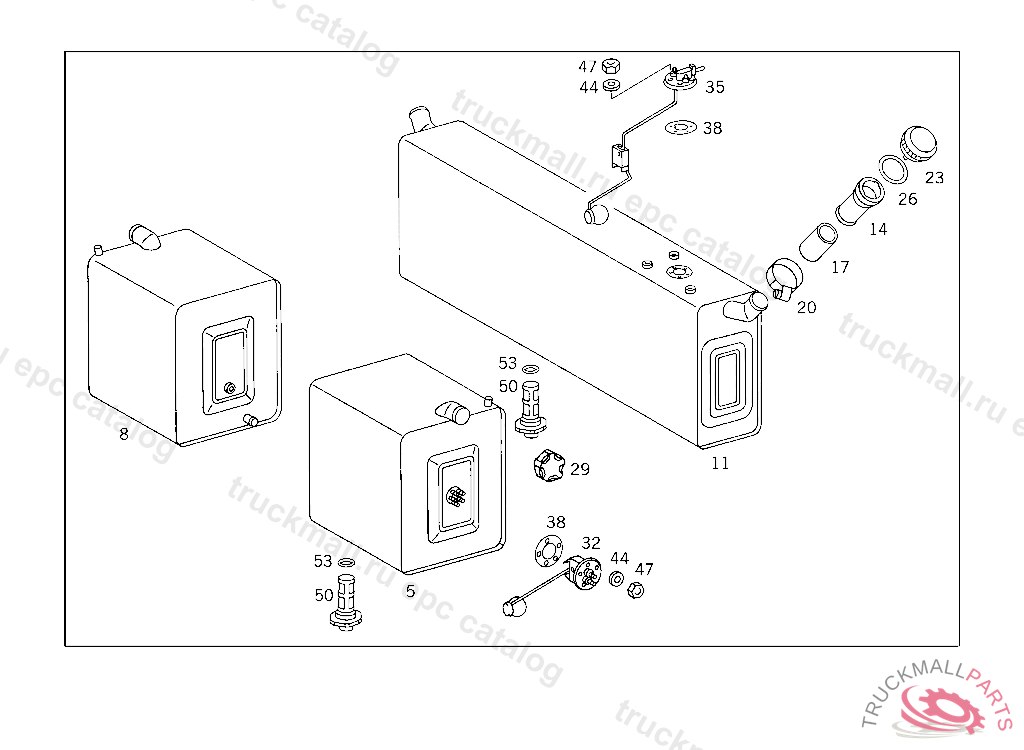

O 404 - 356.030 TO CHASSIS 069374 - 47 FUEL SYSTEM

11

FUEL TANK , Replaced By: A3564701601

11

FUEL TANK WITH SENDER UNIT 300 L

14

FILLER NECK

17

HOSE FILLER PIPE TO FUEL TANK, UP TO CHASSIS 005563,EXCEPT FOR 005452,005460,005468,005469,005476,005483,005484,005491,005492,005498,005499,005506,005513,005514, 005519,005520,005526-005528,005532-005536,005538-005543,005549-005551,005558,005559.

20

CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE

23

FILLER CAP , Replaced By: A0004700305

23

FILLER CAP

26

SEAL RING

35

SENDER UNIT FUEL GAUGE

38

GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK

44

SEAL RING SENDER UNIT AND COVER TO FUEL TANK

47

NUT TACHOGRAPH TO BRACKET

50

FUEL STRAINER FUEL TANK

53

SEAL RING FUEL STRAINER SCREEN
