Поз.
Артикул
Описание

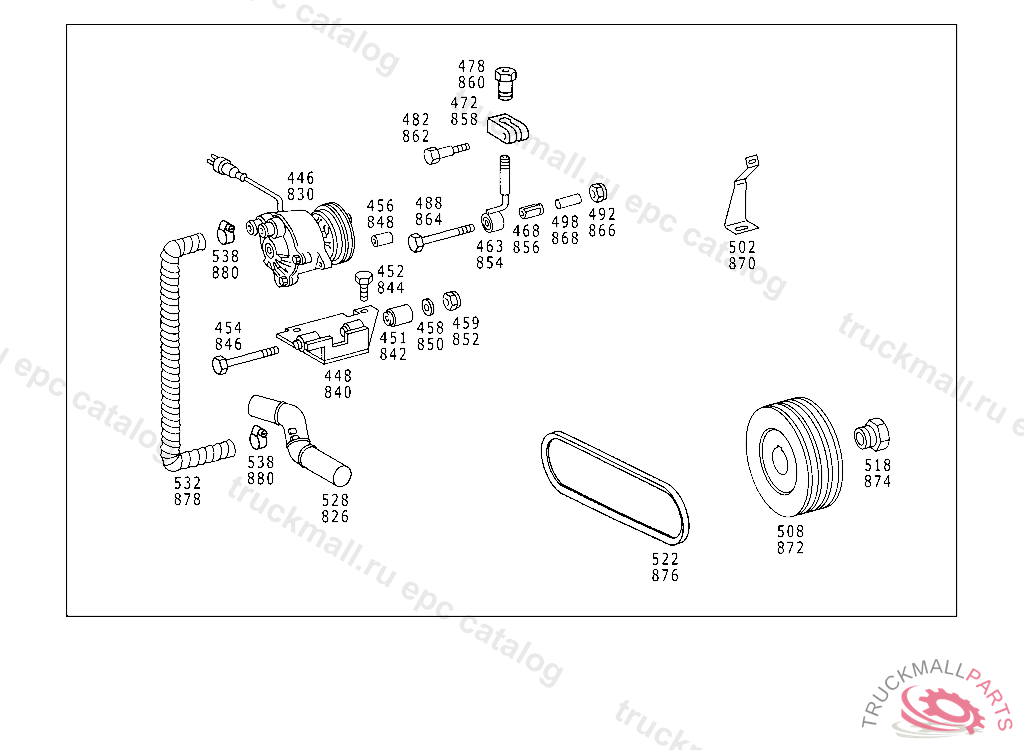

446
PUMP (AIR PUMP)
446
PUMP (AIR PUMP)
448
BRACKET AIR PUMP
448
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3574901540
451
BUSHING
452
SCREW BRACKET TO LEFT SIDE MEMBER
454
SCREW 3/2-WAY VALVE TO BRACKET
456
BUSHING AIR PUMP TO BRACKET
458
WASHER EXHAUST MUFFLER TO STRAP
458
WASHER , Replaced By: N000125008443
459
NUT , Replaced By: N304032008006
463
SCREW CLAMPING BOLT
468
BUSHING
472
CLAMPING PIECE TIGHTENER PULLEY
472
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
478
NUT TIGHTENER PULLEY TO LEVER
482
SCREW CLAMPING BOLT TO BRACKET
488
SCREW EXHAUST PIPE TO BRACKET,5 564360
492
NUT , Replaced By: N910113010000
492
NUT STRAP TO BRACKET
498
SPACER TUBE , 114.010 UP TO CHASSIS 076372,114.015,017 UP TO CHASSIS 108464,114.011 UP TO CHASSIS 012125,114.021 UP TO CHASSIS 008449,FROM C HASSIS:SEE SA 55954 114.022 UP TO CHASSIS 020828,114.023 UP TO CHASSIS 007891,115.010 UP TO CHASSIS 096927,115.015 UP TO CHASSIS 119272,FROM CHASS IS:SEE SA 55954
502
BRACKET OIL FILLER PIPE TO CYLINDER CRANKCASE
508
PULLEY AT ALTERNATOR
508
PULLEY AT ALTERNATOR
518
NUT AT ALTERNATOR
522
V-BELT
528
AIR INTAKE PIPE
528
AIR INTAKE PIPE
532
HOSE , ORDER BY THE METER
532
HOSE HOSE TO AIR INTAKE PIPE & TO AIR COMPRESSOR & ENGINE BREATHER,RESP., ORDER BY THE METER
538
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
538
CLAMP25-40X13 MM
538
CLAMP , Replaced By: N000000000667
538
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
826
AIR INTAKE PIPE
830
PUMP (AIR PUMP)
840
BRACKET AIR PUMP
840
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3574901540
842
BUSHING
844
SCREW BRACKET TO LEFT SIDE MEMBER
846
SCREW 3/2-WAY VALVE TO BRACKET
848
BUSHING AIR PUMP TO BRACKET
850
WASHER EXHAUST MUFFLER TO STRAP
850
WASHER , Replaced By: N000125008443
852
NUT , Replaced By: N304032008006
854
SCREW CLAMPING BOLT
856
BUSHING
858
CLAMPING PIECE TIGHTENER PULLEY
858
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
860
NUT TIGHTENER PULLEY TO LEVER
862
SCREW CLAMPING BOLT TO BRACKET
864
SCREW EXHAUST PIPE TO BRACKET,5 564360
866
NUT , Replaced By: N910113010000
866
NUT STRAP TO BRACKET
868
SPACER TUBE , 114.010 UP TO CHASSIS 076372,114.015,017 UP TO CHASSIS 108464,114.011 UP TO CHASSIS 012125,114.021 UP TO CHASSIS 008449,FROM C HASSIS:SEE SA 55954 114.022 UP TO CHASSIS 020828,114.023 UP TO CHASSIS 007891,115.010 UP TO CHASSIS 096927,115.015 UP TO CHASSIS 119272,FROM CHASS IS:SEE SA 55954
870
BRACKET OIL FILLER PIPE TO CYLINDER CRANKCASE
872
PULLEY AT ALTERNATOR
874
NUT AT ALTERNATOR
876
V-BELT
878
HOSE , ORDER BY THE METER
878
HOSE HOSE TO AIR INTAKE PIPE & TO AIR COMPRESSOR & ENGINE BREATHER,RESP., ORDER BY THE METER
880
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
880
CLAMP25-40X13 MM
880
CLAMP , Replaced By: N000000000667
880
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
SEPARATOR (WATER SEPARATOR)
999
VALVE COOLING AIR
999
VALVE
999
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
999
NOZZLE
999
AIR INTAKE PIPE , Replaced By: A3909970682
999
CONNECTOR HEATER PLUG
999
ACTIVATING AGENT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009890250
999
ACTIVATING AGENT
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
RUBBER BUFFER COVERING TO FRAME
999
FITTING LINE CONNECTION
999
CONSOLE EXHAUST MUFFLER
999
GROMMET LINE CONNECTION
999
SUPPORT REAR EXHAUST MUFFLER
999
BRACKET REAR EXHAUST PIPE,079546
999
CONNECTOR
999
BRACKET EXHAUST PIPE TO SUPPORT
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER ,076651
999
EXHAUST MUFFLER
999
EXHAUST PIPE REAR
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
LINE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
EXHAUST PIPE
999
VALVE PRESSURE RELIEF VALVE
999
PUMP (METERING PUMP)
999
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET
999
BRACKET
999
BRACKET AT BRACKET
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
999
FLEXIBLE METAL TUBE CONNECTOR
999
FLEXIBLE METAL TUBE FRONT LEFT
