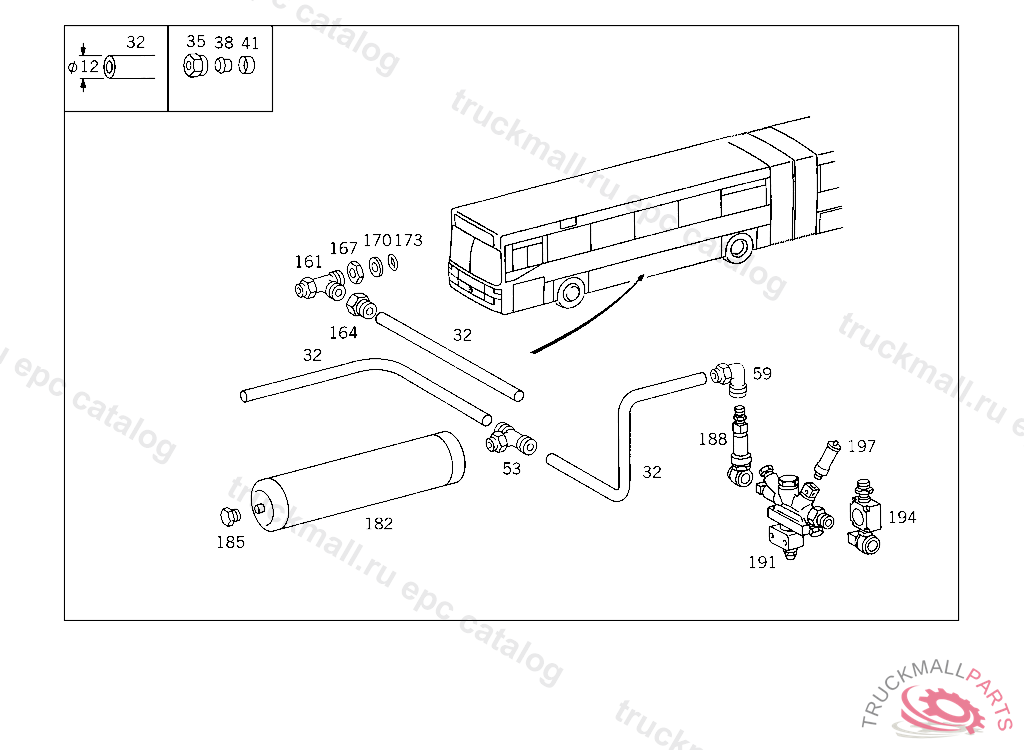

Поз.
Артикул
Описание
32
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
35
UNION NUT LINE CONNECTION
35
UNION NUT LINE CONNECTION, Replaced By: N000000006239
38
GLAND , Replaced By: A0019901967
38
SEAL CONE LINE CONNECTION
41
SLEEVE LINE CONNECTION
53
T-FITTING SUPPLY LINE FOR TRANSMISSION
59
ELBOW FITTING DELIVERY LINE TO PUMP
161
T-FITTING BETWEEN THE LINES
164
FITTING BRAKE LINE COUPLING,CONNECTION: "11,12"
167
NUT CHECK VALVE TO AIR RESERVOIR
170
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
173
O-RING CHECK VALVE TO AIR RESERVOIR
182
RESERVOIR35 BAR
185
SCREW PLUG HYDRAULIC LINE TO PUMP
188
AIR CLEANER
191
VALVE (PRESSURE RELIEF VALVE)
194
VALVE (SOLENOID VALVE)
197
VALVE (SAFETY VALVE)
999
SUPPORT
999
RESERVOIR
