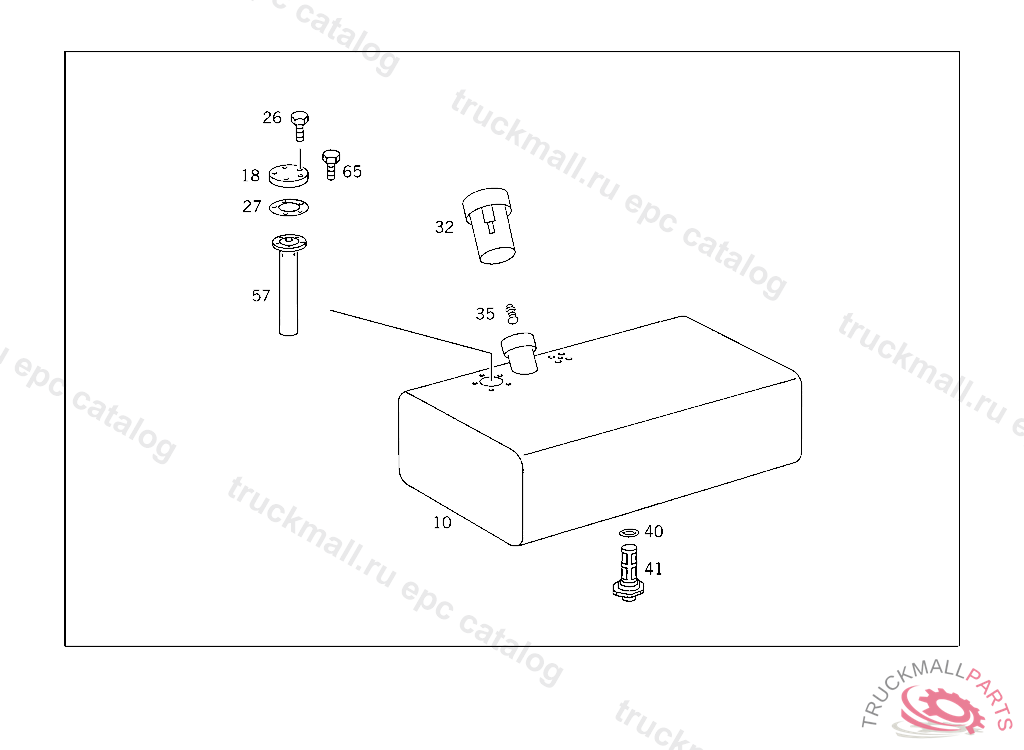

O 405 N 1 - 357.434 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
10
FUEL TANK , Replaced By: A3574703404
10
FUEL TANK , Replaced By: A3574702304
10
FUEL TANK
10
FUEL TANK265 L
18
COVER FUEL TANK
26
SCREW BRACKET TO TAIL LAMP BRACKET
27
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
32
FILLER CAP , TO BE ADAPTED DURING ASSEMBLY
35
VALVE FUEL TANK
40
SEAL RING FUEL STRAINER SCREEN
41
FUEL STRAINER FUEL TANK
41
FUEL STRAINER AT TANK
57
SENDER UNIT FUEL GAUGE
65
SCREW , Replaced By: N304017005002
65
SCREW LEVER TO SHAFT
