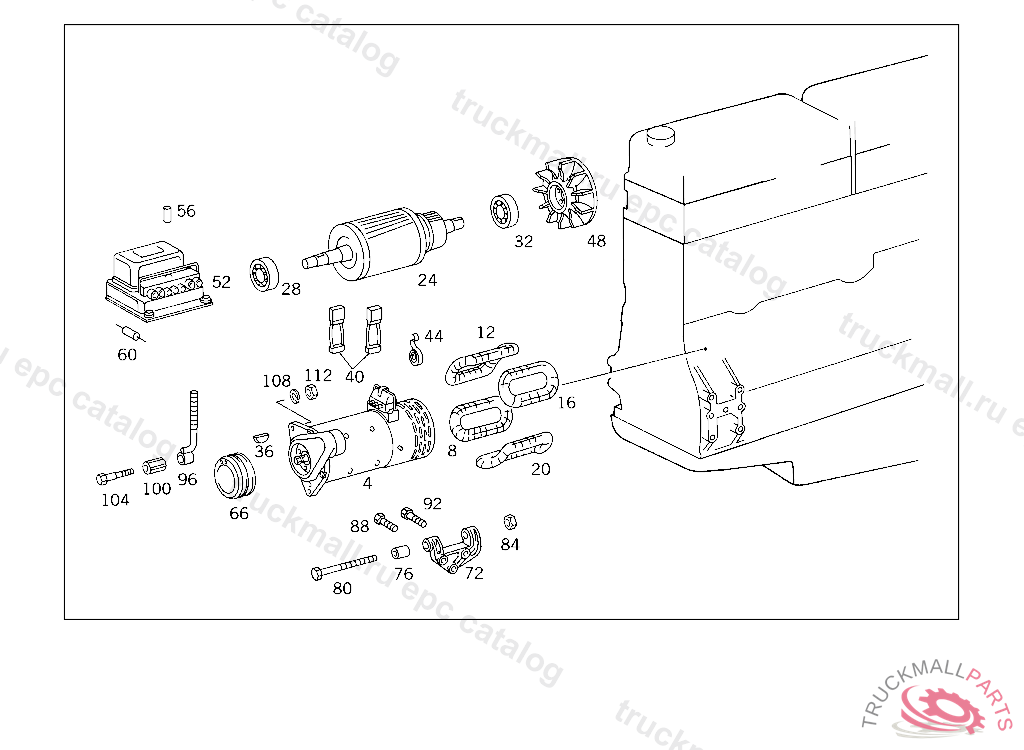

Поз.
Артикул
Описание
4
ALTERNATOR *** 24 V/38 A
8
COIL
12
COIL
16
COIL
20
COIL
24
ARMATURE
28
GROOVED BALL BEARING
32
GROOVED BALL BEARING
36
WOODRUFF KEY POWER STEERING PUMP
40
CARBON BRUSH SET ,9500212
44
SPRING , Replaced By: A0001541193
44
SPRINGTO 004 154 75 02
44
SPRING
48
FAN
52
REGULATOR AND CUT-OUT
56
FUSE50 A
60
RESISTOR
66
PULLEY
72
BRACKET ALTERNATOR
76
BUSHING
80
SCREW STRAP TO BRACKET
84
NUT AIR CLEANER ELEMENT
88
SCREW RELEASE LEVER TO SHAFT
88
SCREW , Replaced By: N304017012018
88
SCREW , Replaced By: N000933012102
92
SCREW
92
SCREW MOUNTING PLATE TO SUBSTRUCTURE M 12X40, FIXTURE A/C COMPRESSOR MAKE KONVEKTA
96
CLAMPING BOLT
100
BUSHING
100
BUSHING
104
SCREW
108
WASHER RADIATOR TO RUBBER MOUNTING
112
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SPRING , Replaced By: A0001541493
