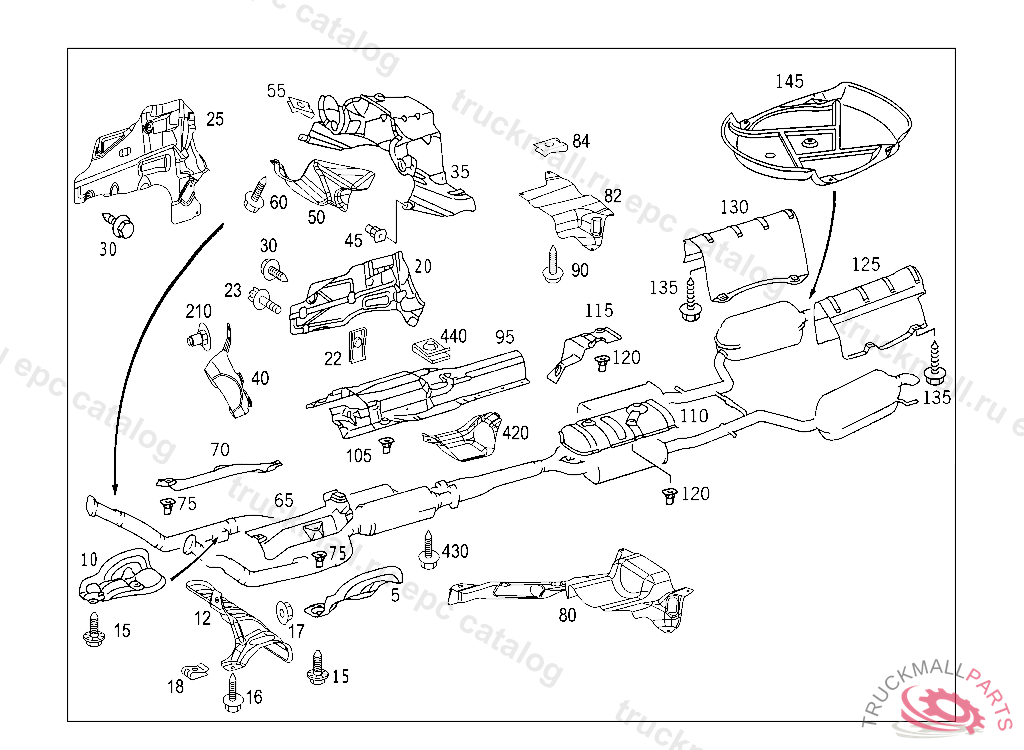

Поз.
Артикул
Описание
5
SCREENING FRAME-TYPE INTEGRAL SUPPORT,LEFT
12
SCREENING AT STEERING GEAR RIGHT
16
TAPPING SCREW SCREENING ON FRAME-TYPE INTEGRAL SUPPORT 4.8X16
17
NUT , Replaced By: N913023006001
18
LOCK NUT BRACKET MOUNTING
20
SCREENING LEFT FRONT SIDE MEMBER
22
LOCK NUT. SPRING NUT MOUNTING PARTS
23
HEXAGON HEAD BOLT LINE MOUNTING M6X10
25
SCREENING RIGHT FRONT SIDE MEMBER
30
SCREW ANTINOISE CAPSULE,TOP,TO CAB SIDE MEMBER, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
30
SCREW
35
SCREENING FIRE WALL
35
SCREENING FIRE WALL
40
SCREENING BOOT TO STEERING
40
SCREENING BOOT TO STEERING
45
HEXAGON NUT W COLLAR BRACKET MOUNTING
50
SCREENING TO BATTERY SUPPORT POINT
55
LOCK INSTRUMENT PANEL TO PANELLING
60
SHEET METAL SCREW ALARM UNIT TO STRUT
65
SCREENING MAIN FLOOR,FRONT LEFT
70
SCREENING RIGHT FRONT FLOOR
75
HEXAGON NUT W COLLAR BRACKET MOUNTING
80
SCREENING BELOW GEAR LEVER
84
LOCK INSTRUMENT PANEL TO PANELLING
90
TAPPING SCREW RADIATOR GRILLE SHELL TO ENGINE HOOD 4.8X13
95
SCREENING TO TUNNEL ABOVE EXHAUST PIPE EXTENSION
105
HEXAGON NUT W COLLAR BRACKET MOUNTING
110
SCREENING CENTRAL MUFFLER,LEFT
110
SCREENING CENTRAL MUFFLER,LEFT
115
SCREENING CENTRAL MUFFLER,RIGHT
120
HEXAGON NUT W COLLAR BRACKET MOUNTING
125
SCREENING LEFT,ABOVE REAR MUFFLER
130
SCREENING RIGHT, ABOVE POSTERIOR MUFFLER
135
SCREW PANELLING TO SIDE MEMBER,BOTTOM
145
SCREENING SPARE WHEEL WELL
210
HEXAGON NUT W COLLAR BRACKET MOUNTING
