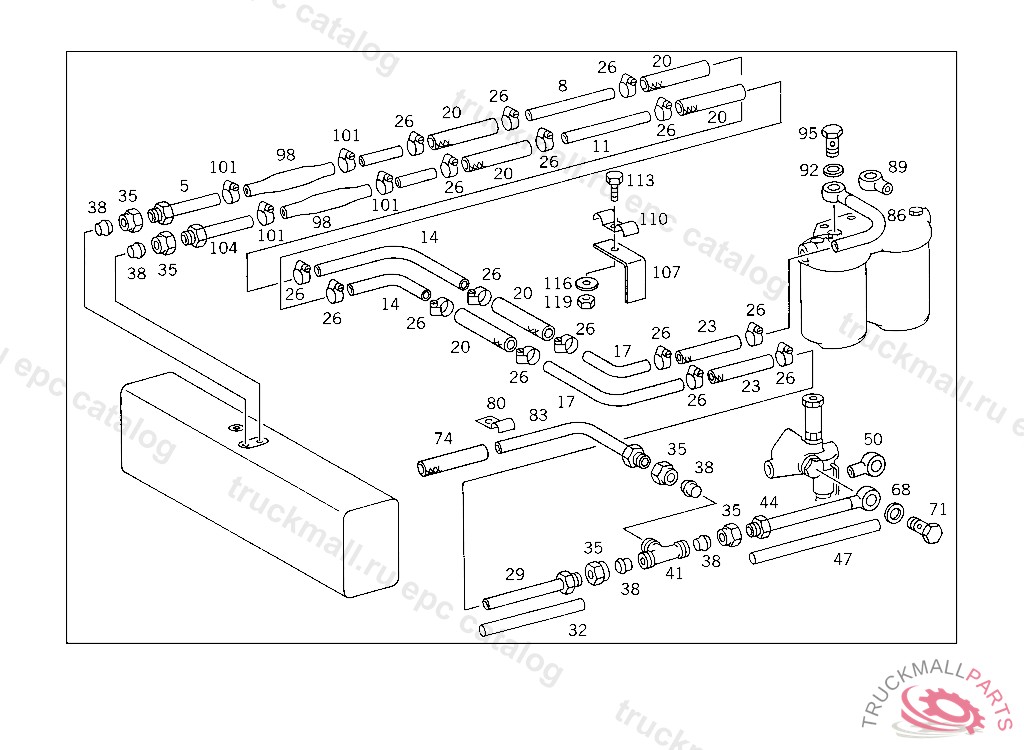

Поз.
Артикул
Описание
5
8
14
17
17
20
HOSE FEED LINE AND RETURN LINE
23
HOSE
26
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
26
CLAMP AS REQUIRED
32
35
NUT. UNION NUT RETURN
38
SEAL CONE , 344.058 UP TO SHASSIS 659793
41
T-FITTING
44
LINE FROM T-FITTING TO FUEL PUMP,C 059476
50
CONNECTOR FROM HOSE TO FEED PUMP, 344.058 UP TO SHASSIS 659793
68
SEAL RINGTO 000 553 03 05,000 553 18 05,
71
HOLLOW SCREW
74
HOSE , ORDER BY THE METER
74
HOSE , Replaced By: A3769978182
80
CLAMP LINE MOUNTING
83
LINE FROM HOSE TO T-FITTING,C 062326
86
LINE FROM FUEL FILTER TO CONNECTION FITTING,RETURN,C 059476
98
HOSE
101
CLAMP AS REQUIRED
101
CLAMP CONNECTION OF FUEL LINES ONE BELOW THE OTHER
104
107
BRACKET , Replaced By: A3812950440
110
CLAMP
113
SCREW OVERLOAD PROTECTOR TO BRACKET
116
WASHER , Replaced By: N009021006208
119
NUT PUMP TO BRACKET
