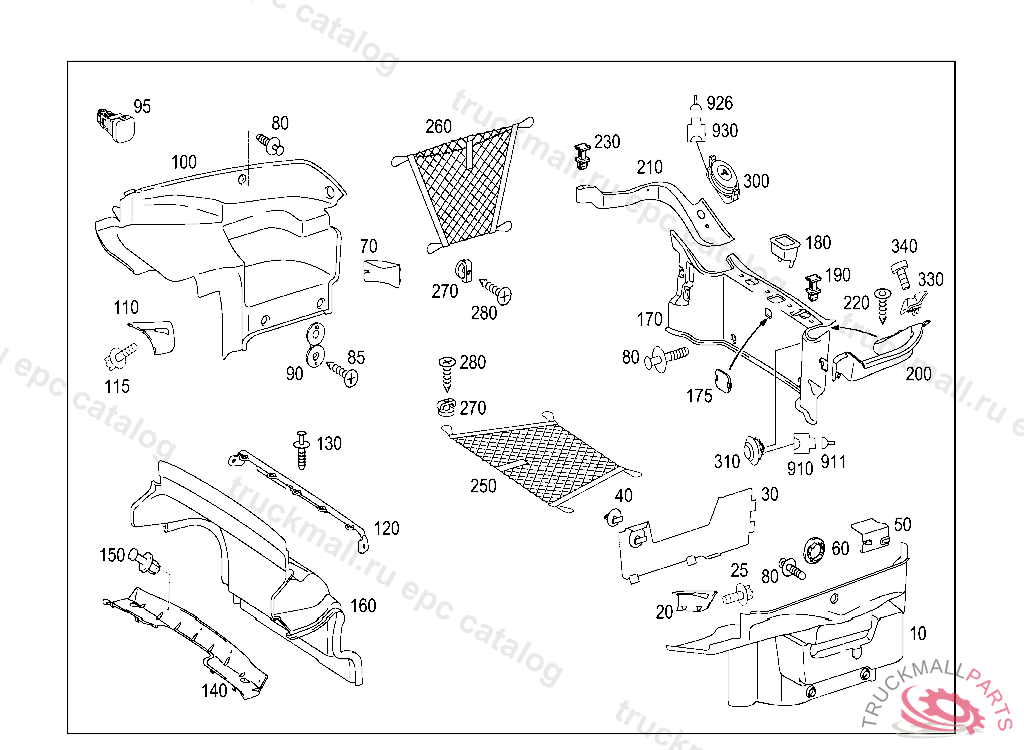

Поз.
Артикул
Описание
10
PANELING LUGGAGE COMPARTMENT,LEFT
10
PANELING LUGGAGE COMPARTMENT,LEFT
10
PANELING LUGGAGE COMPARTMENT,LEFT
10
PANELING
10
PANELING LUGGAGE COMPARTMENT,LEFT
20
COVER AT PANEL, LEFT
20
COVER AT PANEL, LEFT
25
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
30
COVER WARNING TRIANGLE,LEFT
30
COVER WARNING TRIANGLE,LEFT
40
BUTTON
50
FLAP AT PANEL, LEFT
60
COVER TO COVERING
70
FLAP ON TRIM,RIGHT
80
RIVET REAR LID PANELLING TO HINGE BRACKET, NO.9C75
85
SHEET METAL SCREW COVERING TO CAB 4.2X19
85
TAPPING SCREW
90
COVER ON TRUNK SILL AND LEFT LONG. MEMBER
90
CAP LINING TO LEFT LONGITUDINAL MEMBER
95
PLUG SOCKET WITH COVER,IN PANELLING,REAR LEFT WHEEL HOUSING
100
PANELING LUGGAGE COMPARTMENT,RIGHT
100
PANELING LUGGAGE COMPARTMENT,RIGHT
100
PANELING LUGGAGE COMPARTMENT,RIGHT
100
PANELING LUGGAGE COMPARTMENT,RIGHT, Replaced By: A2306902625, +001A2306931791
110
COVER ON TRIM,RIGHT
110
COVER ON TRIM,RIGHT
115
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
120
RAIL ON TANK COVERING
130
EXPANSION RIVET GUIDE TO PANELLING 6 MM, 9051QFT216L3005 BLACK
140
RAIL ON PANELING TANK PARTITION WALL
150
PUSH BUTTON COVERING
160
PANELING TANK PARTITION WALL
160
PANELING TANK PARTITION WALL
170
PANELING LOADING EDGE
170
PANELING LOADING EDGE
170
PANELING LOADING EDGE
170
PANELING LOADING EDGE
175
COVER IN PANELING TRUNK SILL
180
RIGHT DAMPING FOR STRIKER TO TUBULAR FRAME
190
RIVET REAR BODY PANEL,BOTTOM,A 561621I
200
PANELING TO TUBULAR FRAME, LEFT
200
PANELING TO TUBULAR FRAME, LEFT
210
PANELING TO TUBULAR FRAME, RIGHT
210
PANELING TO TUBULAR FRAME, RIGHT
220
SCREWM 4 X 25
220
HEXALOBULAR BOLT LIGHT SWITCH M4X6
230
RIVET REAR BODY PANEL,BOTTOM,A 561621I
250
LUGGAGE NET
250
LUGGAGE NET AT TANK PARTITION PANEL
260
LUGGAGE NET SIDE NET TO LONGITUDINAL MEMBER AND ROOF CONSOLE, RIGHT
270
HOOK LOAD ANCHORAGE, Replaced By: A1998140151
280
TAPPING SCREW MOUNTING HOOKS FOR LUGGAGE NET
300
SWITCH LOAD ASSIST FUNCTION
310
SWITCH LUGGAGE COMPARTMENT INTERIOR CONTROL, A 23717420010831 F 16659520010831
330
STOP , F 06390920030904
330
STOP , F 06391020030904
340
HEXALOBULAR BOLT GROUND LINE TO GRID HEATER M6X25
910
PLUG HOUSING BUS NODE ROOF 6-PIN MQS,N70/3
911
CONTACT BUSHINGR 27, 0.75 MM2
926
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
930
PIN BUSHING HOUSING WARNING DEVICE
