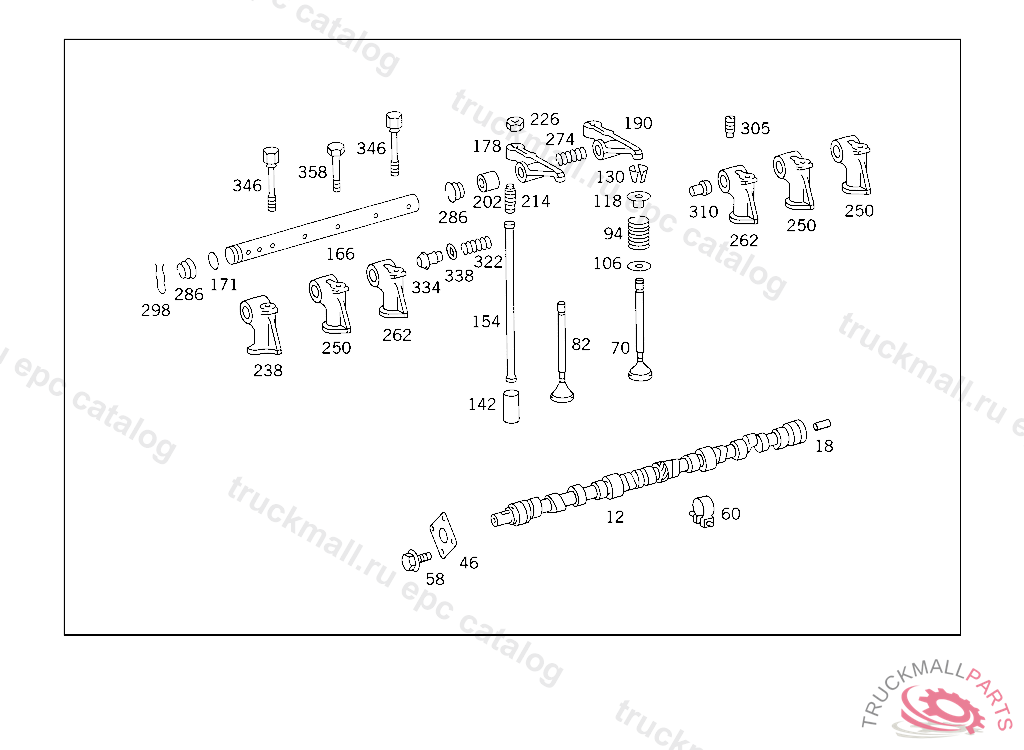

Поз.
Артикул
Описание
12
CAMSHAFT
18
BALL TO PLUG OIL CONNECTION TO AIR COMPRESSOR
46
THRUST WASHER CAMSHAFT FIXING, 340.930 FROM ENGINE 085456 ONLY APPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
58
SCREW COVER PLATE TO COVER PLATE
60
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
60
CLAMP
70
INTAKE VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 331411YEAR OF MANUFACTURE 1994, Replaced By: A3660501226, +001A3660533531
82
EXHAUST VALVE
82
EXHAUST VALVE
82
EXHAUST VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 331411YEAR OF MANUFACTURE 1994, Replaced By: A3660500627
94
VALVE SPRING
106
WASHER VALVE SPRING
106
WASHER
118
SPRING RETAINER
130
VALVE COLLET
130
VALVE COLLET
142
VALVE TAPPET STANDARD 27.98 MM-27.99 MM
154
PUSH ROD
154
PUSH ROD
166
ROCKER ARM SPINDLE
171
EXPANSION PLUG LATERAL P.T.O. WITH REVERSE SPEED
178
ROCKER ARM LEFT NO.1,NO.3,NO.5,NO.7
178
ROCKER ARMNO. 1, NO. 3, NO. 5, NO. 7
190
ROCKER ARMNO.2,NO.4,NO.6,NO.7
190
ROCKER ARMNO. 2, NO. 4, NO. 6, NO. 8
202
BUSHINGTO 366 050 05 33,04 34
202
BUSHINGTO 352 050 06 34,352 050 10 33
214
BALL PIN ROCKER ARM
226
NUT
226
NUT , Replaced By: A4229900051
238
ROCKER ARM BRACKET OIL SUPPLY NO.1
250
ROCKER ARM BRACKETNO.2,5,6
262
ROCKER ARM BRACKET , Replaced By: A3520550210, +001N000417006001
274
SPRING LONG,ROCKER ARM SPACING
286
SPRING
298
SPRING
305
HEADLESS SETSCREW PLANET GEAR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
310
SPACER TUBE OUTSIDE
310
SPACER TUBE
310
SPACER TUBE
322
SPRING
322
SPRINGTO 312 055 05 33
334
SPACER TUBETO 312 055 05 53
334
SPACER TUBE INSIDE
334
OIL PIPE
338
SEAL RING
346
SCREW ROCKER SHAFT TO CYLINDER HEAD
358
SCREW , Replaced By: A0029903804
