Главная
›
Mercedes
›
ENGINE
›
OM 366 LA
›
377.968
›
01 ENGINE HOUSING
›

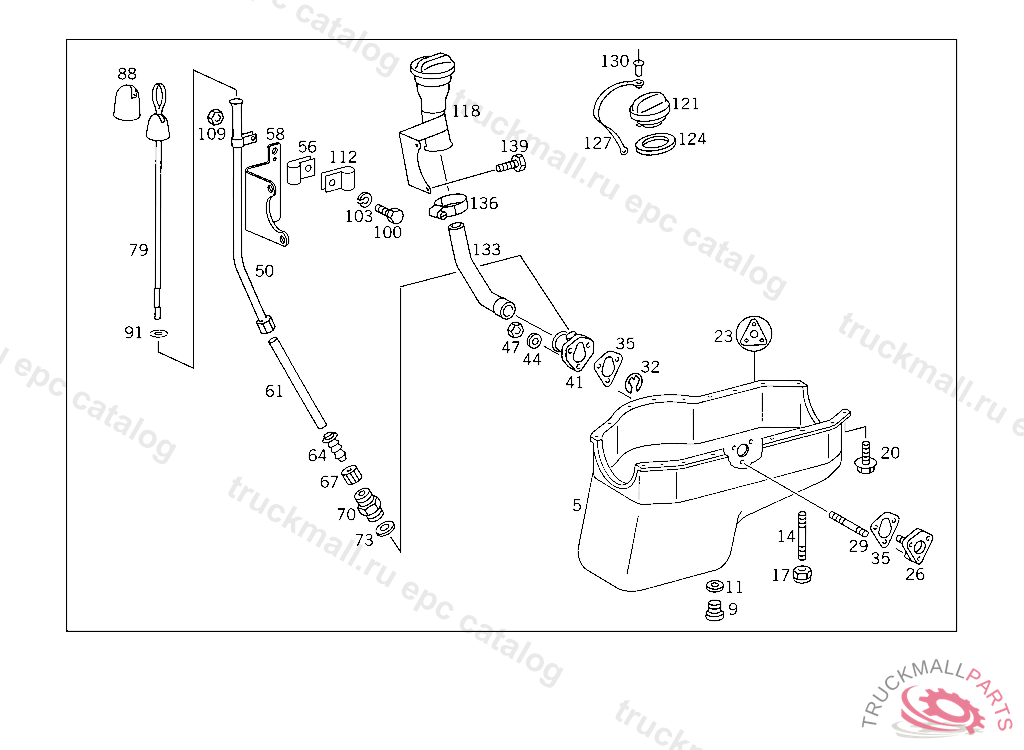

060 OIL PAN & OIL LEVEL DISPLAY IL. 1
Mercedes N000000000670 - ХОМУТ
OM 366 LA 377.968
01 ENGINE HOUSING - 060 OIL PAN & OIL LEVEL DISPLAY IL. 1
Поз.
Артикул
Описание
9
A4039970230
SCREW PLUG
9
A3450140072
SCREW PLUG OIL DRAIN
11
N007603026109
SEAL RING OIL DRAIN 26X34 MM
14
N000835008180
STUD OIL PAN TO CYLINDER CRANKCASE
17
N914440008000
NUT HEAT PROTECTION PLATE ON EXHAUST PIPE
20
N914008006001
COMBINATION BOLT INSTRUMENT PANEL TO FRONT PANEL PILLAR
23
A3660100680
GASKET KIT OIL PAN
23
A3660100580
GASKET KIT OIL PAN
79
A3760107472
OIL DIPSTICK ,472289
79
A3760107272
OIL DIPSTICK , Replaced By: A3760100472
88
A4030180106
CAP
91
A0029974048
SEAL RING
100
N000933006220
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
109
N000934006000
NUT , Replaced By: N304032006004
112
A4759957001
CLAMP LINES TO BRACKET
112
N916016011202
CLAMP AT BRACKET
118
A3760108864
OIL FILLER NECK
121
A3440180368
COVER OIL FILLER NECK,D 200054
124
A3440187080
GASKET COVER TO FITTING
133
A3760187982
HOSE ,396843
136
N000000000670
CLAMP
139
N304017008005
SCREW BRACKET TO CONSOLE M 8X25
999
A3760100472
OIL DIPSTICK
