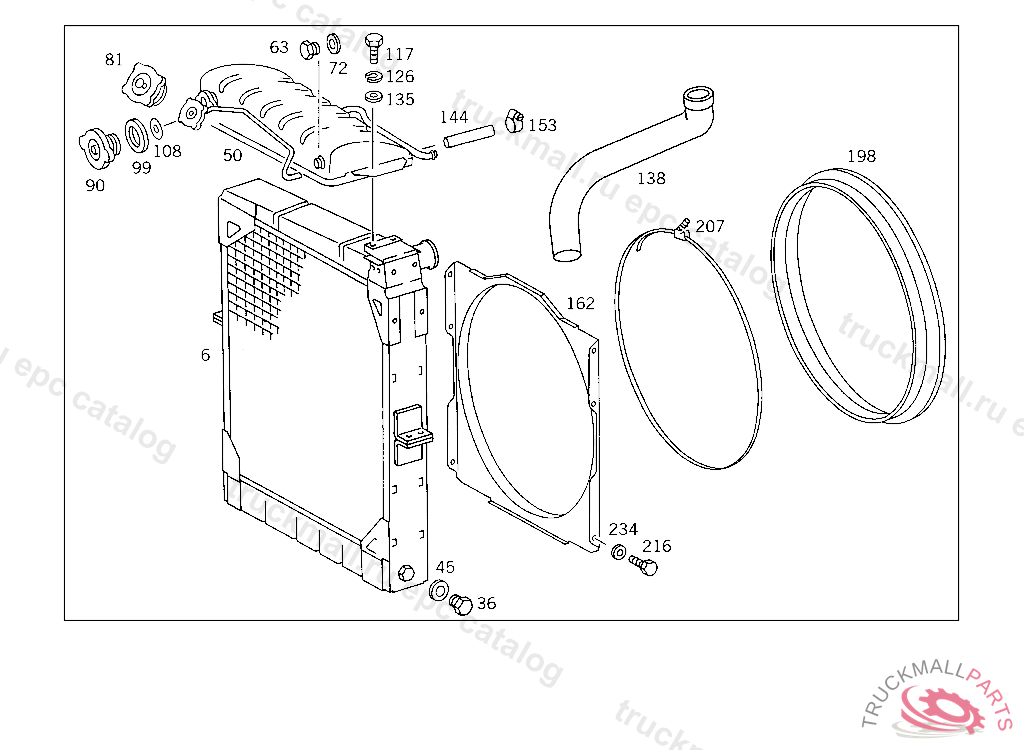

Поз.
Артикул
Описание
6
RADIATOR WATER,4 889672
6
RADIATOR WATER BEHR
6
RADIATOR"BEHR", NOT USED
6
RADIATOR ,4 889671, Replaced By: A0005017701, +001A6165010982
6
RADIATOR , Replaced By: A0015010801
36
SCREW PLUG , Replaced By: N007604014101
36
SCREW PLUG WATER DRAIN
45
SEAL RING FUEL LINE TO FEED PUMP
50
TANK ON RADIATOR
63
SCREW PLUG , Replaced By: N007604014101
63
SCREW PLUG WATER DRAIN
72
SEAL RING FUEL LINE TO FEED PUMP
81
RADIATOR CAP FILLER NECK
81
RADIATOR CAP FILLER NECK
90
RADIATOR CAP CENTRAL
90
RADIATOR CAP CENTRAL
99
GASKET O.D., 52 MM
108
GASKET O.D., 37 MM
117
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
117
SCREW , Replaced By: N304017008016
126
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
135
WASHER EXHAUST MUFFLER TO STRAP
135
WASHER , Replaced By: N000125008443
138
HOSE FROM RADIATOR OUTLET TO WATER PUMP,4 889672
144
HOSE OVERFLOW, EXPANSION TANK
153
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
153
CLAMP , Replaced By: N916017011000
153
CLAMP , Replaced By: N916017011001
162
AIR BAFFLE FAN SHROUD
198
BOOT FAN SHROUD TO FAN RING
198
BOOT FAN SHROUD TO FAN RING
207
CLAMP FAN SHROUD TO FAN RING
216
SCREW COVER PLATE TO COVER PLATE M 6 X 12
216
SCREW PUMP TO BRACKET
216
SCREW , Replaced By: N304017006018
216
SCREW , Replaced By: N304017006016
234
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
999
RADIATOR
999
CLAMP , Replaced By: N916017011000
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
NUT TURNBUCKLE
999
RADIATOR , Replaced By: A3815010801
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
RADIATOR ,4 428845
999
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
999
BRACKET RADIATOR MOUNTING,4 428844
999
SUPPORT RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK GUIDE TUBE
999
CONNECTOR AT WATER PUMP
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
FLANGE ENGINE BREATHING
999
LINE HEATING AND BREATHING
999
HOSE FROM RADIATOR TO THERMOSTAT
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
