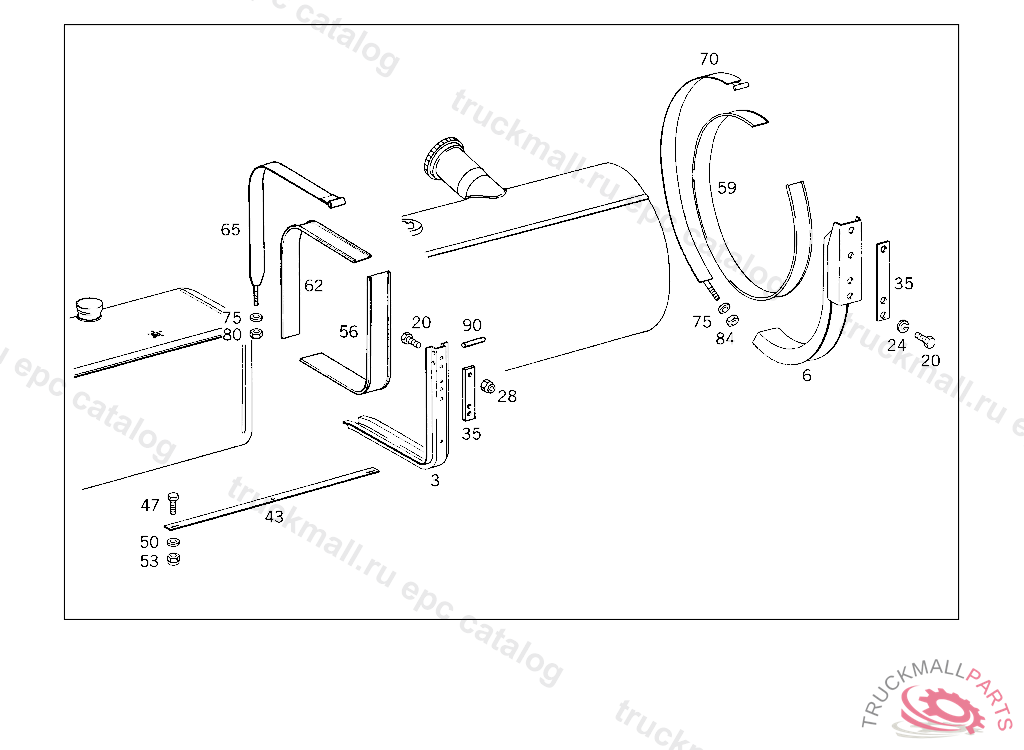

Поз.
Артикул
Описание
3
CONSOLE REAR EXHAUST PIPE TO CONSOLE
6
SUPPORT REAR
6
SUPPORT FRONT
20
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
24
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
28
NUT BRACKET TO SIDE MEMBER
28
NUT , Replaced By: N910113014001
35
SHIM SUPPORT TO SIDE MEMBER
43
REINFORCEMENT FUEL TANK CONSOLE
47
SCREW CONSOLE TO SIDE MEMBER
50
WASHER
53
NUT SUPPORT TO SIDE MEMBER
56
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
59
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
62
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
65
STRAP FUEL TANK TO SUPPORT
70
STRAP FUEL TANK TO CONSOLE,5 149420
70
STRAP FUEL TANK,4 492432
70
STRAP ,5 149419, Replaced By: A6204700340, +001N000934012022
75
WASHER
80
NUT STRAP TO SUPPORT,5 149419
80
NUT STRAP TO SUPPORT
84
NUT STRAP TO SUPPORT
90
PIN STRAP TO SUPPORT,4 492432
999
SUPPORT , Replaced By: A3854700042
999
STOP ,969088-4 492432
999
SHIM , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 624614, Replaced By: A3834750384
999
COTTER PIN WHEEL CYLINDER TO SLACK ADJUSTER,4 637963
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
WASHER RAIL TO SUBSTRUCTURE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
