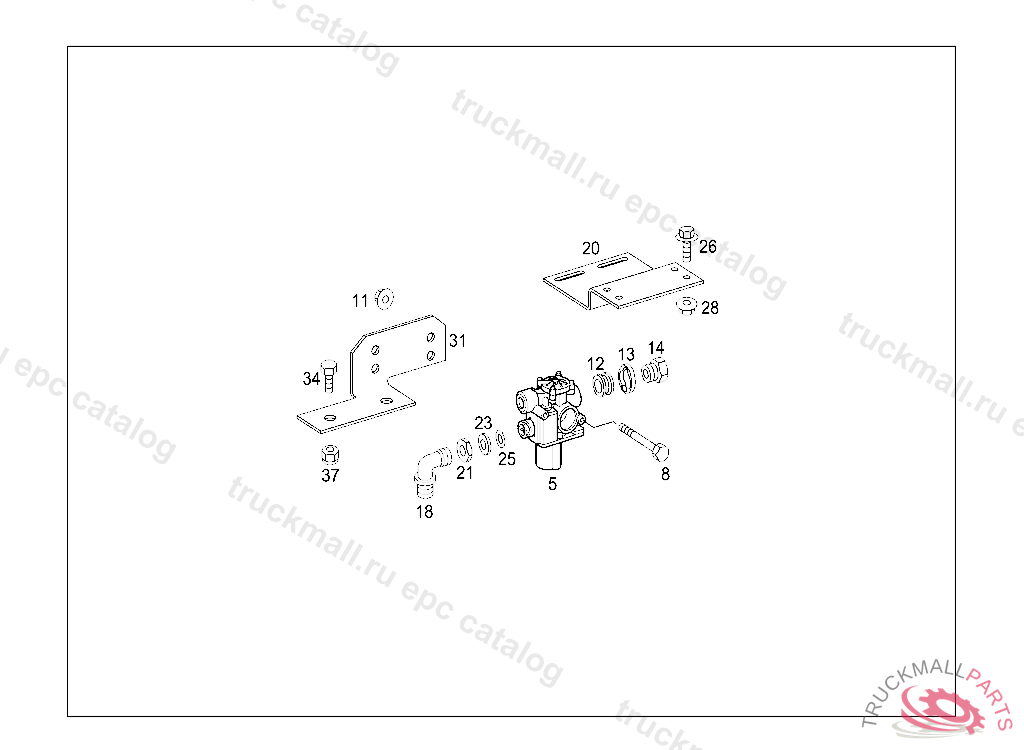

Поз.
Артикул
Описание
5
VALVE FRONT AND REAR AXLE BRAKE PRESSURE KNORR 45.01
5
VALVE PRESSURE CONTROL VALVE ABS
8
SCREW , Replaced By: N910143008010
11
NUT HORN TO BRACKET M8
14
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
18
ELBOW FITTING
20
BRACKET MOUNTING SOLENOID VALVE ABS
21
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
23
THRUST RING CHECK VALVE TO AIR RESERVOIR
25
O-RING CHECK VALVE TO AIR RESERVOIR
26
SCREW , Replaced By: N910143008010
26
HEXAGON HEAD BOLT SOLENOID VALVE TO BRACKET M8X140
28
NUT HORN TO BRACKET M8
31
34
SCREW , Replaced By: N910143008002
37
NUT HORN TO BRACKET M8
