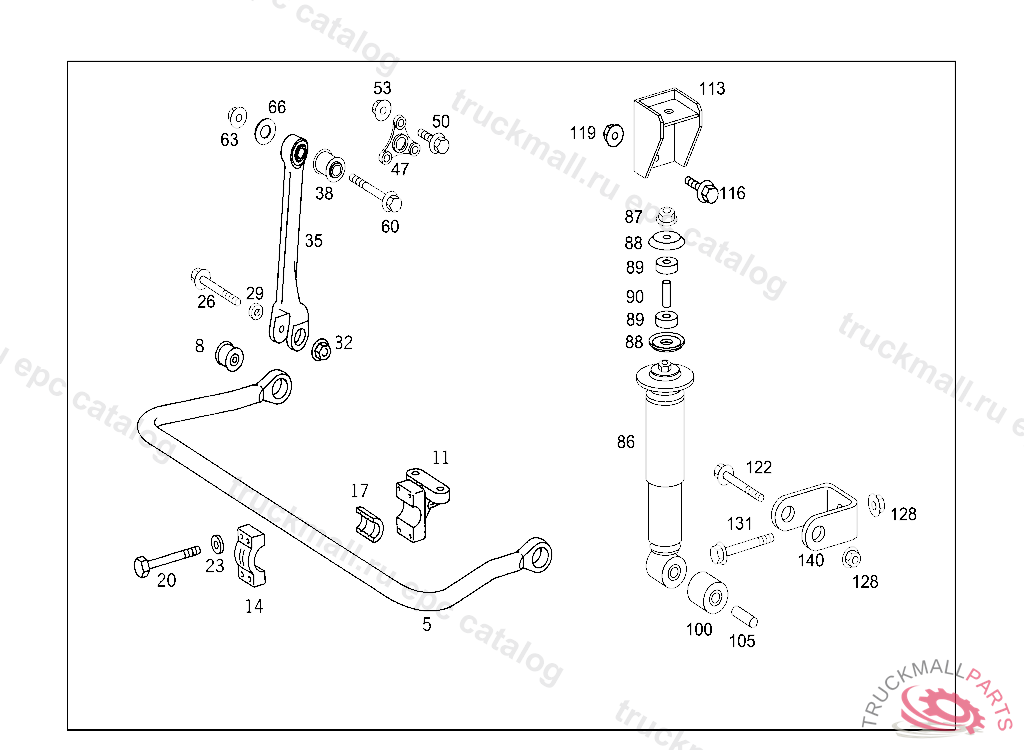

Поз.
Артикул
Описание
5
8
BUSHING FRONT STABILIZER
11
BEARING BRACKET HOLE SPACING: 88 MM
14
BEARING SHELL TORSION BAR BEARING
17
GROMMET STABILIZER
20
SCREW (ARTICULATED ROD)
23
WASHER STRUT TO CONSOLE
26
29
32
NUT SUPPORT TO FRAME
35
38
38
BUFFER FRONT AXLE STABILIZER
47
50
53
NUT , Replaced By: N910113010003
60
SCREW STEERING ARM TO STEERING KNUCKLE
63
NUT FRONT SPRING TO SPRING BRACKET
66
WASHER SHACKLE TO CONSOLE
86
86
86
86
86
87
NUT TOP AND BOTTOM TO A 634 326 00 00
88
THRUST WASHER TOP AND BOTTOM TO 634 326 00 00
89
RUBBER BUFFER TOP AND BOTTOM TO A 634 326 00 00
90
BUSHING TOP AND BOTTOM TO A 634 326 00 00
100
RUBBER MOUNTING
100
RUBBER BUFFER TOP AND BOTTOM
105
BUSHING TOP AND BOTTOM
105
BUSHING
113
113
116
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
119
NUT SUPPORT TO FRAME
122
HEXAGON HEAD BOLT SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT M20X1.5X110
128
NUT TRAILER COUPLING TO REAR CROSS MEMBER
131
HEXAGON HEAD BOLT SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT M20X1.5X110
140
BRACKET SHOCK ABSORBER MOUNTING
