Поз.
Артикул
Описание

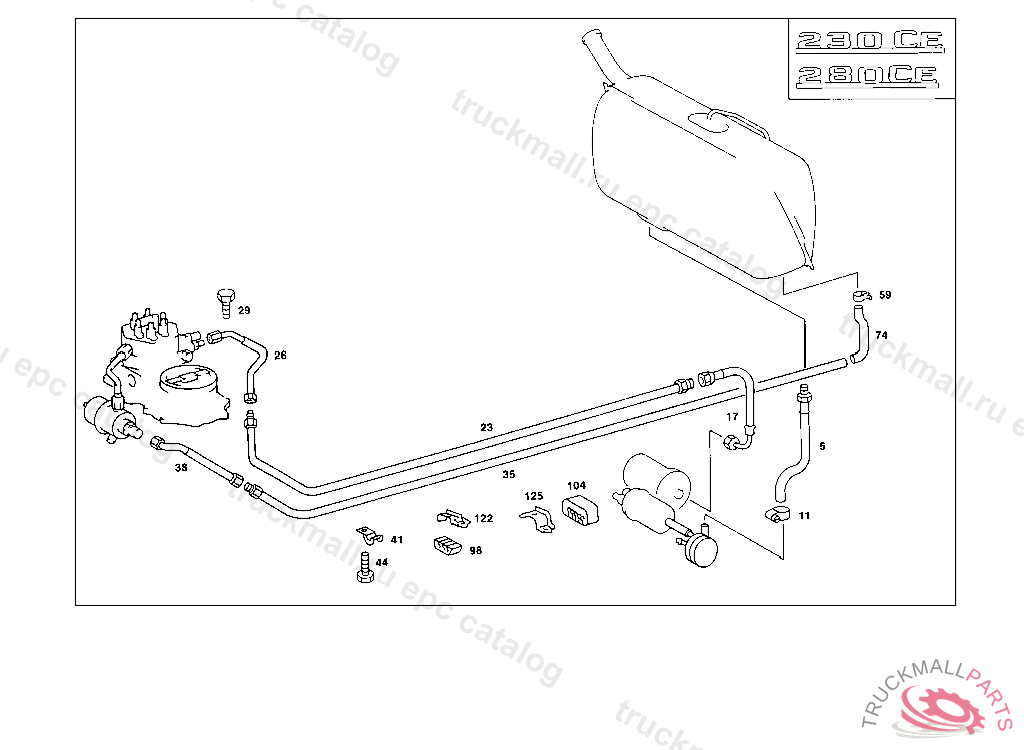

5
FUEL HOSE FROM FUEL TANK TO DAMPER CAGE
11
CLAMP FROM VENT PIPE TO FILLER NECK
17
FUEL HOSE
17
FUEL HOSE FROM FUEL ACCUMULATOR TO FEED LINE, 107.024 025530 107.044 053366 116.032,033 089514
23
LINE FEED LINE
23
LINE , Replaced By: A1074700165
26
FUEL HOSE FROM FEED LINE TO ENGINE
35
LINE RETURN
35
LINE , Replaced By: A1074709764
38
FUEL HOSE FROM ENGINE TO RETURN LINE
59
CLAMP
74
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
74
HOSE8X12 MM, ORDER BY THE METER
74
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
98
DAMPING STRIP
104
DAMPING STRIP
122
CLAMP , FROM CHASSIS: 010 115422 110 307703 017,117 000001
125
CLAMP
