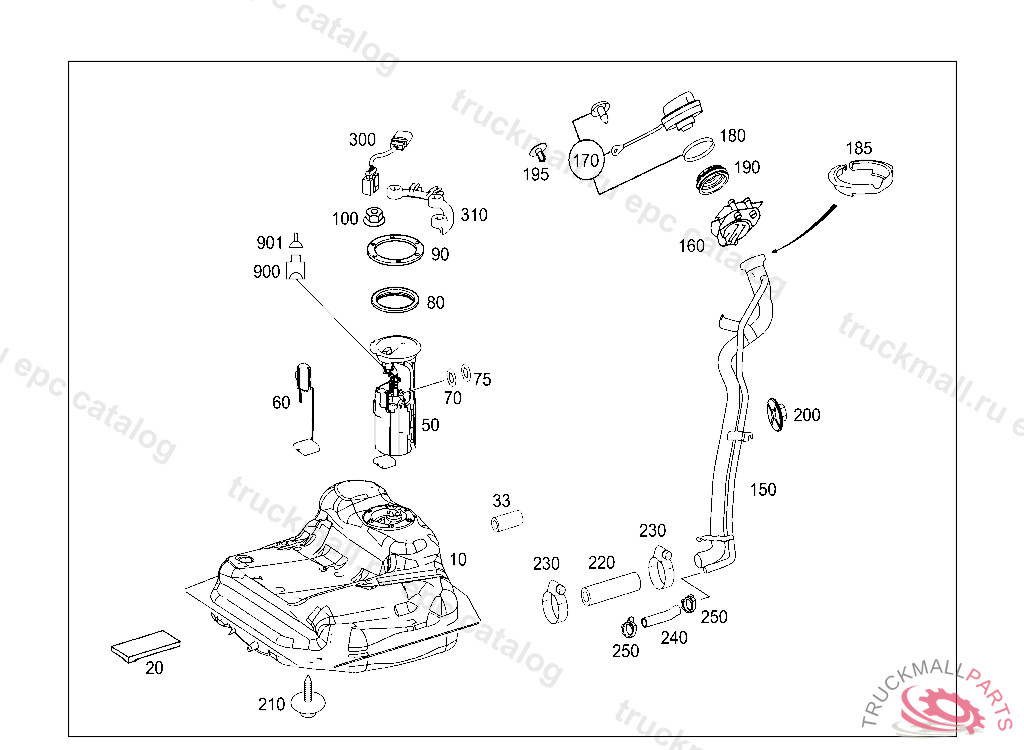

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK
20
PAD FUEL TANK BOTTOM SIDE
50
DELIVERY UNIT , J 70049320081204
50
DELIVERY UNIT , J 70049420081204
60
SENDER UNIT
70
O-RING FEED LINE TO FUEL PUMP
75
O-RING FEED LINE
80
SEAL RING DELIVERY UNIT TO RESERVOIR
90
RING DELIVERY UNIT
100
MULTIPLE NUT DELIVERY UNIT TO RESERVOIR
150
FILLER NECK
160
FILLER NECK
160
FUNNEL , Replaced By: A1694700029
170
FUEL FILLER CAP , J 75730520090630 TO BE ADAPTED DURING ASSEMBLY
170
FILLER CAP , J 75730620090630
180
SEAL RING FILLER CAP
190
GROMMET FILLER NECK TO FRAME
195
EXPANSION RIVET. RIVET
200
HEXAGON NUT W COLLAR BRACKET MOUNTING
210
SCREW DELIV.SPEC. FUEL TANK TO SUBSTRUCTURE
220
FUEL HOSE FROM FILLER NECK TO FUEL TANK
230
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
240
HOSE FUEL TANK VENTILATION
240
FUEL HOSE FUEL TANK VENTILATION, Replaced By: A1694762226
250
HOSE CLAMP. LOOM TIE (PRESSURE RELIEF VALVE)
250
LOOM TIE ACTIVATED CHARCOAL FILTER TO SHUT-OFF VALVE, FROM MODEL YEAR '98
300
EL. CABLE FUEL PUMP CONNECTION
310
BRACKET CABLE HARNESS PLUG-CONNECTION
900
PIN BUSHING HOUSING. PLUG 4-POLE
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
901
FEMALE CONTACT RELAY SUPPORT 2.5-4.0 MM2 SLK2.8,K100
901
GASKET
901
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
