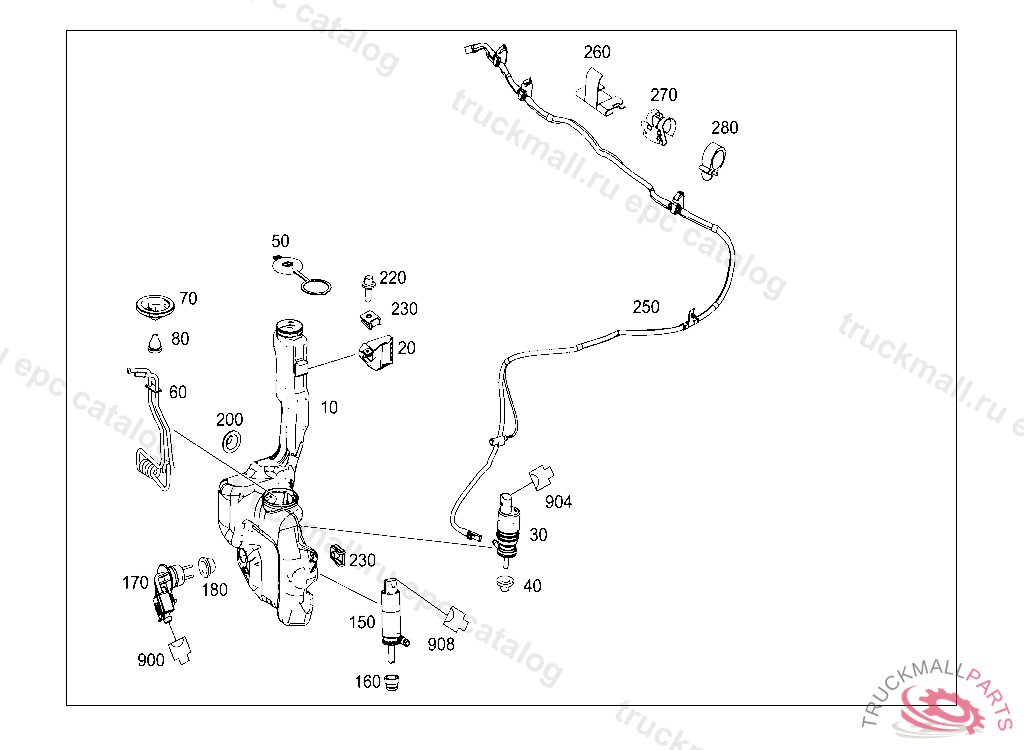

Поз.
Артикул
Описание
10
FLUID CONTAINER
10
WINDSCREEN WASH BOTTLE
10
FLUID CONTAINER
10
WINDSCREEN WASH BOTTLE
10
DASHPOT
10
FLUID CONTAINER
10
DASHPOT , Replaced By: A2048691220
10
DASHPOT , Replaced By: A2048691420
10
DASHPOT , Replaced By: A2048691320
20
BRACKET FOR RESERVOIR TO BODYSHELL
30
PUMP PANE WASHER SYSTEM
40
GROMMET BETWEEN RESERVOIR AND PUMP
50
COVER
60
HEAT EXCHANGER
70
COVER LIQUID TANK
80
GROMMET
150
CENTRIFUGAL PUMP HEADLAMP CLEANING SYSTEM
160
GROMMET FROM PUMP INTO RESERVOIR
170
SWITCH FOR WASHING WATER STATUS
180
SEAL FILLER PIPE
200
SEAL BETWEEN RESERVOIR AND BODY
220
SCREW LEVER TO ENGINE CONTROL SHAFT
230
LOCK NUT. SPRING NUT MOUNTING PARTS
250
HOSE LINE WITH NOZZLES, F 50004620100331
250
HOSE LINE WITH NOZZLES
250
HOSE LINE WITH NOZZLES
250
HOSE LINE WITH NOZZLES
260
CLIP FOR HOSE TO COVER
270
MOUNTING CLAMP HOUSING, A 42814020020812 E 02000020070101
280
CLAMP20 MM
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
904
PIN BUSHING HOUSING INDICATOR SWITCH,POWER TAKE-OFF S23.2/.3, 2 PIN
908
PIN BUSHING HOUSING. PLUG SOCKET SOLENOID VALVE,POWER TAKE-OFF Y46.2/.3 2PIN
