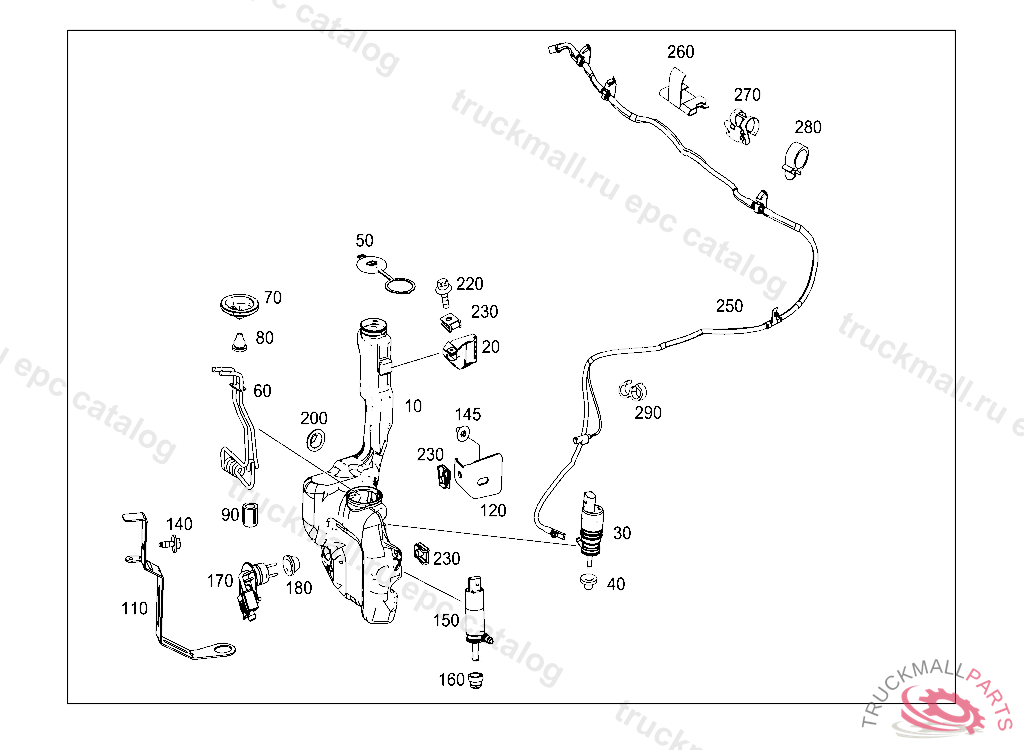

E 350 BLUE EFFICIENCY - 207.460 - 86 WASHER SYSTEM
Поз.
Артикул
Описание
10
DASHPOT
10
FLUID CONTAINER
20
BRACKET FOR RESERVOIR TO BODYSHELL
30
PUMP PANE WASHER SYSTEM
40
GROMMET BETWEEN RESERVOIR AND PUMP
50
COVER
60
HEAT EXCHANGER
70
COVER LIQUID TANK
80
GROMMET
90
GROMMET
170
SWITCH FOR WASHING WATER STATUS
180
SEAL FILLER PIPE
200
SEAL BETWEEN RESERVOIR AND BODY
220
BOLT LOWER SUPPORT M6X19
230
LOCK NUT. SPRING NUT MOUNTING PARTS
250
HOSE WITH NOZZLES
250
HOSE WITH NOZZLES
250
HOSE WITH NOZZLES
250
HOSE WITH NOZZLES
260
CLIP FOR HOSE TO COVER
270
MOUNTING CLAMP HOUSING, A 42814020020812 E 02000020070101
280
CLAMP , Replaced By: A0009955844
