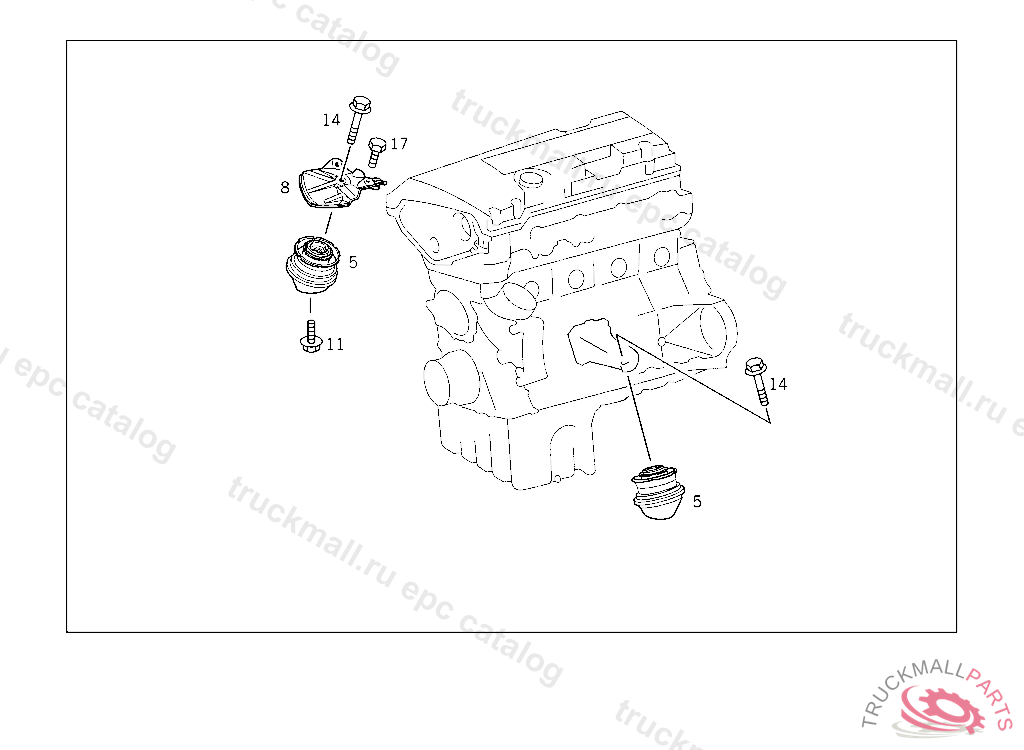

E 320 4MATIC JAPAN - 210.282 TO MODELLJAHR CODE 809 - 24 ENGINE SUSPENSION

  • Поз.
    Артикул
    Описание
  • 5
    ENGINE MOUNTING FRONT LEFT
  • 5
    ENGINE MOUNT FRONT RIGHT
  • 5
    ENGINE MOUNTING , Replaced By: A2032400517
  • 8
    SCREENING PLATE ENGINE FRONT LEFT MOUNTING
  • 11
    BOLT FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT M8X21
  • 14
    SCREW
  • 14
    COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLY ENGINE FRONT RIGHT MOUNTING M10X60, Replaced By: N304017010051, +001N000000003260
  • 17
    SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
