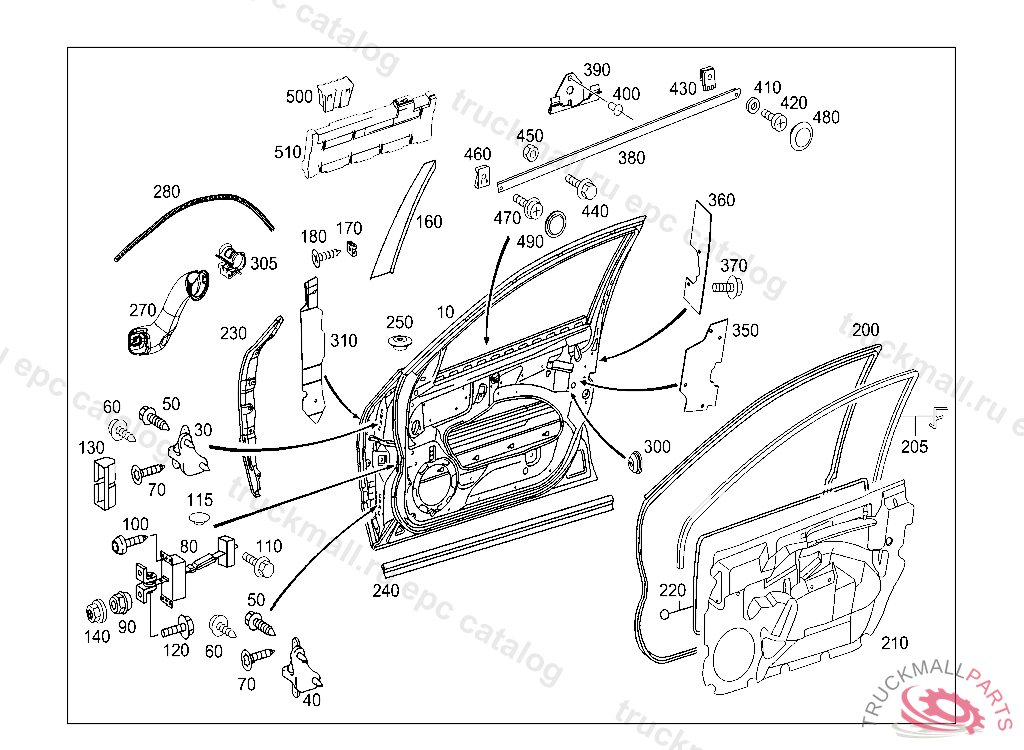

Поз.
Артикул
Описание
10
DOOR SHELL LEFT
10
DOOR SHELL LEFT
10
DOOR SHELL RIGHT
10
DOOR SHELL RIGHT
10
DOOR SHELL RIGHT
10
DOOR SHELL LEFT
30
HINGE RIGHT TOP, Replaced By: A2117202037
30
HINGE LEFT TOP, Replaced By: A2117201937
30
HINGE RIGHT TOP, Replaced By: A2117201637
30
HINGE LEFT TOP, Replaced By: A2117201537
30
HINGE RIGHT TOP
30
HINGE LEFT TOP
30
HINGE RIGHT TOP
30
HINGE LEFT TOP
40
HINGE LEFT BOTTOM
40
HINGE RIGHT BOTTOM
40
HINGE RIGHT BOTTOM
40
HINGE LEFT BOTTOM
40
HINGE RIGHT BOTTOM, Replaced By: A2117202237
40
HINGE LEFT BOTTOM, Replaced By: A2117202137
40
HINGE RIGHT BOTTOM, Replaced By: A2117201837
40
HINGE LEFT BOTTOM, Replaced By: A2117201737
50
BOLT HINGE ON A-PILLAR 8X27
50
BOLT HINGE TO BODY M8X25, A 00901919990831
60
BOLT RIGHT DOOR HINGE
60
BOLT TO HINGE, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0139902101
70
SCREW LOCKING EYE REAR FENDER
80
DOOR CHECK LEFT AND RIGHT
80
DOOR CHECK LEFT AND RIGHT
90
NUT , Replaced By: N913023006001
100
SCREW BRACKET TO COVERING
110
SCREW DOOR CHECK TO DOOR M6X12
115
STOP PLUG DOOR CHECK TO DOOR
120
HEXALOBULAR BOLT OIL LINE TO CASE M6X20
130
COVER DOOR BRAKE ON B-PILLAR
140
CAP TO RIGHT DOOR HINGE SCREW
160
ORNAMENTAL COVER WINDOW FRAME,LEFT, A 37029820030728 A 57335120040331 X 11082820031008
160
ORNAMENTAL COVER WINDOW FRAME,RIGHT, A 37029820030728 A 57335120040331 X 11082820031008
170
LOCK AT BRACKET,F 029921
180
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
200
WEATHERSTRIP RIGHT
200
WEATHERSTRIP LEFT
205
WEATHERSTRIP RIGHT, TO BE ADAPTED DURING ASSEMBLY
205
WEATHERSTRIP RIGHT
205
WEATHERSTRIP LEFT
205
WEATHERSTRIP LEFT
210
WEATHERSTRIP LEFT
210
WEATHERSTRIP RIGHT, TO BE ADAPTED DURING ASSEMBLY
220
SEALING CORD DOOR, ORDER BY THE METER
230
SEAL RIGHT
230
SEAL LEFT
240
WEATHERSTRIP LEFT AND RIGHT
250
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
270
GUIDE CABLE GUIDE DUCT,RIGHT
270
GUIDE CABLE GUIDE DUCT,RIGHT
270
GUIDE DOOR FIXED WINDOW
270
GUIDE CABLE GUIDE DUCT,LEFT
280
PIPE CABLE CONDUIT
300
SEAL DOOR LOCK CABLE PASSAGE
305
CLIP
310
PLATE DOOR GAP LEFT
310
PLATE DOOR GAP RIGHT
350
PLATE LEFT INSIDE
350
PLATE RIGHT INSIDE
360
PLATE LEFT OUTSIDE
360
PLATE RIGHT OUTSIDE
360
PLATE LEFT OUTSIDE
370
SCREW
380
GARNISH MOULDING LEFT, DOOR EDGE OUTSIDE, B 44999920090529 L 03499920090531 X 224019
380
GARNISH MOULDING LEFT, DOOR EDGE OUTSIDE
380
GARNISH MOULDING RIGHT,DOOR EDGE OUTSIDE, B 44999920090529 L 03499920090531 X 224019
380
GARNISH MOULDING RIGHT,DOOR EDGE OUTSIDE
380
ORNAMENTAL TRIM LEFT, DOOR EDGE OUTSIDE, B 45000020090529 L 03500020090531
380
GARNISH MOULDING RIGHT,DOOR EDGE OUTSIDE, B 45000020090529
390
CLIP GARNISH MOULDING TO FRONT DOOR EDGE
390
CLIP TRIM STRIP FASTENING, B 11811620070116 L 00705720061231 X 21775820060926
400
RIVET TRIM STRIP FASTENING
400
BLIND RIVET GRAB HANDLE BRACKET TO INTERIOR PLATE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
410
WASHER TRIM STRIP FASTENING, B 18599920070531
410
WASHER BRACKET TO CAB REAR PANEL
420
SCREW
430
NUT RETAINER PROTECTIVE PLATE TO EXHAUST MUFFLER
440
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
450
NUT BATTERY NEG. POLE
460
CLIP NUT AT CROSS MEMBER ST 4.8
470
SCREW , Replaced By: A1409842829
480
PLUG LOCK OPERATING LEVER ADJUSTMENT HOLE
490
EXPANSION PLUG AT BRACKET
500
SUPPORT INSIDE LEFT AND RIGHT
510
SUPPORT OUTSIDE RIGHT
510
SUPPORT OUTSIDE LEFT
