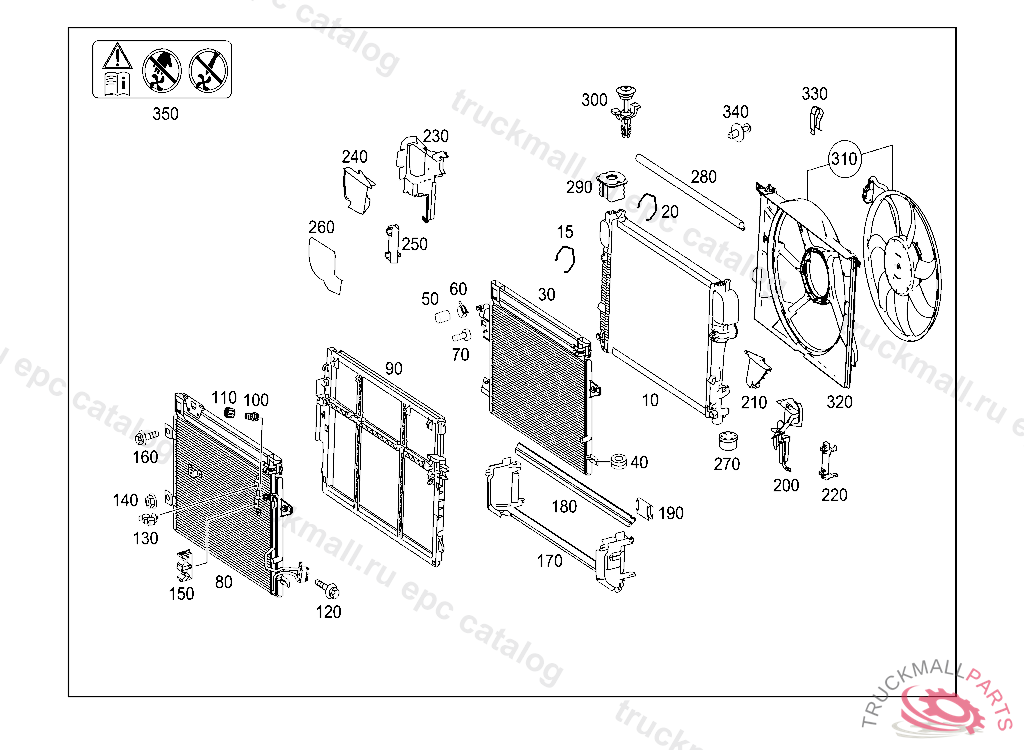

Поз.
Артикул
Описание
10
WATER COOLER , A 02654120100930801
10
WATER COOLER , A 02405420090703, Replaced By: A2215002603
15
DETENT SPRING FILLING HOSE TO RADIATOR SCB1727MM
20
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
80
CONDENSER AIR CONDITIONER, A 01804920080305
80
CONDENSER AIR CONDITIONER, A 01805020080305
90
MOUNTING FRAME CONDENSER, A 01804920080305
90
MOUNTING FRAME CONDENSER, A 01805020080305
110
CAP , NOT USED
120
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
180
BOOT TO RADIATOR BOTTOM, A 02654120100930801
180
BOOT BOTTOM, A 02654120100930801
190
SPRING CLAMP SEAL ATTACHMENT
200
AIR BAFFLE TOP LEFT, A 02654120100930801
200
AIR DUCT TOP LEFT, A 02430720090731800
210
AIR DUCT TOP LEFT, A 02430720090731800
210
AIR BAFFLE TOP LEFT, A 02654120100930801
230
AIR BAFFLE TOP RIGHT, A 02654120100930801
230
AIR DUCT TOP RIGHT, A 02654120100930801, Replaced By: A2165050830
230
AIR DUCT TOP RIGHT, A 02430720090731800
240
AIR BAFFLE TOP RIGHT, A 02654120100930801
240
AIR DUCT TOP RIGHT, A 02430720090731800
270
RUBBER MOUNT RADIATOR BOTTOM, A 02588420100630
280
SEALING LIP TOP, A 02430720090731800
280
SEALING STRIP TOP, A 02654120100930801
290
BEARING TOP LEFT AND RIGHT, J 06236120041209
300
CLIP RADIATOR TOP
310
BLOWER
310
BLOWER850W, A 02352620090331
330
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
340
RIVET
350
GUIDE SIGN FAN
350
INFORMATION LABEL RADIATOR FAN, Replaced By: A0005840526
