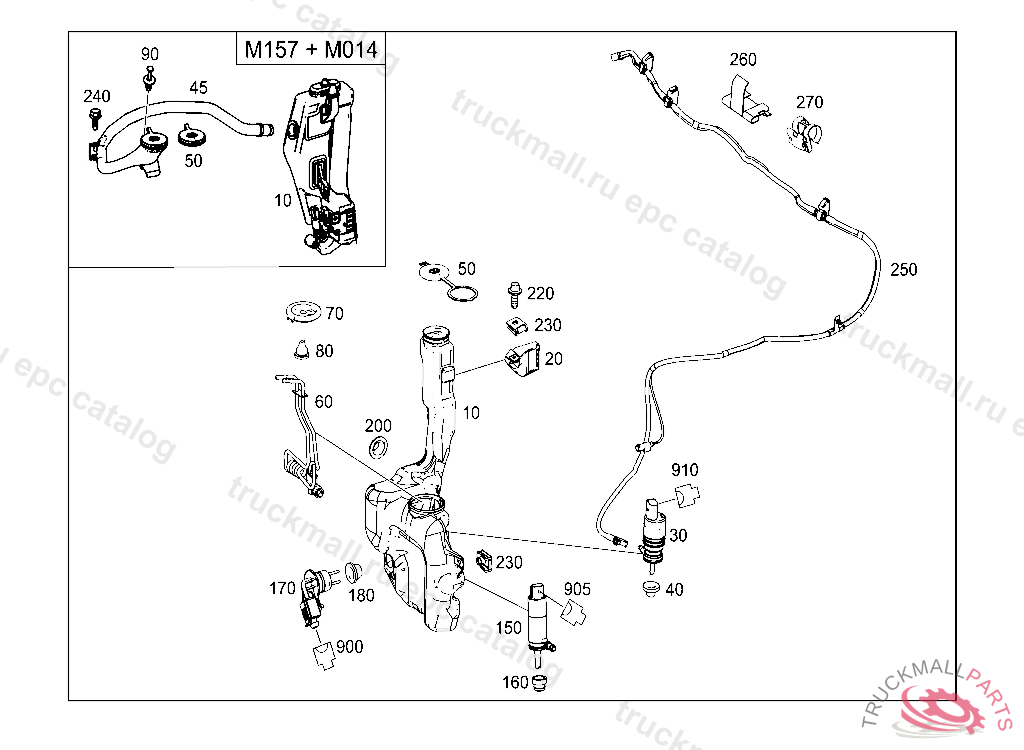

Поз.
Артикул
Описание
10
FLUID CONTAINER
10
FLUID CONTAINER
10
FLUID CONTAINER
10
DASHPOT
20
BRACKET FOR RESERVOIR TO BODYSHELL
30
PUMP PANE WASHER SYSTEM
40
GROMMET BETWEEN RESERVOIR AND PUMP
50
COVER
60
HEAT EXCHANGER
70
COVER LIQUID TANK
80
GROMMET
150
CENTRIFUGAL PUMP HEADLAMP CLEANING SYSTEM
170
SWITCH FOR WASHING WATER STATUS
180
SEAL FILLER PIPE
200
SEAL BETWEEN RESERVOIR AND BODY
220
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
230
LOCK NUT. SPRING NUT MOUNTING PARTS
250
HOSE LINE UNHEATED
250
HOSE LINE HEATED, WITH NOZZLES
250
HOSE LINE UNHEATED
250
HOSE LINE HEATED, WITH NOZZLES
260
CLIP FOR HOSE TO COVER
270
MOUNTING CLAMP HOUSING, A 42814020020812 E 02000020070101
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
905
PIN BUSHING HOUSING. PLUG SOCKET SOLENOID VALVE,POWER TAKE-OFF Y46.2/.3 2PIN
910
PIN BUSHING HOUSING INDICATOR SWITCH,POWER TAKE-OFF S23.2/.3, 2 PIN
