Главная
Mercedes
CAR
CLS 63 AMG
219.377
68 PANELLING
235 WOOD COVERING OF INSTRUMENT PANEL,. PIGEONHOLE AND ASHTRAY

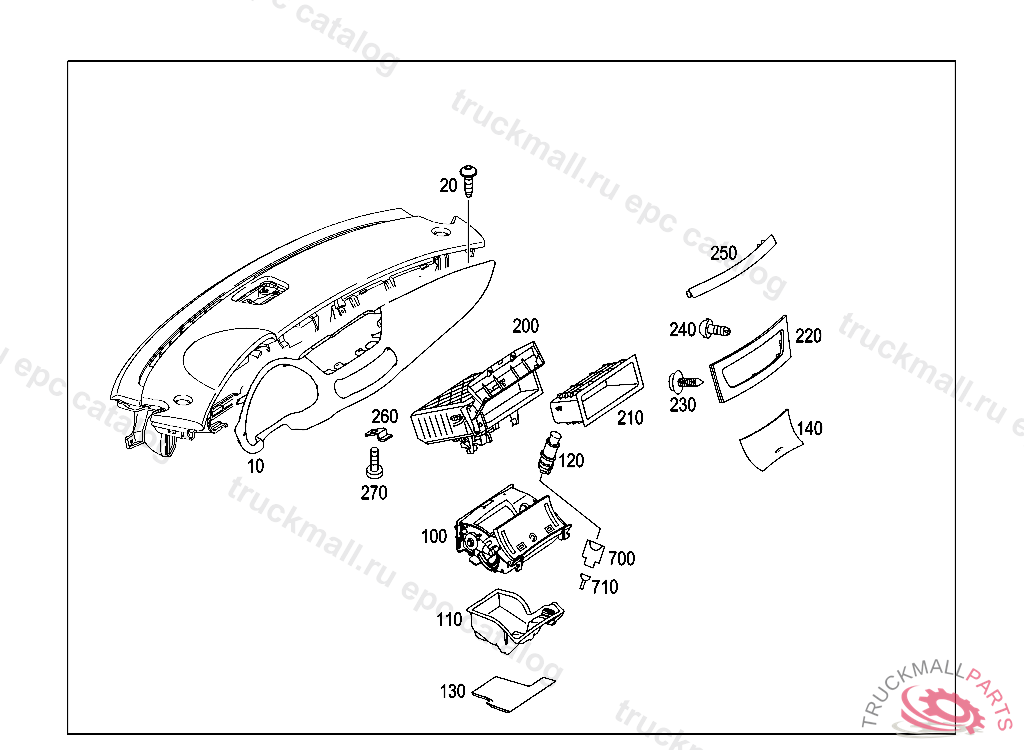

CLS 63 AMG - 219.377 - 68 PANELLING

Поз.
Артикул
Описание
10
A2196801071
GARNISH MOULDING INSTRUMENT PANEL
10
A2196800171
GARNISH MOULDING INSTRUMENTPANEL,ABOVE
10
A2196802271
GARNISH MOULDING INSTRUMENT PANEL
10
A2196801971
GARNISH MOULDING INSTRUMENT PANEL
10
A2196801671
GARNISH MOULDING INSTRUMENTPANEL,ABOVE
10
A2196801571
GARNISH MOULDING INSTRUMENTPANEL,ABOVE
10
A2196801471
GARNISH MOULDING INSTRUMENT PANEL
10
A2196801271
GARNISH MOULDING INSTRUMENT PANEL
10
A2196800071
GARNISH MOULDING INSTRUMENTPANEL,ABOVE
10
A2196800671
GARNISH MOULDING INSTRUMENTPANEL,ABOVE
10
A2196802371
GARNISH MOULDING INSTRUMENT PANEL
10
A2196802571
GARNISH MOULDING INSTRUMENT PANEL
10
A2196800571
GARNISH MOULDING INSTRUMENTPANEL,ABOVE
10
A2196801371
GARNISH MOULDING INSTRUMENT PANEL
10
A2196802471
GARNISH MOULDING INSTRUMENT PANEL
10
A2196800971
GARNISH MOULDING INSTRUMENT PANEL
10
A2196801171
GARNISH MOULDING INSTRUMENT PANEL
10
A2196802771
GARNISH MOULDING INSTRUMENT PANEL
20
A0029842929
BOLT FASTENING, GEAR HEIGHT ADJUSTMENT M5 X 18 MM
100
A2116800650
HOUSING ASHTRAY
110
A2118100428
INSERT ASHTRAY
120
A0008201853
CIGAR LIGHTER , J 48100520010301801
120
A0008203151
PLUG SOCKET IN THE HOUSING, A 55589720030630804 E 02000020070101804
130
A2116830051
LINING ASHTRAY
140
A2198101111
PLATE ASHTRAY
140
A2198100511
COVER PLATE ASHTRAY
140
A2196800907
PLATE ASHTRAY
140
A2198100811
PLATE ASHTRAY
140
A2198100711
COVER PLATE ASHTRAY
140
A2198100011
PLATE ASHTRAY
140
A2198100211
PLATE ASHTRAY
140
A2196802671
GARNISH MOULDING ASHTRAY
140
A2198100611
COVER PLATE ASHTRAY
200
A2196800552
PIGEONHOLE CENTRAL CONSOLE, A 14034120080328809
200
A2196800614
BRACKET CENTRAL CONSOLE, A 12688920071011808
210
A2116830091
TRAY IN HOUSING CENTER CONSOLE
220
A2196800939
COVER SWITCH BLOCK TO CENTER CONSOLE
220
A2196802039
COVER SWITCH BLOCK TO CENTER CONSOLE
220
A2196801039
COVER SWITCH BLOCK TO CENTER CONSOLE
220
A2196802139
COVER PIGEONHOLE
220
A2196801839
COVER PIGEONHOLE
220
A2196802239
COVER PIGEONHOLE
220
A2196801739
COVER PIGEONHOLE
220
A2196801939
COVER PIGEONHOLE
220
A2196801007
COVER PIGEONHOLE
230
N000000003242
PAN HEAD SCREW. SCREW GROUND CONNECTION
240
A0029845929
BOLT TO SWITCH PANEL M2,5X8
250
A2196830028
SLIDING PLATE CENTRAL CONSOLE
260
A2116890214
BRACKET PIGEONHOLE
270
N000000001955
HEXALOBULAR BOLT LIGHT SWITCH M4X6
700
A2205450026
PIN BUSHING HOUSING STEERING COLUMN JACKET TUBE ADJUSTMENT 14-PIN MLK1.2, A 00515420000630800
710
A0005403505
REP.SET CONTACT. CABLE HARNESS FUSE AND RELAY BOX,DRIVER 4,0 MM2, CONNECTORS MUST ALSO BE ORDERED IN ACCORDANCE WITH THE TOTAL LINE CROSS-SECTION TO BE CONNECTED.REFER TO WIS FOR REPAIR INSTR. SOLDERED CONN.SLE.A 001 546 99 41GREEN 0,7 - 2,4 MM2 A 002 546 00 41RED 2,0 - 4,0 MM2 A 002 546 01 41BLUE3,5 - 8,0 MM2 A 002 546 11 41YELLOW7,5 - 12,0 MM2 BUTT JOINTA 002 546 13 410,5 MM2 A 002 546 14 410,8 MM2 A 002 546 15 411,3 MM2 A 002 546 16 412,0 MM2
