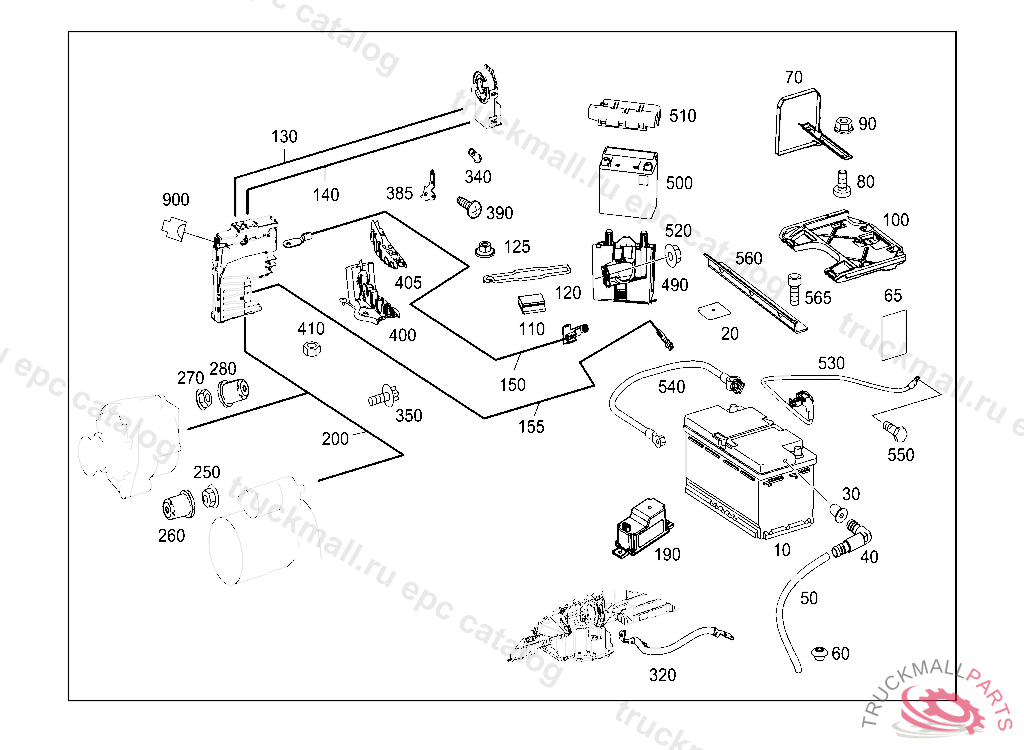

Поз.
Артикул
Описание
10
STARTER BATTERY IN ENGINE COMPARTMENT 12V/78AH
10
BATTERYVLIES,70 AH / 450 AHHOPPECKE
20
BOOT POS. POLE
20
COVERING F TERMINAL POS. POLE
30
STOP PLUG. PLUG ON BATTERY,LATERALLY
40
ELBOW FITTING. DISTRIBUTOR
50
HOSE , ORDER BY THE METER
60
PLUG TO PLUG THE PAINT RUN-OFF HOLES IN REAR END FLOOR
60
GROMMET ENGINE COMPARTMENT FEED-THROUGH
60
STOP PLUG TOP CENTER 11 MM
65
ADHESIVE TAPE PIPING
70
RETAINING STRAP FOR BATTERY IN REAR END
80
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
90
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
100
BATTERY FRAME REAR LEFT
100
BATTERY FRAME REAR LEFT
110
PAD LOCK BRACKET
120
CLAMP BATTERY MOUNTING
125
NUT MOUNTING FRAME TO SUPPORT M6
130
ELECTRICAL WIRING HARNESS
130
ELECTRICAL WIRING HARNESS FROM TERMINAL BLOCK TO PREFUSE BOX X4/53 - F32/3
140
ELECTRICAL WIRING HARNESS FROM STARTING MOTOR TO BATTERY POS. POLE
140
ELECTRICAL WIRING HARNESS FROM STARTING MOTOR TO BATTERY POS. POLE
150
ELECTRICAL WIRING HARNESS BATTERY POSITIVE TERMINAL TO PREFUSE BOX
150
ELECTRICAL WIRING HARNESS BATTERY POSITIVE TERMINAL TO PREFUSE BOX
155
ELECTRICAL WIRING HARNESS FROM BATTERY TO FUSE BOX
155
ELECTRICAL WIRING HARNESS FROM BATTERY TO FUSE BOX
190
VOLTAGE CONVERTER VOLTAGE TRANSFORMER
200
ELECTRICAL WIRING HARNESS STARTING MOTOR,ALTERNATOR
200
ELECTRICAL WIRING HARNESS STARTING MOTOR,ALTERNATOR
250
NUT , Replaced By: N913023006001
250
NUT CABLE TO ALTERNATOR,TERMINAL 30
260
PROTECTIVE CAP. BOOT NUT , M8
270
NUT CABLE TO ALTERNATOR,TERMINAL 30
280
PROTECTIVE CAP. BOOT NUT , M8
320
ELECTRICAL WIRING HARNESS ENGINE GROUND LINE
320
ELECTRICAL WIRING HARNESS GROUND LINE FRONT END/BODY
340
JUMP-START CHARGING POINT JUMP-STARTING POINT
350
HEXALOBULAR BOLT COVER PANEL FASTENING M8 X 16
350
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
350
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
385
BRACKET STARTER-ALTERNATOR WIRING HARNESS AT PARTITION WALL
385
BRACKET STARTER-ALTERNATOR WIRING HARNESS AT PARTITION WALL
385
BRACKET PARTITION PANEL,LEFT
390
FILLISTER HD SCREW MOUNTING SHIELD RIGHT 5X16
390
HEXALOBULAR BOLT BRACKET TO TRANSMISSION M6X15
400
BRACKET LEFT MAJOR ASSEMBLIES COMP.
400
BRACKET IN MAJ. ASS. COMP. RIGHT
405
CABLE DUCT COVER TO BRACKET RIGHT
405
CABLE DUCT COVER AT LEFT BRACKET
410
NUT VALVE TO BRACKET
410
NUT MOUNTING FRAME TO SUPPORT M6
490
BRACKET REAR RIGHT
510
COVER BACKUP BATTERY
510
BRACKET BATTERY BACKUP
520
COMBINATION NUT TO MOUNTING M6
530
GROUND LINE W SENSOR TO BATTERY
530
BATTERY CABLE NEG. CABLE TO BATTERY
540
BATTERY CABLE POS. POLE
540
BATTERY CABLE ADDITIONAL BATTERY POSITIVE TERMINAL
550
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
560
BRACKET BRACKET TO BATTERY HOLDER
565
SCREW STEERING SHAFT BEARING TO CAB
900
REP.SET CONTACT FRONT PREFUSE BOX SQUIB 2-PIN 0.5MM2,F32, ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
