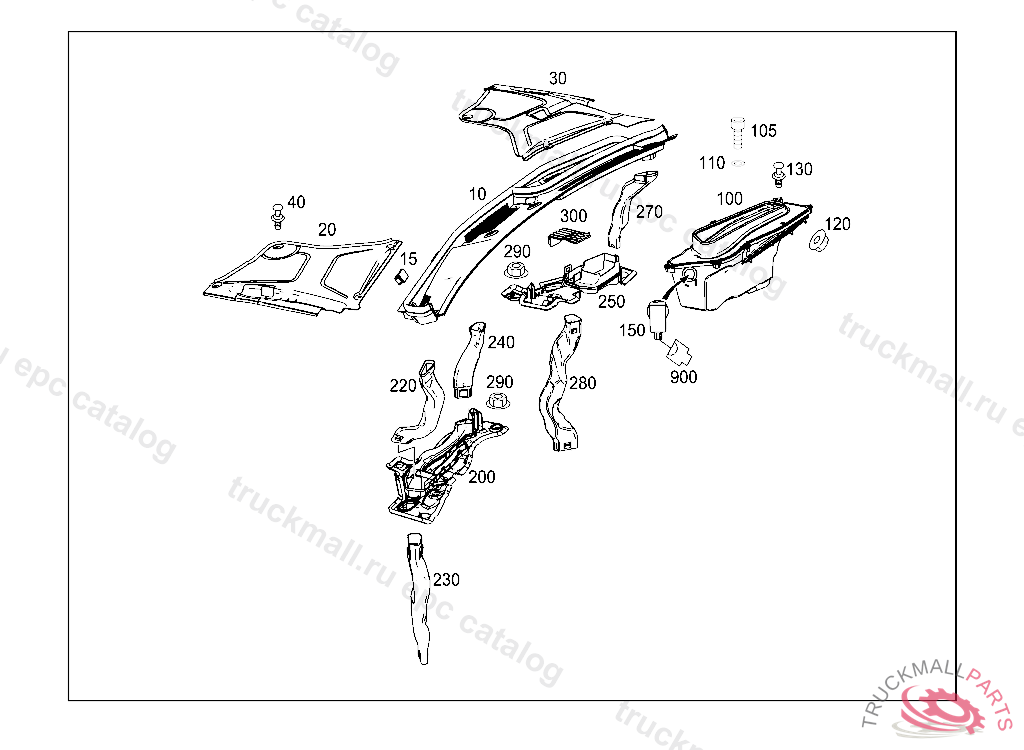

Поз.
Артикул
Описание
10
WATER BAFFLE
10
WATER BAFFLE
15
CONSOLE DRIVER'S SIDE
15
CONSOLE CO-DRIVER'S SIDE
15
CONSOLE CO-DRIVER'S SIDE
20
COVER, MAJ. ASSY CMPRTM. LEFT
20
COVER, MAJ. ASSY CMPRTM. LEFT
30
COVER, MAJ. ASSY CMPRTM. RIGHT
30
COVER, MAJ. ASSY CMPRTM. RIGHT
40
EXPANSION RIVET BRACKET MOUNTING
100
RADIATOR TANK
100
RADIATOR TANK
100
RADIATOR TANK
105
HEXALOBULAR BOLT HEIGHT ADJUSTMENT,LEFT M8X16
110
WASHER SPARE WHEEL MOUNTING
120
NUT , Replaced By: N913023006001
130
RIVET BUSHING AND LEVER TO CAB
150
AIR QUALITY SENSOR WATER TANK
200
DRAIN PIPE LEFT
200
DRAIN PIPE LEFT
220
DRAIN PIPE LEFT
220
DRAIN PIPE LEFT
230
DRAIN PIPE WHEEL ARCH, DRIVER SIDE
230
DRAIN PIPE WHEEL ARCH, DRIVER SIDE
240
DRAIN PIPE CENTRAL
240
DRAIN PIPE CENTRAL
250
DRAIN PIPE CO-DRIVER'S SIDE
250
DRAIN PIPE CO-DRIVER'S SIDE
270
DRAIN PIPE CO-DRIVER'S SIDE
270
DRAIN PIPE CO-DRIVER'S SIDE
280
DRAIN PIPE WHEEL ARCH, PASSENGER SIDE
280
DRAIN PIPE WHEEL ARCH, PASSENGER SIDE
290
NUT VALVE TO BRACKET
300
BRACKET LINES
900
PIN BUSHING HOUSING. PLUG SOCKET SENSOR TO WHEEL HOUSING,3-POLE
