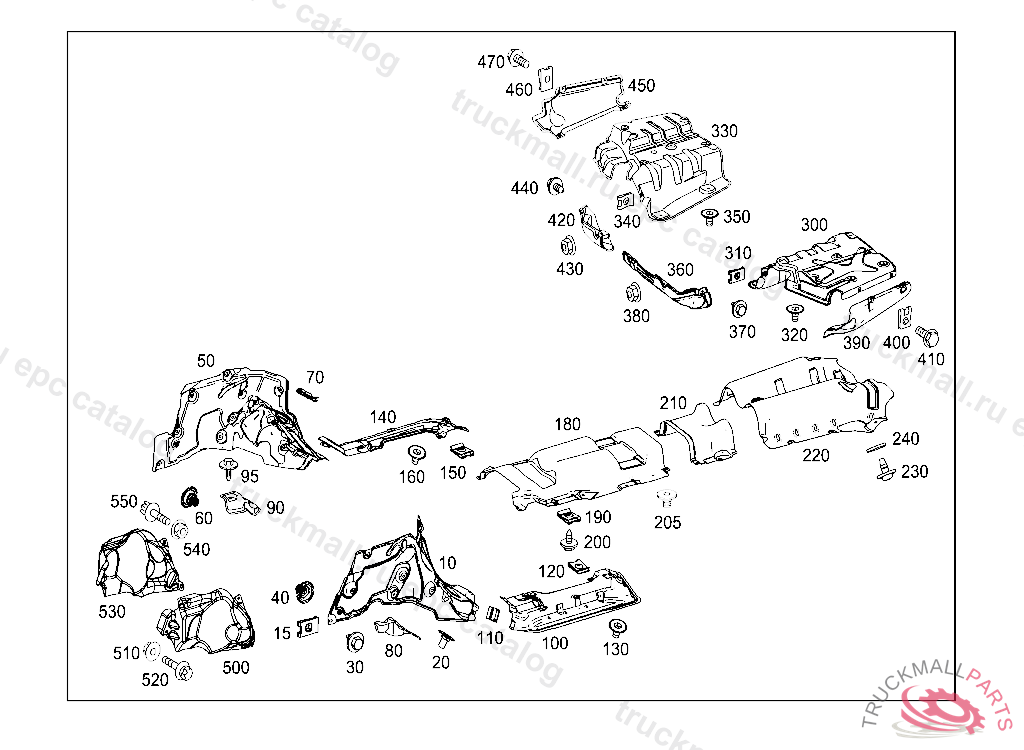

Поз.
Артикул
Описание
10
SHIELDING AT LEFT SIDE MEMBER
10
SHIELDING AT LEFT SIDE MEMBER
20
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
30
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
40
HEXAGON NUT W COLLAR BRACKET MOUNTING
50
SHIELDING AT RIGHT SIDE MEMBER
50
SHIELDING AT RIGHT SIDE MEMBER
60
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
70
HEXAGON NUT W COLLAR BRACKET MOUNTING
80
SHIELDING LEFT INSIDE
90
SHIELDING RIGHT INSIDE
95
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
100
SHIELDING TO MAIN FLOOR LEFT
110
CLIP TAIL LAMP CABLE HARNESS TO REAR LID
120
LOCK RIGHT PANELLING TO SIDE MEMBER
130
HEXAGON NUT W COLLAR BRACKET MOUNTING
140
SHIELDING FLOOR,RIGHT
150
LOCK RIGHT PANELLING TO SIDE MEMBER
160
HEXAGON NUT W COLLAR BRACKET MOUNTING
180
SHIELDING FRONT CATALYTIC CONVERTOR
190
LOCK RIGHT PANELLING TO SIDE MEMBER
200
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
205
HEXAGON NUT W COLLAR BRACKET MOUNTING
210
SHIELDING CATALYST,REAR
220
SHIELDING UNDER TANK, V 20140131 A 04733420140117 L 20140131
220
SHIELDING UNDER TANK, A 20140117
230
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
240
WASHER AIR VENT FASTENING
300
SHIELDING REAR MUFFLER LEFT
310
LOCK RIGHT PANELLING TO SIDE MEMBER
320
HEXAGON NUT W COLLAR BRACKET MOUNTING
330
SHIELDING REAR MUFFLER RIGHT
340
LOCK RIGHT PANELLING TO SIDE MEMBER
350
HEXAGON NUT W COLLAR BRACKET MOUNTING
360
SHIELDING TO REAR MUFFLER, LEFT FRONT
360
SHIELDING TO REAR MUFFLER, LEFT FRONT
370
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
380
HEXAGON NUT W COLLAR BRACKET MOUNTING
390
SHIELDING REAR MUFFLER, LEFT, OUTER
400
LOCK RIGHT PANELLING TO SIDE MEMBER
410
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
420
SHIELDING TO REAR MUFFLER, RIGHT FRONT
420
SHIELDING TO REAR MUFFLER, RIGHT FRONT
430
HEXAGON NUT W COLLAR BRACKET MOUNTING
440
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
450
SHIELDING REAR MUFFLER, RIGHT, OUTER
460
LOCK RIGHT PANELLING TO SIDE MEMBER
470
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
