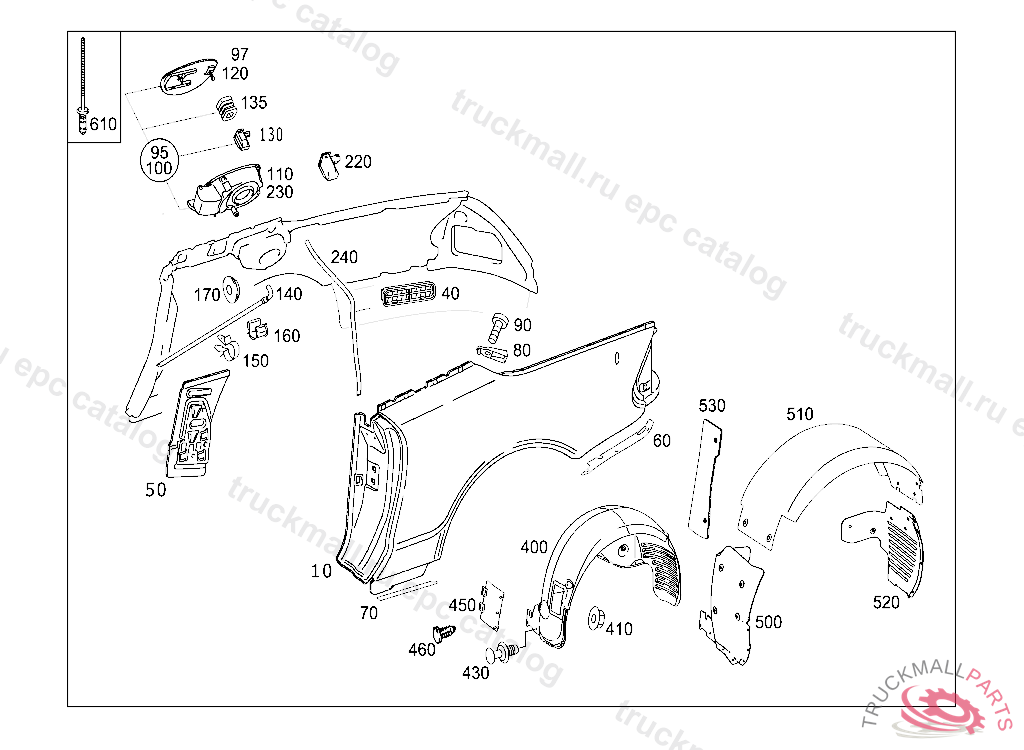

Поз.
Артикул
Описание
10
REAR FENDER RIGHT
10
REAR FENDER LEFT
10
REAR FENDER LEFT
10
REAR FENDER RIGHT
40
FLAP REAR LEFT
40
FLAP REAR RIGHT
50
END PIECE B-PILLAR ON THE RIGHT
60
INTERMEDIATE LAYER TO BUMPER LEFT, REAR
60
INTERMEDIATE LAYER TO RIGHT BUMPER, REAR
70
INTERMEDIATE LAYER TO COVER LEFT, REAR
70
INTERMEDIATE LAYER TO COVER RIGHT, REAR
80
BUFFER TO FENDER LEFT
90
SCREW FOLDING TOP LOCK,FRONT RIGHT
95
FLAP PARTS KIT
97
TANK FLAP
100
RECESS FILLER NECK, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT230L9000 COLORLESS
110
TANK LOCK
120
PANELLING TANK FLAP, 9999QFT230L9000 COLORLESS
130
EJECTOR TANK FLAP
135
SEAL TANK FLAP
140
HOSE TANK FILLER NECK DRAIN PIPE
160
CLIP
170
GROMMET ON REAR END FLOOR
220
EJECTOR TANK FLAP
230
RECESS FILLER NECK
240
HOSE TANK FILLER NECK DRAIN PIPE
400
COVER REAR RIGHT, F 14596520080331809
400
RIGHT COVER REAR RIGHT, F 13820020070630808
400
LEFT COVER REAR LEFT, F 13820020070630808
400
COVER REAR LEFT, F 14596520080331809
410
NUT COVERING TO CAB FIRE WALL
410
NUT CONTROL UNIT FIXTURE
430
RIVET COVERING TO SIDE MEMBER
430
RIVET AIR CLEANER TO AIR BAFFLE, ELIMINATED,NO LONGER REQUIRED
450
COVER REAR INSIDE RIGHT
460
STOP PLUG BRAKE CABLE
500
COVER LEFT FRONT WHEELHOUSE
500
COVER WHEELHOUSE, FRONT RIGHT
510
COVER CENTRAL RIGHT
510
COVER CENTRAL LEFT
520
COVER RIGHT REAR WHEELHOUSE
520
COVER LEFT REAR WHEELHOUSE
530
COVER REAR WHEELHOUSE
610
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
